Benchtop bioreactor for research and development
Achieve precise control over fermentation and cultivation processes with advanced benchtop bioreactors, enabling groundbreaking research and development in biotechnology across small and scalable operations.
Cultivates and Monitors Cell and Microbial Cultures

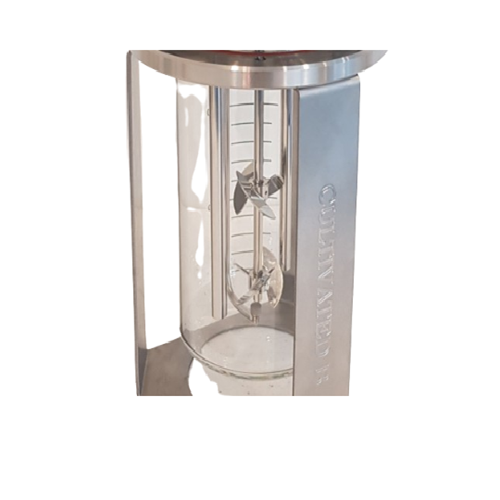

The AUXO V® from n!Biomachines is a versatile benchtop bioreactor engineered for precision in biotechnological applications. It excels in cultivating and monitoring both cell and microbial cultures for industries including biotech and pharmaceuticals. With capacities ranging from 1 to 200 liters, it utilizes advanced sensors for precise control of temperature, pH, and oxygen levels, which are crucial for experimental accuracy. The integration of a Siemens PLC and touch-screen controls facilitates seamless automation and remote monitoring, streamlining operations in research labs. Equipped with stainless steel vessels at larger scales, it ensures durability and ease of sterilization, adhering to stringent industry standards. Customizable options accommodate a wide range of processes like fermentation and sampling, supported by engineering expertise to develop tailored solutions for innovative bioprocessing.
Benefits
- Enhances process precision and reliability with advanced sensory control for optimal culture conditions.
- Facilitates seamless scaling from lab to pilot-scale, ensuring efficient transition and reduced time to market.
- Offers customizable configurations to meet diverse bioprocessing requirements, promoting flexible research adaptability.
- Reduces overhead costs with efficient space utilization and robust design tailored for compact laboratory settings.
- Enables rapid experimentation and data-driven optimization through sophisticated data monitoring and analysis tools.
- Applications
- Cell culture,Nutraceuticals,Microbial culture,Biopharmaceuticals,Enzymes,Cultivated meat,Alternative protein
- End products
- Plant-based protein isolates,Mammalian cell cultures,Industrial enzymes,Monoclonal antibodies,Yeast cultures,Probiotics supplements,Lab-grown meat
- Steps before
- Preparation of culture medium,Inoculation of microorganisms or cell lines,Calibration of sensors,Configuration of cultivation program
- Steps after
- Data analysis and optimization,Harvesting of cultured product,Sterilization,Cleaning in place (CIP) or Sterilization in place (SIP)
- Input ingredients
- mammalian cell lines,avian cell lines,fish cell lines,bacteria,yeast,culture media,oxygen,CO2,N2,compressed air
- Output ingredients
- high-density fermentation,protein production,yield optimization,biological processes insights,cultivated meat
- Market info
- Culture vessel sizes
- 1L,2L,3L,5L,7L,15L,50L,100L,200L
- Material
- Glass (1L-15L),Stainless steel (15L-200L)
- Multi-use capability
- Yes
- Impeller blades
- Rushton,marine,pitched-blade
- Sterilization systems
- CIP/SIP
- Sensors
- Hamilton DO/O2,Hamilton pH,Temperature Pt 100
- Oxygen sensor resolution
- 0.1% resolution
- PH sensor range
- 5 – 8 (0.1 resolution)
- Temperature sensor range
- 0 – 100°C (0.1°C resolution)
- Fluid pumps
- High precision Watson Marlow,6-8 peristaltic pumps
- Pump speed
- 0-600 RPM
- Controller
- Siemens PLC
- Interface
- Touch panel 10’’
- Gas control valves
- 4 valves for compressed air,oxygen,CO2,and N2
- Software
- Pre-configured cultivation programs
- Monitoring
- Web-based remote monitoring
- Precision control environment
- Temperature,pH,oxygen levels
- Automation level
- PLC / Touch screen
- CIP/SIP
- CIP available for larger vessels
- Changeover time
- Customizable configurations for quick setup
- Advanced data monitoring
- Web-based remote monitoring
- Air control
- 4 gas control valves (air,oxygen,CO2,N2)
- Batch vs. continuous operation
- Batch
- Biological compatibility
- Yes
- Cleanability
- Easily maintained in a sustainable way
- Corrosive resistance (e.g. acids)
- Stainless steel option
- Density/particle size
- 0.5–2.5 g/cm³
- Cultivation Options
- Mammalian,Avian,Fish,Bacteria,Yeast
- Machine footprint
- Compact design for limited lab space
- Vessel size
- 1L,2L,3L,5L,7L,15L,50L,100L,200L
- Material
- Glass (1-15L) / Stainless Steel (15-200L)
- Multi-use capability
- Yes,for cost optimization
- Impeller types
- Rushton,marine,pitched-blade
- Sterilization options
- CIP/SIP for larger vessels
- Control Panel Type
- Touch panel 10’’ / Touch screen / Removable
- Material Choice
- Glass or Stainless Steel
- Gas Control Valves
- 4 valves for compressed air,oxygen,CO2,and N2
- Sensors
- Hamilton DO/O2 and pH,temperature,foam,glucose,lactate
- Pump Configuration
- 6-8 high precision pumps,Watson Marlow technology
- Software
- Pre-configured cultivation programs
- Configuration Size
- 1L to 200L
