Batch dissolver for sugar or dextrose

Efficiently dissolve crystalline substances like sugar and dextrose with precision, enhancing the quality of liquid products and enabling seamless integration into diverse food and beverage production lines.

Dissolves and Mixes Crystalline Bulks Efficiently

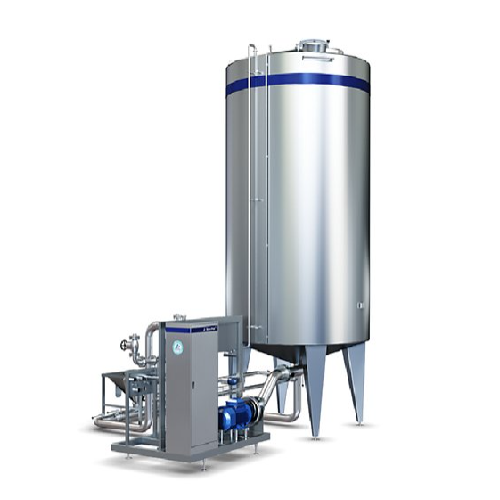

The Tetra Pak® Batch Dissolver is engineered to streamline your production by dissolving crystalline bulks like sugar and dextrose efficiently. Utilizing injector and radial jet mixer technology, it ensures uniform mixing for applications ranging from flavored milk to infant formula. Its large-capacity dissolving tanks, adjustable between 5,000 to 30,000 liters, cater to various production demands. Designed for batch operations, it integrates seamlessly with upstream and downstream processes, enhancing workflow efficiency. Its robust construction supports diverse applications, including dairy, beverages, and sauces, while ensuring compatibility with solid, liquid, and powder product types. For enhanced operational control, it offers automated solutions tailored to your specific production requirements.

Benefits

  • Enhances processing efficiency with seamless dissolution of large crystalline bulks.
  • Reduces operational costs through energy-efficient radial jet mixer technology.
  • Adapts to varying production volumes with customizable tank capacities.
  • Simplifies integration into existing lines for diverse food and beverage applications.
  • Maintains product quality with consistent mixing and minimized contamination risk.

General


Applications
Sauces,Cheese,Infant formula powder,Tomato products,Dairy,Food,Soups,Non-food products,Desserts,Ice cream,Still drinks,Plant-based products,Milk powder,Powder,Juice,Whey processing,Nectar,Dips,Dressings
End products
0,Dextrose solutions,Sugar syrups,Skimmed milk powder,Vinaigrette,Baby formula,Custards,Ice cream base,Soy milk,Mozzarella cheese,Protein powder,Mayonnaise,Whey protein concentrate,Creamy soups,Tomato paste,Flavored milk,Tomato ketchup
Steps before
Ingredient Handling,Bulk Material Preparation,Pre-Mixing
Steps after
Storage,Quality Control,Filling,Packaging
Input ingredients
crystalline bulks,sugar,dextrose,dry ingredients,high volumes
Output ingredients
dissolved liquid,sugar solution,dextrose solution
Market info
Tetra Pak is renowned for providing innovative packaging solutions, specializing in carton packaging for the food and beverage industry. It is esteemed for high-quality, sustainable, and efficient processing and packaging equipment on a global scale.

Technical Specifications


Capacity
5,000-30,000 liters
Batch vs. continuous
Batch
Automation
Equipped with radial jet mixer
Maximum liquid volume
250 liters

Operating Characteristics


Working mechanism
Injector and radial jet mixer
Batch operation
Discontinuous
Capacity range
5,000–30,000 liters
Control system
PLC-controlled

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Dissolving tank capacity
5,000–30,000 liters
Tank shape
Cylindrical
Footprint
Customizable based on capacity
Control panel type
Integrated with injector and radial jet mixer
Discharge method
Radial jet mixer

Custom Options


Integration possibilities
Injector and radial jet mixer technology
Capacity range
5'000-30'000 liters
