Bag-in-box filling system for packaging efficiency

Streamline your packaging process by integrating filling and boxing in one seamless step, reducing time and minimizing manual handling for enhanced operational efficiency.

Automates Bagging and Boxing in One Step

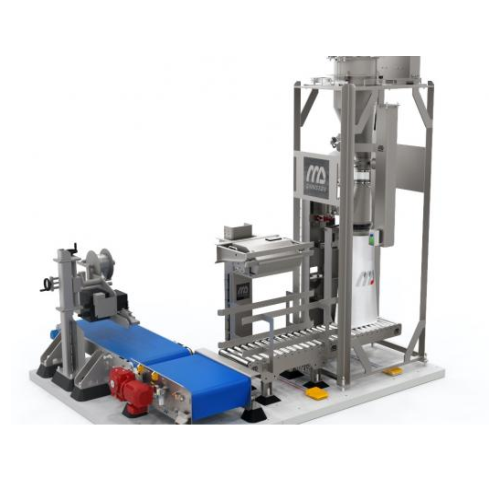

The Bag-in-Box Filling System from Dinnissen is designed to seamlessly integrate bagging and boxing into a singular, automated operation, addressing the challenges of time-consuming manual packing. It uniquely vibrates bags flat before automatic placement into boxes, suitable for food, dairy, pharma, and chemical applications. This system efficiently packs up to 60 bags per hour, catering to businesses handling pasta sauce sachets to pigment powder boxes. Dinnissen ensures flexibility with both manual and automatic models, utilizing minimized components for low-capacity operations while offering full automation for high-speed production. Constructed with durable materials, this system supports varied bag types, maintaining operational efficiency and ease of use. Tailored designs and in-house testing further enhance its fit within diverse processing lines. With modular construction, it complements your packaging operations, meeting industry standards for quality and efficiency.

Benefits

  • Streamlines packing operations by combining bagging and boxing, reducing manual tasks.
  • Increases production efficiency with a throughput of up to 60 bags per hour.
  • Adapts to various industrial needs with customization options for different bag types and sizes.
  • Enhances operational flexibility with both automatic and manual models.
  • Ensures seamless integration into existing production lines with modular design.

General


Applications
Food,Chemicals,Feed,Pet food,Pharma,Minerals,Aquafeed,Dairy
End products
Canned pet food sachets,Pigment powder boxes,Powdered milk bags,Protein shake pouches,Pasta sauce sachets,Mineral supplement pouches,Fertilizer bags,Fish feed bags
Steps before
Conveying,Feeding,Weighing,Mixing,Grinding
Steps after
Labeling,Packing,Transporting
Input ingredients
empty bags,boxes
Output ingredients
filled bags,sealed bags,labeled boxes
Market info
Dinnissen is renowned for its expertise in process technology, specializing in innovative solutions for powder handling, mixing, and bulk materials processing for various industries, including food, feed, and chemicals, with a reputation for quality and custom engineered solutions.

Technical Specifications


Automation
Fully automated
Capacity
Up to 60 bags per hour
Bag type
Smaller bags than Big Bags,e.g.,25 kg
Filling method
Automatic placement and filling
Filling speed
Immediate placement in boxes
Design
Modular design
Testing
Designed,built,and tested in-house

Operating Characteristics


Automation level
Manual / PLC / SCADA
Batch vs. continuous operation
Batch / Inline Continuous
CIP/SIP
CIP 121°C / SIP 135°C
Cleaning method
CIP / Manual
Energy efficiency
0.5–2 kWh/kg moisture

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Compact footprint
Yes
Control panel type
PLC
Discharge method
Automated Conveyor
Machine footprint
Modular Design
Bag size
Up to 25 kg

Custom Options


Control panel type
HMI / Touchscreen / Manual
Integration possibilities
SCADA / ERP System
Modular design
Yes
Compact footprint
Space-efficient setup
Operator role customization
Manual / Automated
