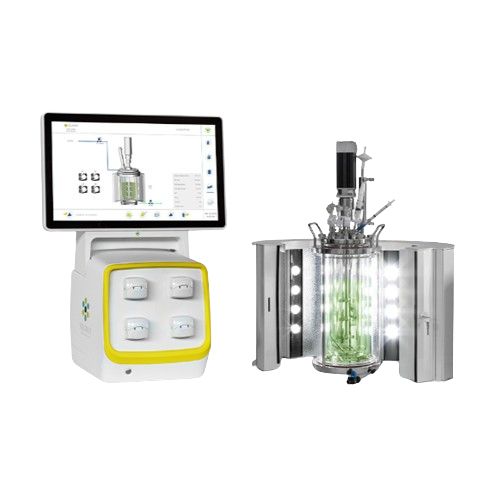

Autoclavable photobioreactor for microalgae and bacteria cultivation

Optimize the growth of phototrophic organisms with this advanced photobioreactor, ideal for precise environmental control and efficient cultivation processes, ensuring high yields and quality end-products.

Cultivates and Ferments Phototrophic Organisms

The ELARA ST from Solaris Biotech is a versatile stirred photobioreactor designed for precise cultivation and fermentation of phototrophic organisms like microalgae and bacteria. It employs a jacketed, borosilicate glass vessel and offers multiple configurations with Rushton, Marine, or Pitched-Blade impellers, as well as Toro and Sintered spargers. Suitable for batch, fed-batch, and continuous operations, it is ideal for producing spirulina powder, astaxanthin extract, and probiotics in nutraceutical, cosmeceutical, and food industries. The unit integrates seamlessly with existing production lines via Modbus digital sensors, offering control over temperature, pH, and gas mixing with up to five TMFC or solenoid valves. Additionally, the ELARA ST features a dynamic LED module for variable light exposure, crucial for simulating natural conditions. Process control is enhanced by Solaris’ SCADA software, LEONARDO 3.0, which supports remote operation and simultaneous management of up to 24 units. The removable glass jacket improves thermal efficiency and cleaning, ensuring minimal downtime. Optional analog input/output expansions allow further customization to meet specific production requirements.

Benefits

  • Enhances productivity with automated and remote operations, reducing manual intervention.
  • Minimizes energy consumption through efficient motor control and optional analog connections.
  • Adapts to various production scales with configurable batch, fed-batch, and continuous processes.
  • Improves product quality by providing precise environmental control for optimal organism growth.
  • Eases integration with existing systems via digital sensors and flexible gas mixing strategies.

General


Applications
Food,Cosmeceuticals,Nutraceuticals,Beverage,Biomaterials,Agriculture
End products
Plant-based meat substitutes,Spirulina powder,Probiotic cultures,Biodegradable plastic blends,Astaxanthin extract,Coenzyme q10 cream,Fermented vegetable juice,Algal biofertilizer,Hyaluronic acid serum
Steps before
Inoculation,Media Preparation,Sterilization of Fermenter,Calibration of Sensors,Light Source Setting
Steps after
Harvesting,Filtration,Centrifugation,Drying,Product Purification,Formulation
Input ingredients
microalgae,moss,bacteria,plant cells,nutraceutical ingredients,bioactive ingredients,fermentation substrates,gas inputs (oxygen,carbon dioxide)
Output ingredients
oxygen,metabolic products,nutraceutical products,bioactive compounds,biopolymers,bioplastics,biofertilizers,biopesticides,algae fertilizer
Market info
Solaris Biotech is known for manufacturing specialized engineered-to-order bioprocessing equipment, including fermenters and bioreactors, with a strong reputation for innovation, quality, and customization capabilities in the biotechnology and pharmaceutical markets.

Technical Specifications


Total volume
014 L
H/D ratio
3
Impeller type
Rushton/Marine/Pitched-Blade
Sparger type
Toro/Sintered
Measurement and control options
Temperature,pH,dO2,dCO2,redox,antifoam,level,conductivity,weight,cell density (viable cells)
Batch process types
Batch,fed-batch,continuous
Motor type
Brushless,1 RPM
Analog I/O connections
0-10 V and 0-20 mA/4-20 mA
Gas mixing
Up to 5 TMFC and/or solenoid valves
Glass jacket
Fully removable and cleanable
Light module
3 vertical bars with 6 dynamic LEDs each
LED total power
180W
LED brightness
6120 lm
Light intensity
Dimmable from 0-100% up to 3000 μmol(photon)/m2

Operating Characteristics


Batch vs. continuous operation
Batch / Fed-batch / Continuous
Cleaning method
Fully removable and cleanable glass jacket
Automation level
SCADA
Light intensity control
Automatic and manual
Light spectrum
Selectable
Day-night cycle simulation
Yes
Gas mixing strategies
Up to 5 TMFC and/or solenoid valves

Material Compatibility


Borosilicate glass
Yes
Stainless steel
Yes
Biological compatibility
Yes
Cleanability
Yes


Autoclavable Components
Yes

Physical Characteristics


Total Volume
1-14 L
Vessel Material
Borosilicate Glass
Vessel Shape
3
Impeller Types
Rushton/Marine/Pitched-Blade
Sparger Types
Toro/Sintered
Motor Type
Brushless Motor
Light Module Configuration
3 vertical bars with 6 white dynamic LEDs each
LED Spectrum
2700K - 6500K
LED Power
180W
LED Brightness
6120 lm
Light Intensity
0-100% dimmable
Gas Mixing Strategies
Up to 5 TMFC and/or solenoid valves
Glass Jacket
Fully removable and cleanable

Custom Options


Vessel Size
0-14 L
Impeller Type
Rushton/Marine/Pitched-Blade
Sparger Type
Toro/Sintered
Sensor Integration
Modbus digital sensors
Control Options
Temperature,pH,dO₂,dCO₂,Redox
Motor Type
Brushless motor
Gas Mixing Strategies
Up to 5 TMFC and/or solenoid valves
Light Module
3 vertical bars with 6 LEDs each
Light Spectrum and Intensity
Selectable and Dimmable 0-100% up to 3000 μmol(photon)/m²
Software Integration
LEONARDO 3.0 SCADA software
Data Management
Remote access via PC,tablet,or smartphone
Integration with External Systems
Up to 4 analog input/output connections
