Aseptic filler for fruit juice and puree

Ensure optimal product safety and quality with this aseptic filler, designed to handle everything from delicate fruit juices to complex tomato pastes with precision and reliability.

Fills and Sterilizes Liquid and Solid Products

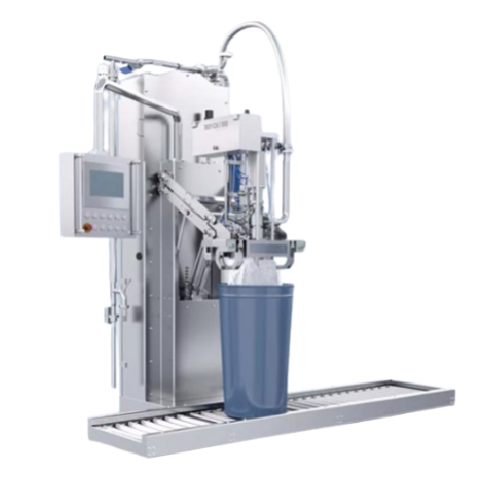

The Aseptic Filler CALIPSO/1 EA-1C-D from Tropical Food Machinery offers an integrated approach to aseptic filling, perfectly suited for industries ranging from food and beverage to dairy and fruit processing. This equipment features a single aseptic filling head with steam sterilization, capable of handling pre-sterilized bags into drums up to 220 liters, ensuring compliance with FDA safety standards. The filling process is controlled by a PLC microprocessor, automating sterilization, filling, and CIP washing—minimizing manual intervention and optimizing efficiency. With applications including fruit juices, purees, creams, and sauces, and a filling capacity of up to 6,000 liters per hour, the system is versatile and robust. The use of PT100 probes ensures precise temperature control, while a flow meter facilitates accurate dosage. Durable construction and customization options, such as interchangeable nozzles for different product viscosities, provide flexibility and long-lasting operation. This machine integrates seamlessly into existing production lines, offering an HMI touch-screen interface for easy monitoring and diagnostics.

Benefits

  • Ensures product safety and quality with precise FDA-compliant sterilization.
  • Minimizes manual handling with fully automated filling processes.
  • Supports diverse product types, enhancing production flexibility.
  • Optimizes resource use with real-time process monitoring.
  • Integrates seamlessly into existing lines, reducing setup time.

General


Applications
Jellies,Fruit-based liquids,Sauces,Fruit purees,Milk,Ice cream bases,Fruit juices,Tomato products,Yogurts,Creams
End products
Uht milk,Strawberry jam,Fresh cream,Orange juice,Greek yogurt,Mango puree,Fruit cocktail blend,Gelato base,Tomato paste,Tomato ketchup
Steps before
Extraction,Sterilization,Pasteurization
Steps after
Packing,C.I.P. Washing,Error Management
Input ingredients
fruit juice,juice with pieces of fruit,puree,fruit-based liquid,cream,sauce,jelly,yogurt,milk,base for ice cream,chopped tomato in sauce
Output ingredients
pre-sterilized bags in drums,220 litre drums
Market info
Tropical Food Machinery is known for manufacturing engineered-to-order (ETO) industrial equipment, specializing in fruit and vegetable processing machinery. They are reputed for innovation, quality, and global service in the food processing industry.

Technical Specifications


Capacity
Up to 6,000 l/h
Filling volume
Up to 220 liters
Filling method
Aseptic filling
Automation
PLC-controlled
Cleaning method
CIP
Dimensions (Length x Width x Height)
3600 x 1550 x 3250 mm
Electric power installed
2 kW
Steam Consumption
60 Kg/h
Compressed Air Consumption
500 nl/h
Filling speed (Low viscosity NFC juice – 1” Spout)
27 bags/h (220 l)
Filling speed (Concentrated product – 1” Spout)
4500 l/h
Filling speed (Shredded or product in pieces – 2” Spout)
4500 l/h
Nozzle type
1” for juice,2” for shredded product

Operating Characteristics


Working mechanism
Rotating arms with aseptic filling head
Integrated steps
Sterilization,filling,C.I.P. washing,error management
Automation level
PLC-controlled
Cleaning method
CIP
Batch vs. continuous operation
Continuous
Temperature control
PT100 probes

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Container Size
Up to 220 L
Container Type
Pre-sterilized bags

Physical Characteristics


Machine footprint
3600 x 1550 x 3250 mm
Tank or Drum size
Up to 220 L
Control panel type
HMI touch-screen interface
Discharge method
Steam sterilization with rotating arms

Custom Options


Control panel type
HMI touch-screen interface
