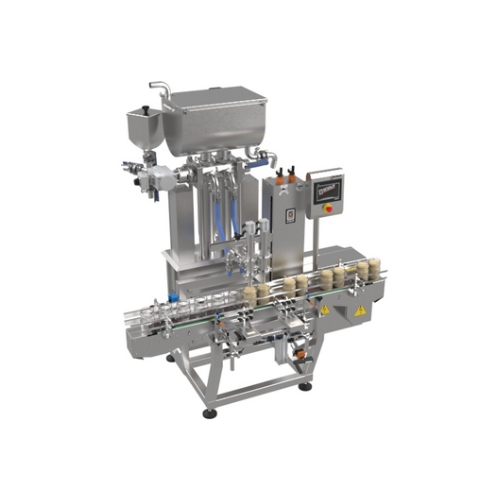

2-head liquid and viscous product filling system

Streamline your filling operations with precision and versatility designed for liquid, semi-liquid, and viscous products—enhancing production efficiency with adaptable packaging options and maintaining consistent quality control.

Fills and Packages Liquids and Viscous Products

The PVD and PDD series from Kulp Makina are specialized two-head volumetric filling machines, designed to meet the diverse needs of industries like food, cosmetics, and chemicals. These machines excel with their pneumatic operation, enabling precise filling and packaging of liquids, viscous products, and those containing particulates. The system utilizes a controlled volumetric filling process, with capacities ranging from 840 to 1600 packages per hour, depending on model and filling volume.

Applications include a wide range of products—from food items like chocolate spread and tomato paste to cosmetic creams and industrial lubricants—demonstrating its versatility. The machines are fully pneumatic and integrate seamlessly into existing production lines, featuring a user-friendly touch screen interface for ease of operation. An automatic level control system synchronizes with the transfer pump, optimizing product priming from an 80-liter hopper, while an anti-dropping system ensures filling accuracy within ± 1%.

Constructed with 316L stainless steel for parts in contact with products, these machines offer high corrosion resistance, meeting stringent food hygiene standards. Optional features such as CIP (Clean-In-Place) systems and double-jacketed hoppers enhance cleaning and efficiency. Additionally, customization options are available, including interchangeable nozzles and adjustable-speed nozzles for handling foamy products, making these machines adaptable for specialized requirements.

Benefits

  • Ensures precise filling accuracy of ± 1%, reducing product waste and ensuring consistency.
  • Supports diverse product types, enhancing operational flexibility across multiple industries.
  • Minimizes cleaning time through easy disassembly and optional CIP system, boosting line efficiency.
  • Increases production versatility with adjustable filling volumes and interchangeable nozzles.
  • Reduces operational costs by optimizing pneumatic and electronic systems for lower energy use.

General


Applications
Household products,Cosmetic products,Biomedical products,Industrial products,Food products,Sanitary products
End products
Gels,Pre-cooked meals,Edible oils,Glaze,Waxes,Engine oil,Pesticides,Peanut butter,Ointments,Pomegranate concentrate,Molasses,Tomato paste,Mashed vegetables,Cake batter,Body wash,Toppings,Foundation,Glycerin,Glass cleaner,Soups,Dough,Cream cheese,Balsamic vinegar,Conditioner,Vaseline,Cream honey,Ayran,Face mask,Yogurt,Syrups,Lotions,Bb cream,Glue (pva),Disinfectant,Tapenade,Chocolate spread,Varnish,Body mask,Hair cream,Hazelnut hash,Mustard,Liquid soap,Paints,Fertilizers,American salad,Vinegar,Ketchup,Cosmetic creams,Veterinary products,Labne,Clotted milk,Ink,Pepper paste,Mayonnaise,Cheese spread,Cosmetic oils,Shampoo,Honey,Body lotion,Anti-freeze,Hydrogen peroxide,Peelings
Steps before
Preparation,Mixing,Blending,Emulsification,Grinding
Steps after
Sterilization,Packing,Labeling,Quality Check
Input ingredients
liquids,semi-liquids,viscous products,products with particles
Output ingredients
chocolate spread,peanut butter,hazelnut hash,honey,cream honey,mayonnaise,ketchup,mustards,sauces,jam,marmalade,tomato paste,pepper paste,cream cheese,cheese spread,labne,yogurt,milk,ayran,clotted milk,molasses,vinegar,balsamic vinegar,syrups,pomegranate concentrate,edible oils,pre-cooked meals,american salad,mashed vegetables,tapenade,glaze,toppings,soups,cake dough,cosmetic oils,cosmetic creams,shampoo,conditioner,liquid soap,bodywash,hair cream,body lotion,peelings,face mask,body mask,waxes,gels,vaseline,foundation,BB cream,ointments,lotions,glycerin,disinfectant,biomedical products,sanitary products,veterinary products,paints,glue,PVA,hydrogen peroxide,ink,fertilizers,pesticides,varnish,household product,engine oil,glass cleaner,anti-freeze
Market info

Technical Specifications


Capacity
840 - 1600 packages per hour
Filling Accuracy
± 1%
Filling Method
Volumetric
Operation Mode
Pneumatic
Filling Volume Range
Min. 20 ml - Max. 5000 ml
Compressed Air Usage
6 bars,600 lt/min
Operating Temperature
From +5ºC to +85ºC with standard sealings,Above 90ºC with special sealing
Electrical Connection
Three phase (380v / 50-60 Hz)
Nozzle Features
Anti Dropping System
Automation
User friendly touch screen interface

Operating Characteristics


Working mechanism
Pneumatic and electronic
Automation level
User-friendly touch screen interface
Batch vs. continuous operation
Batch
CIP/SIP
Optional CIP suitable cleaning system
Anti-dropping system
Integrated on filling nozzles
Container Compatibility
No container-No fill system
Adjustability
Volume adjustment via handwheel
Adaptability
Adjustable speed diving nozzle

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm


Food Hygiene Standards
Compatible

Physical Characteristics


Machine Footprint
2 meters conveyor with adjustable side rails
Feed/Discharge Method
Filling nozzles with anti-dropping system
Control Panel Type
User-friendly touch screen interface
Hopper Size
80 liters hopper
Adjustable Components
Adjustable speed diving nozzle

Custom Options


Control panel type
User-friendly touch screen interface available in different languages
Customizable filling range
Min. 20 ml to Max. 5000 ml
Anti-dropping system
Included in filling nozzles
Adjustable speed diving nozzle
For foamy products
Optional cleaning systems
C.I.P. suitable cleaning system,Double Jacketed Hopper,Agitator,Filling Piston Back Side Cleaning System
Packaging customization
Various packaging sizes and shapes
