Vision guided robotics case packer

Maximize efficiency with vision-guided robotics for versatile case and tray loading, reducing complexity and increasing flexibility in your secondary packaging process, suitable for high-speed environments.

Integrates Vision-Guided Robotic Case and Tray Packing

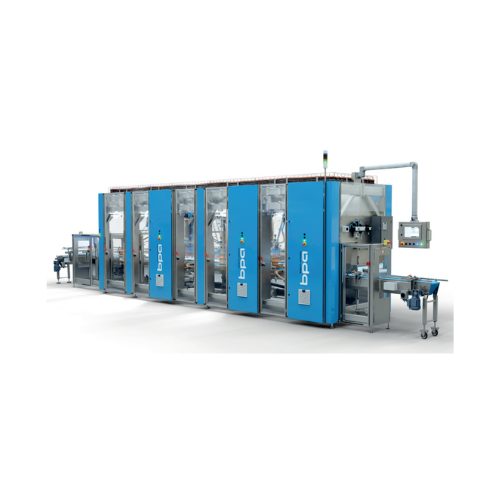

The Spider V Series from BluePrint Automation is a versatile vision-guided robotic case packer that excels in handling diverse secondary packaging tasks across multiple industries. This specialized equipment leverages vision technology to seamlessly pack products into cases and trays, accommodating both horizontal and vertical orientations. Designed to integrate with your existing production line, the Spider V Series features custom infeed systems and product conveyors, ensuring operational flexibility and efficiency. It is particularly suitable for industries such as bakery, confectionery, dairy, and pharmaceuticals, managing products from croissants and yogurt tubs to pill bottles and protein powder jars. BPA’s in-house designed robot cells offer maximum efficiency with optimized throughput for high-speed operations. All components, including 3-D printed end-of-arm tooling, are tailored to your specific processing needs, enhancing adaptability and minimizing downtime. The Spider V Series supports automated, vision-guided operations, ensuring precision and reducing the complexity of managing multiple formats. Furthermore, the system is engineered for low maintenance and lasting performance, providing a cost-effective, robust packaging solution designed to grow with your evolving production requirements.

Benefits

  • Enhances production line flexibility with adaptable vision-guided robotics.
  • Minimizes downtime through custom infeed systems and optimized product handling.
  • Accommodates diverse product formats, reducing the need for multiple machines.
  • Lowers operating costs with efficient automated high-speed operations.
  • Supports a wide range of industries, from food processing to pharmaceuticals, ensuring broad applicability.

General


Applications
Personal care,Protein,Pet food,Snacks,Bakery,Confectionery,Fresh produce,Pharma,Ice cream,Dairy
End products
Protein powder jars,Lotion dispensers,Granola bars,Chicken breasts,Hard candies,Potato chips bags,Cream cheese,Croissants,Pill bottles,Ice cream bars,Dry pet food bags,Popcorn bags,Yogurt tubs,Shampoo bottles,Ice cream tubs,Bread loaves,Beef steaks,Blister packs,Fresh fruit punnets,Chocolate bars,Wet pet food cans,Pre-cut salad bags
Steps before
Primary Packaging,Product Infeed
Steps after
Shipping,Retail Ready Packaging
Input ingredients
bakery products,confectionery items,dairy products,fresh produce,ice cream,personal care products,pet food,pharmaceutical products,protein-based products,snacks
Output ingredients
secondary containers,cartons,cases,trays,multipacks
Market info
BluePrint Automation is known for designing and manufacturing innovative packaging automation systems, specializing in end-of-line robotic case packing solutions for various industries, enhancing operational efficiency and product handling with a strong reputation for quality and innovation.

Technical Specifications


Automation
Vision Guided Robotics
Infeed System
Custom infeed systems
Tooling
3-D printed end-of-arm tooling
Flexibility
High flexibility with vision systems
Packing Process
Horizontal or vertical packing
Product Types
Cartons,cases,containers
Speed
High speed case packing
Format Parts
Reduced different format parts

Operating Characteristics


Vision Guided Robotics
Yes
Versatility
High
Changeover Time
Optimized for Quick Changeover
Automation Level
Integrated Vision Systems
Flexibility in Product Handling
Horizontal/Vertical Packing
Infeed System
Custom
Product Conveyors
Included
3-D Printed End-Of-Arm Tooling
Available
Secondary Packaging Solution
High Speed,Multipack Available

Material Compatibility


Abrasion resistance
High
Cleanability
Easy CIP/SIP compatible
Corrosive resistance
Stainless steel construction
Density/particle size
Varies based on product

Physical Characteristics


Discharge method
Horizontal/Vertical
End-of-arm tooling
3-D printed

Custom Options


Control panel type
Touchscreen HMI
Integration possibilities
Vision systems,3-D printed end-of-arm tooling
Infeed systems customization
Custom product conveyors
End-of-arm tooling
3-D printed
Product handling flexibility
Horizontal and vertical packing
