Vibratory feeder for dosing powders and bulks
Ensure precise feeding of powders and bulk materials with a system that integrates seamlessly into your automated process, achieving accuracy up to 1g per cycle and handling up to 1000 kg/h.
Precise Dosing and Continuous Feeding

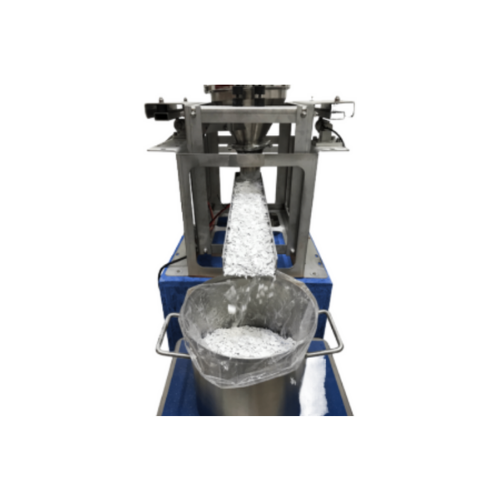

The Dosing Chute / Vibratory Feeder from Volkmann is engineered to streamline your material handling processes. This equipment stands out for its ability to provide precise, gram-accurate dosing and continuous feeding, addressing common challenges in pharmaceutical, chemical, food, and additive manufacturing industries. It operates by integrating a vibratory mechanism for gentle and consistent material flow, making it ideal for handling a wide range of powders and bulk materials. With a processing capacity of up to 1000 kg/h, it can convert discontinuous operations into continuous ones, enhancing productivity. Automation is facilitated through a combination with vacuum conveyor systems and material buffers, ensuring smooth integration into existing production lines. The feeder is available in open or closed hygienic designs, suitable for application-specific needs, and constructed from corrosion-resistant stainless steel (AISI 304 or 316), compliant with international safety standards. Its easy-to-clean design and optional dust-tight construction make it particularly advantageous for environments requiring high hygiene levels or explosion risk prevention. Additionally, this equipment can be customized in dimensions to fit diverse production requirements, supported by Volkmann’s engineering expertise.
Benefits
- Ensures precise material dosing to enhance product consistency and quality.
- Converts batch processes into continuous operations, increasing overall efficiency.
- Minimizes maintenance downtime with easy-to-clean design.
- Supports safe operation in explosion-risk areas with compliant construction.
- Customizable dimensions provide seamless integration into existing production setups.
- Applications
- Chemicals,Metal powders,Fine chemicals,Pharmaceutical tablets,Bulk materials,Food ingredients,Granulates,Powders,Pharmaceutical powders,Additive manufacturing materials,Pharmaceuticals
- End products
- Pharmaceutical capsules,Detergent powders,Polymer pellets,Instant coffee blends,Chocolate powder,Baking powder,Vitamin tablets,Protein shakes,Food color additives,Plastic granules,Confectionery coatings,Iron powders,Aspirin tablets,Lactose powder,3d printing filaments
- Steps before
- Material Preparation,Product Handling,Vacuum Loading,Material Buffering
- Steps after
- Weighing,Packaging,Mixing,Further Processing
- Input ingredients
- bulk materials,powders,granulates,wet materials,product suspended in liquids
- Output ingredients
- accurately weighed bulk materials,continuous feed materials,dosed powders
- Market info
- Volkmann is known for manufacturing vacuum conveying systems, specializing in pneumatic conveying of bulk materials. Their reputation for innovative and reliable equipment solutions in various industries positions them as a trusted provider for engineered-to-order material handling systems.
- Accuracy
- up to 1g per cycle
- Continuous feeding capacity
- up to 1000 kg/h
- Automation level
- Vacuum conveying system with level indicator control
- Cleaning method
- Easy cleaning
- Material Contact Surface
- Stainless steel AISI 304 or AISI 316
- Design Variant
- Open or closed U-profile
- Design Variant
- Closed tubular profile
- Noisiness
- Low noise
- EX area usability
- Can be used in EX areas
- Wear rate
- Low wear
- Optional Features
- Weighing modules,dust-tight design
- Working mechanism
- Vibratory feeder
- Automation level
- PLC / SCADA
- Batch vs. continuous operation
- Continuous
- Cleaning method
- Easy cleaning / Manual
- Feeding process
- Discontinuous to continuous
- Abrasion resistance
- Stainless Steel AISI 304 / AISI 316
- Cleanability
- Easy to clean,open/closed profile
- Corrosive resistance (e.g. acids)
- Stainless Steel AISI 304 / AISI 316
- Surface Material
- Stainless steel AISI 304 or AISI 316
- Feed Capacity
- Up to 1000 kg/h
- Channel Profile
- Open U-profile or Closed tubular profile
- Dimensions
- Length and width customizable
- Cleaning
- Easy cleaning
- Noise Level
- Low noise
- Wear
- Low wear
- Discharge Method
- Clamp connections at inlet and outlet
- Vibration channel type
- Open U-profile / Closed tubular profile
- Length of vibration trough
- Customized to customer requirements
- Width of vibration trough
- Customized to customer requirements
- Clamp connections
- At inlet and outlet
- Material construction
- Stainless steel AISI 304 or AISI 316
- Optional features
- Weighing modules / Dust-tight design / Combined with sieving / Quick-change sieve insert
