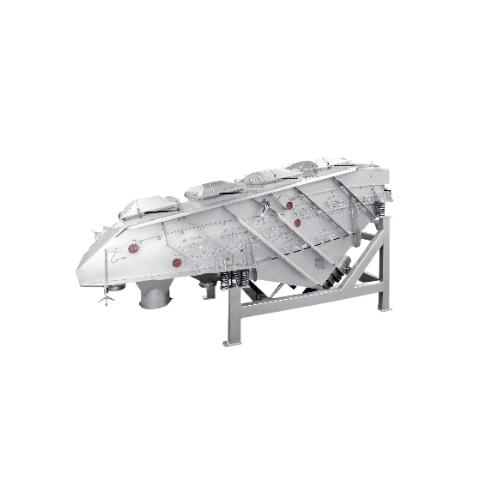

Vibrating sifter for chemical applications
Achieve precise particle separation with this vibrating sifter, ensuring optimal granule consistency and minimal waste for continuous industrial operations.
Separates and Screens Solid and Granular Materials
The GEA Scan-Vibro Sifters offer a comprehensive solution for efficient material separation and screening in various industrial settings. These vibrating sifters are designed for continuous operation, making them ideal for chemical processing, recycling, and food production industries. Specially developed with robust construction, they provide gentle handling of materials, significantly reducing product damage and waste. The equipment operates within a temperature range of -20 to +55 °C, ensuring versatile applicability.
GEA Scan-Vibro Sifters handle a wide array of materials, from minerals and fertilizers to food products like cereals and powdered substances. With screening areas ranging from 0.5 to 8.0 m², they offer customizable throughput capabilities. Designed for easy integration into existing production lines, they feature CIP compatibility and tool-free screen replacement, minimizing downtime during maintenance.
Constructed from stainless steel, these sifters comply with USDA 3-A, EHEDG, and ATEX standards, ensuring durability and safety in corrosive environments. Optional screen cleaning systems and manual or pneumatic screen tensioning further streamline operations. Tailored solutions include various finish grades and configurations to fit specific production needs, supported by GEA’s engineering expertise for bespoke applications.
Benefits
- Minimizes product damage and waste through gentle material handling.
- Tailor-made design enhances production efficiency and adaptability to specific needs.
- Ensures operational safety and compliance with industry standards.
- Reduces maintenance time with easy-to-clean, tool-free screen replacement.
- Flexible screening capacities accommodate a wide range of production scales.
- Applications
- Wood pellets,Industrial applications,Cheese,Fish flour,Seeds,Minerals,Dairy,Cement,Food,Fish,Beverage applications,Household waste,Freeze-dried coffee,Animal feed,Sugar,Pet food,Frozen vegetables,Fertilizer,Chemical,Salt,Recycling,Tea leaves,Meat,Cereals,Vegetables,Poultry,Powders,Brewers' yeast,Pharmaceutical
- End products
- Granulated sugar,Instant coffee powders,Tilapia cuts,Nutritional powders,Ammonium nitrate granules,Processed chicken breasts,Diced carrots,Frozen peas,Packaged tea dust,Fish meal,Concrete mixtures,Aquaculture feed,Cornflakes,Nutritional supplements,Wort sediment separation,Recycled plastic pellets,Paint pigments,Chicken feed granules,Table salt,Compost granules,Minced beef,Cheddar shreds,Protein supplements
- Steps before
- Grinding,Fractionation
- Steps after
- Screening,Dust and water removal,Packing
- Input ingredients
- wood pellets,seeds,minerals,cement,fish flour,fertilizer,household waste
- Output ingredients
- fractionated material,dust and water removed product,consistent product size,reduced waste
- Market info
- GEA is known for its expertise in engineering innovative and sustainable equipment and solutions, focusing on sectors such as food, beverages, pharmaceuticals, and energy, with a reputation for quality, efficiency, and advanced technological applications in industrial processing.
- Operation Temperature Range
- –20 to +55 °C
- Screening Area
- 0.5–8.0 m²
- Screen Cleaning System
- Prevents blinding
- Screen Replacement
- Tool-free
- Material Capacity
- Varies by material
- Vibration Control
- Oscillation,frequency,stroke length
- Energy Efficiency
- High
- Design Type
- Open/Closed
- Motor Type
- Stainless steel
- Mobility
- Support frame on wheels
- Operation type
- Continuous
- Working temperature range
- –20 to +55 °C
- Batch vs. continuous operation
- Continuous
- Cleaning method
- CIP-compatible
- Product handling
- Gentle,minimal damage
- Screen replacement
- Tool-free
- Additional features
- Mobile support frame,open or closed design
- Abrasion resistance
- Yes
- Biological compatibility
- No (not food-grade)
- Cleanability
- Easy clean features
- Corrosive resistance (e.g. acids)
- Available with stainless steel components
- Density/particle size
- 0.5–2.5 g/cm³ / 50–1000 µm (suitable for diverse materials such as cement,seeds)
- Operating Temperature Range
- –20 to +55 °C
- Screening Area
- 0.5–8.0 m²
- Screen Replacement Method
- Tool-free
- Design Options
- Open or Closed
- Frame Type
- Support frame mounted on wheels
- Metal Detectable Screen Mesh
- EN 1.4016/AISI 430
- Material of Construction
- Stainless Steel Motors
- Cover Features
- Large top covers with gas struts
- Customization
- Tailor-made to suit requirements
- Finish Grades
- Polished from 1.3–0.2 µm
- Screen area
- 0.5–8.0 m²
- Finish grade options
- 1.3–0.2 µm
- Screen tensioning system
- Manual / Pneumatic
- Design type
- Open / Closed
- Mobility
- Wheeled support frame
- Compliance
- USDA 3-A,EHEDG,ATEX
- Material detection
- Metal detectable screen mesh
- Motor material
- Stainless steel
- Temperature range
- –20 to +55 °C
- CIP capability
- CIP-compatible,CIP nozzles
