Vertical vacuum dryer for heat sensitive products

Achieve optimal drying and mixing for your heat-sensitive and shear-sensitive products, ensuring high-quality yields with precise moisture and temperature control.

Dries and Mixes Heat-Sensitive Materials

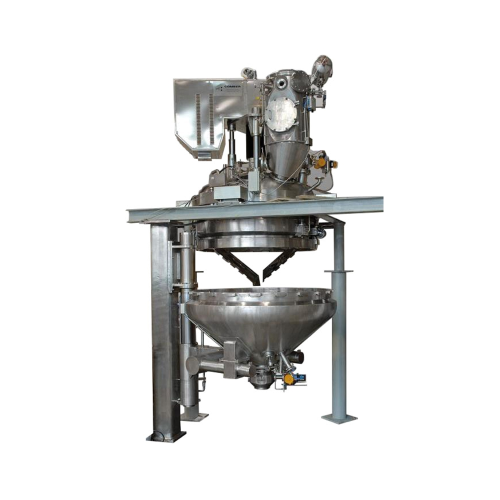

The COMBER Condry® Series TDC 25-15000 by HEINKEL stands out as a conical vacuum dryer specifically designed to handle delicate heat-sensitive and structurally fragile materials. This equipment offers superior drying and mixing capabilities, controlled through its conical bottom design and close-clearance agitator, facilitating full product discharge with minimal residue.

Engineered for diverse applications, it is commonly utilized in the production of active pharmaceutical ingredients, specialty chemicals, and various powder forms such as protein or metal powders. It ensures uniform mixing without lumps, maximizing the heat transfer surface for efficient drying cycles. The user-friendly PLC interface coupled with a touch-screen HMI provides seamless operation and integration into existing process lines.

Constructed using high-grade materials including stainless steels, nickel-based alloys like Hastelloy C 22, and titanium, it guarantees corrosion resistance and durability in harsh chemical environments. It also conforms to cGMP and FDA guidelines, making it suitable for sterile production settings.

The COMBER Condry® is equipped with a fully welded agitator design, avoiding crevices that complicate cleanup, and supports CIP systems for swift and thorough maintenance. Customization options are available to meet specific processing volumes and environmental classifications, ensuring compliance with industry-specific standards.

Benefits

  • Ensures consistent product quality with optimal drying and mixing, preserving material integrity.
  • Facilitates easy and complete product removal, minimizing material waste and operational costs.
  • Complies with stringent GMP and FDA regulations, supporting pharmaceutical and sterile applications.
  • Enhances operational efficiency with advanced automation, reducing the need for manual intervention.
  • Offers robust corrosion resistance, extending equipment lifespan even in harsh chemical settings.

General


Applications
Chemicals,Surface coating,Fine chemicals,Metal/ recycling,Food products,Pharmaceuticals
End products
Protein powders,Metal powders for additive manufacturing,Active pharmaceutical ingredients (apis),Coating powders for industrial use,Specialty chemicals like pigments or dyes,Fine chemical intermediates
Steps before
Filtration,Crystallization,Slurry Preparation
Steps after
Sterilization,Packing,Coating
Input ingredients
heat sensitive products,products with fragile crystal structure,chemical products,pharmaceutical products,food products
Output ingredients
dried products,dry powder,dried crystals,processed chemical compounds
Market info
Heinkel (Comber) is renowned for manufacturing industrial engineered-to-order equipment, specializing in filtration, centrifugal, and mixing solutions. They are recognized for their precision engineering, quality, and ability to tailor solutions for pharmaceutical and chemical industries.

Technical Specifications


Usable volume
25 – 13,500 liters
Design temperature
-10 to 150°C (14 to 302°F)
Design pressure
-1 to +0.45 barg (FV to 6.5 psig),-1 to +6 barg (FV to 90 psig)
Heating and cooling
Integrated heating and cooling unit
Agitator design
Unique design,close clearances

Operating Characteristics


Working mechanism
Conical bottom vacuum dryer
Batch vs. continuous operation
Batch
CIP/SIP
Aseptic/steam sterilizable
Automation level
Control cabinet with PLC,HMI
Integrated steps
Drying and mixing
Cleaning method
CIP

Material Compatibility


Corrosive resistance (e.g. acids)
Stainless steels,Nickel based alloys such as Hastelloy C 22 or Alloy 59,Titanium

Product type Characteristics


Heat sensitivity
Yes
Fragile crystal structure
Yes
Shear force sensitivity
Yes
Product discharge
Full

Physical Characteristics


Footprint
Conical shape
Usable volume
25–13,500 liters
Design temperature
-10 to 150°C (14 to 302°F)
Design pressure
-1 to +6 barg (FV to 90 psig)
Discharge method
Conical bottom for full discharge
Agitator Type
Top supported agitator

Custom Options


Control panel type
PLC,HMI with touch screen,MCC
Integration possibilities
Interface for DCS
Sealing materials
PTFE gaskets,O-Rings in FFKM or FEP encapsulated
Product wetted materials
Stainless steel,Hastelloy C 22,Alloy 59,Titanium
Area classification
EU-Type Examination Certificate,UL approved Class 1,Division 1 or 2
Design pressure
-1 to +6 barg (FV to 90 psig)
Design temperature
-10 to 150°C (14 to 302°F)
Heated areas
All product wetted components,including agitator shaft,arms and blades
Accessories
Dust filter,sampling valve,CIP system,sight glass with vessel light,vacuum system,heating and cooling unit
