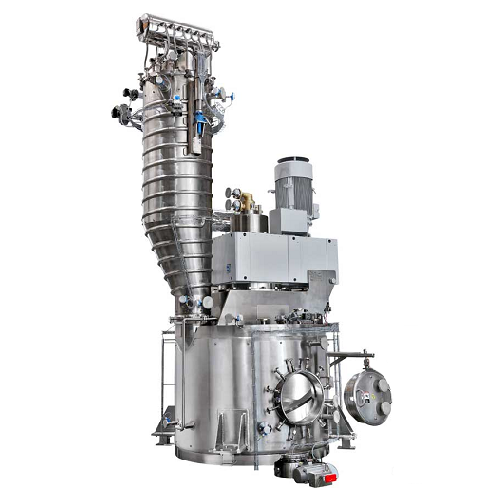

Vertical vacuum dryer and mixing reactor

Achieve precise control over drying and mixing processes with a versatile unit designed for variable filling levels, ensuring optimal conditions for both solid and liquid products.

Dries, Mixes, and Reacts Various Materials

The 3-in-1 Vertical Vacuum Dryer and Mixing Reactor from amixon® is a versatile unit designed to handle drying, mixing, and reaction tasks within a compact footprint. Its spiral mixing blade initiates a three-dimensional flow, providing uniform and gentle processing for materials ranging from moist powders to viscous pastes. This equipment is ideal for industries such as pharmaceuticals, chemicals, and food processing, producing end-products like protein powders, wet baby formula, and ceramic slurry. With the capability to be customized for compliance with FDA and 3-A Sanitary Standards, it ensures operational safety and regulatory alignment. The equipment operates under vacuum or pressure-tight conditions and offers variable filling levels, integrating seamlessly into your production process with minimized energy consumption. Steam, thermal oil, or water heating options allow for precise temperature control across the mixing vessel, arms, and spiral blade. For those requiring a clean processing environment, the amixon® solution meets stringent sanitation and surface finish standards, with options for CIP (Clean-In-Place) systems to facilitate quick and thorough cleaning. Ideal for batch or continuous operations, this single-shaft mixer dryer is engineered for high-speed throughput while maintaining exceptional drying and mixing quality.

Benefits

  • Enhances production efficiency by combining drying, mixing, and reacting in one unit.
  • Reduces energy consumption with optimized heating and variable speed options.
  • Maintains high product quality with gentle processing and precise moisture control.
  • Meets industry regulatory standards, ensuring compliance with FDA and sanitary requirements.
  • Facilitates easy cleaning and maintenance with CIP-ready design.

General


Applications
Food,Powder metallurgy,Feed,Nutritional supplements,Infant formula,Fine ceramics,Plant-based food,Chemical industry,Hygiene and cosmetics,3d printing,Herbs,Household detergents,Spices,Plastics,Pharmaceuticals
End products
Protein powders,Wet baby formula,Plant-based meat emulsions,Ceramic slurry,Pvc compound granules,Cough syrups,Facial creams,Liquid detergent concentrates,Herbal extracts,Adhesive gels,Spice mixes,Vitamin supplement tablets,Metal powders for additive manufacturing
Steps before
Purification,Grinding,Emulsification,Moistening
Steps after
Drying,Deagglomeration,Sterilization,Packing,Coating
Input ingredients
dry materials,moist materials,viscous materials,moist powder,wet suspensions,liquids,paste,dough
Output ingredients
dried materials,deagglomerated materials
Market info
Amixon is renowned for designing and manufacturing high-quality mixing equipment, including powder mixers and vacuum dryers, for various industries such as food, pharmaceuticals, and chemicals, with a focus on precision, hygiene, and innovative mixing solutions.

Technical Specifications


Mixing mechanism
Spiral mixing blade
Flow type
Three-dimensional
Temperature control
Fully controlled
Heating source
Steam / thermal oil / water
Pressure capacity
Vacuum and pressure tight
Space requirement
Very small space
Mixing device position
Top driven
High speed cutting rotors
Optional
Material type compatibility
Dry,moist,viscous
Design compliance
FDA and 3-A Sanitary Standards
Shaft and arms design
Jacketed and heated

Operating Characteristics


Working mechanism
Three-dimensional spiral flow
Integrated steps
Mixing,drying,deagglomeration
CIP/SIP
CIP suitable
Batch vs. continuous operation
Batch
Filling levels
Variable

Material Compatibility


Heat resistance
Thermal oil,steam,water capable
Sterility
FDA and 3-A Sanitary Standards compliant
Viscous materials
Yes
Moisture level
Compatible with dry,moist,and viscous materials
Deagglomeration capability
Yes,with optional rotors
Corrosive resistance
Possible,depending on design

Product type Characteristics


Agglomeration risk
High-speed cutting rotors available for deagglomeration

Physical Characteristics


Machine footprint
Compact
Tank shape
Vertical cone
Feed method
Top feeding
Discharge method
Bottom discharge
Temperature control
Steam,thermal oil,or water
Heating jacket
Yes,jacketed and heated
Spiral mixing blade
Three-dimensional flow

Custom Options


Customization for FDA compliance
Yes
Customization for 3-A Sanitary Standards
Yes
Spiral blade customization
Jacketed and heated
Mixing vessel heating options
Steam,thermal oil,water
Integration of high speed cutting rotors
If required for deagglomeration
Shaft design
Top-driven single-shaft
