Versatile cone mill for uniform size reduction

Achieve precise particle size consistency and gentle deagglomeration across diverse materials, ensuring optimal product quality and efficient downstream processing without excess heat or noise.

Mills and Grinds Materials with Precision

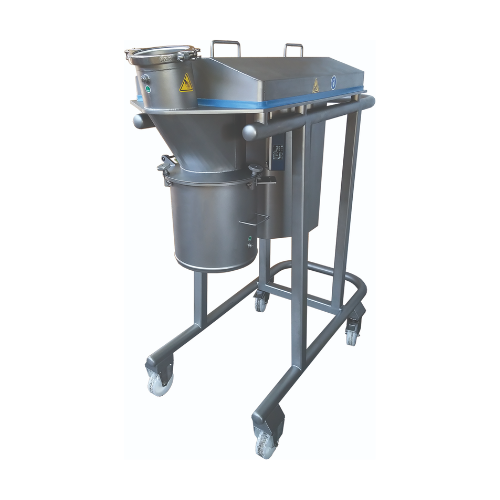

The KEK Cone Mill from Kemutec is a versatile milling machine that stands out for its ability to produce uniform and consistent particle sizes across a wide range of materials. This cone mill is ideal for intermediate sizing in both wet and dry granulation processes, making it suitable for the food, pharmaceutical, and chemical industries. With a gentle, low-energy grinding action, the KEK Cone Mill minimizes noise, heat generation, and dust, significantly reducing air filtration installation costs.

Its advanced design includes variable speed control and multiple drive configurations, offering flexibility in operation. The mill’s adaptable structure allows for integration into continuous production lines, and it can handle a variety of end-products such as dextrose tablets, detergent granules, and dye blends. The KEK Cone Mill supports efficient processing with models catering from bench-top to full-scale production capacities, including an explosion-proof CM800 model. Customized design options and a fully immersible cleaning feature ensure easy maintenance and alignment with specific processing requirements.

Benefits

  • Enhances product quality through consistent size reduction and uniform particle output.
  • Minimizes operational costs by reducing noise, heat, and dust, lowering air filtration requirements.
  • Supports flexible production with variable speed control and multiple drive configurations.
  • Simplifies maintenance and cleaning with fully immersible components and customizable design.
  • Integrates seamlessly into existing production lines, accommodating diverse processing needs.

General


Applications
Soap flakes,Chemical processing,Biscuits,Dyes,Dishwashing tablets,Detergents,Confectionery,Pharmaceutical processing,Food processing,Dairy powders,Spices,Tablets,Breadcrumbs
End products
Dextrose tablets,Crème biscuits,Detergent tablets,Flavored sievings,Pharmaceutical tablets,Potato flakes,Dye blends,Soap granules,Dishwasher tablets,Castor sugar,Dairy powder concentrates,Breadcrumb fractions,Spice mixes,Confectionery creams,Oat flakes
Steps before
Drying,Spray Drying,Mixing,Liquid Injection
Steps after
Granulating,Tablet Pressing,Coating,Deagglomeration,Capsuling
Input ingredients
potato flakes,oats flakes,granulated sugar,dairy powders,dextrose,chocolate biscuits,creme biscuits,confectionery,breadcrumbs,spice mixes,flavours,detergent tablets,soap flakes,color dye powder,wet granular material,dry granular material
Output ingredients
castor sugar,granules,dairy powder fractions,tablet-ready sugar,deagglomerated spices,densed detergent,uniform particle size,rehabilitated chocolate mix
Market info
Kemutec is known for its expertise in manufacturing industrial powder processing equipment, including sifters, mills, and mixers, tailored to meet specific customer needs. They are reputed for delivering high-quality, reliable engineered-to-order solutions.

Technical Specifications


Particle size range
D50 between 500 – 1,500 μm
Speed Control
Variable speed drive
Capacity
Range from lab to full production
Operation Type
Under-driven and top-driven models
Model Sizes
7 sizes from 75 mm to 640 mm
Explosion Proof
10 bar explosion proof for CM800
Drive Arrangement
Belt,gearbox and direct motor
Cleaning Method
Fully immersible grinding chambers
Feed Arrangement
Gravity and inline conveying
Mounting Options
On mobile support frames,masts,and pillars

Operating Characteristics


Working mechanism
Gentle grinding at high speed
Integrated steps
Size reduction and granulation
CIP/SIP
Fully immersible grinding chambers,shaft seals
Batch vs. continuous operation
Batch / Inline Continuous
Variable speed control
Provided
Energy efficiency
Low energy consumption
Changeover time
Quick due to easy access for cleaning
Automation level
Manual / Variable speed control
Cleaning method
CIP / Manual

Material Compatibility


Abrasion resistance
Yes
Cleanability
Easy
Heat sensitivity
Yes
Moisture resistance
Yes
Corrosive resistance
Yes
Fatty material handling
Yes
Density/particle size
0.5–2.5 g/cm³
Agglomeration risk
Low

Physical Characteristics


Machine footprint
Varies from lab models to full production sizes
Model sizes
7 sizes from 75 mm to 640 mm (3″ to 25″)
Feed method
Gravity,Inline Conveying (vacuum and pressure)
Discharge method
Customizable based on application
Drive Arrangements
Top belt drive,Top direct drive,Under belt drive,Under gearbox drive
Mounting Arrangements
On mobile support frames,On masts and pillars
Cone shape
Conical
Drive configuration
Multiple configurations available
Cleaning options
Fully immersible grinding chambers,shaft seals,CIP / SIP spray nozzle

Custom Options


Control panel type
Customizable
Drive Arrangements
Top belt drive / Top direct drive / Under belt drive / Under gear box drive
Feed Arrangements
Gravity / Inline Conveying – both vacuum and pressure
Mounting Arrangements
On mobile support frames / On masts and pillars for lift and swivel capabilities
Cleaning Factors
Fully immersible grinding chambers,shaft seals / Additional CIP / SIP spray nozzle
