Vacuum homogenizer for high-quality mixing and emulsification

Achieve optimal consistency and enhanced product stability with a vacuum homogenizer that excels in mixing, emulsifying, and heating formulations, ensuring precise control over your process and delivering uniform results for a wide range of applications.

Mixes and Homogenizes Under Vacuum Conditions

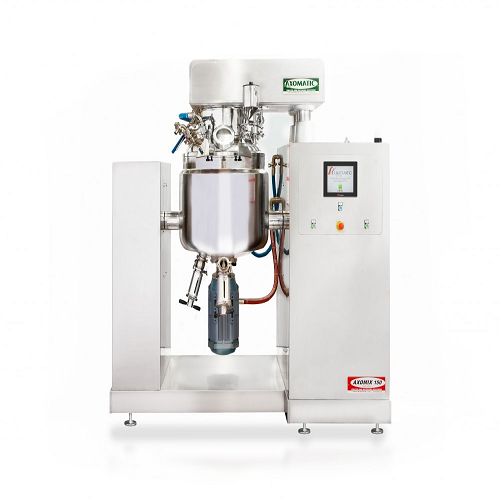

The Axomix 100/300 Undervacuum Homogenizer from Axomatic is an engineered-to-order solution meticulously designed for cosmetics, pharmaceuticals, and personal care product manufacturers. This equipment stands out by combining contra-rotating slow mixing with a high-speed homogenizing turbine (up to 3,000 rpm) to ensure uniform mixing and stable emulsions.

Ideal for producing a range of end-products, including foundation creams, antiseptic ointments, and moisturizing lotions, the Axomix models handle liquids and slurries with ease. Offering hydraulic cover lifting and vessel tilting, it allows efficient discharge of finished products and easy cleaning access. Central bottom valves facilitate vacuum suction of raw materials, enhancing process efficiency.

With a mixing motor of 0.50 Kw and a turbine motor of 3 Kw, along with steam heating capabilities rated at 6 Kw, it delivers optimal performance while maintaining energy efficiency. The machine features an integrated control panel for precise monitoring and control, and it supports optional printing of production data for record-keeping. Constructed with robust materials, it is available with additional options like check weighers and a spray ball cleaning system.

Compliant with industry standards, the Axomix 100/300 ensures high-quality production in batch operations, offering manufacturers customizability and reliable performance throughout the processing cycle.

Benefits

  • Enhances product consistency with precise vacuum mixing and homogenization.
  • Streamlines operations with efficient product discharge via hydraulic vessel tilting.
  • Minimizes energy usage through optimized motor power ratings.
  • Facilitates rapid, contamination-free cleaning with optional spray ball system.
  • Supports diverse batch processing needs with customizable configurations.

General


Applications
Personal care products,Gels,Suspensions,Cosmetics,Ointments,Emulsions,Pastes,Lotions,Creams,Pharmaceuticals
End products
Cold creams,Anti-aging serums,Antiseptic ointments,Face masks,Pain relief balms,Hair conditioners,Aloe vera gels,Toothpastes,Herbal pastes,Skin emulsions,Foundation creams,Vitamin suspensions,Moisturizing lotions,Sunscreens
Steps before
Material Preparation,Ingredient Loading,Vacuum Setup
Steps after
Discharge of Finished Product,Quality Control,Cleaning and Maintenance
Input ingredients
raw material,essences
Output ingredients
finished product
Market info
Axomatic, part of the Marchesini Group, is known for manufacturing high-quality automated machinery for packaging, particularly in the cosmetic, pharmaceutical, and food industries, with a reputation for innovation and customization in engineered-to-order equipment.

Technical Specifications


Mixing motor power
0.50 kW
Turbine motor power
3 kW
Vacuum pump power
0.75 kW
Heating elements power
6 kW
Homogenizing turbine speed
Up to 3,000 rpm
Heating method
Steam

Operating Characteristics


Mixing mechanism
Contra-rotating slow mixing with teflon scrapers
Homogenizing speed
Up to 3,000 rpm
Automation level
Control Panel T,S color
Lifting mechanism
Hydraulic lifting of the cover
Tilting mechanism
Hydraulic vessel tilting
Raw material handling
Central bottom valves for undervacuum
Inspection feature
Inspection window with light
Batch vs. continuous operation
Batch operation
Optional features
Cleaning system,check weighters,printing data

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Material processing
Under vacuum

Physical Characteristics


Discharge method
Hydraulic vessel tilting
Inspection window
With light
Mixing mechanism
Contra-rotating slow mixing with teflon scrapers
Homogenizing mechanism
Turbine,up to 3,000 rpm
Cover lifting method
Hydraulic
Material handling
Central bottom valves for undervacuum raw material intake

Custom Options


Control panel type
Color touch screen
Discharge method
Hydraulic vessel tilting
Cleaning method
Spray balls system
Heating option
Steam
