V shape mixer for solids and powders
Ideal for preserving the delicate structures of fragile materials, this mixer ensures uniform blending while maintaining product integrity, making it invaluable for producing consistent formulations in sensitive applications.
Gently Mixes and Homogenizes Fragile Solids

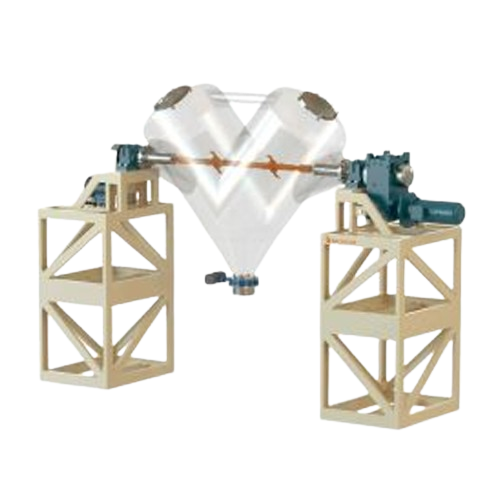

The V Shape (MV) Rotary Mixer from Bachiller offers precise, batch-wise mixing for delicate solids and powders, ensuring product morphology is preserved. Its slowly rotating drum facilitates gentle slippage along the smooth, polished internal walls, ideal for blending sensitive materials in food, pharmaceutical, and chemical industries. With capacities ranging from 200L to 5,000L, the mixer achieves a mixing accuracy of 1:10,000 in minutes, making it suitable for applications from cornflakes to pharmaceutical excipients. The mixer can incorporate liquids during processes and features options like a heating/cooling jacket and vacuum design for drying operations. Constructed with stainless steel, it is compliant with CE safety standards and available in ATEX certified models. Cleaning is simplified with a complete product discharge feature and optional CIP system, ensuring minimal downtime and maintenance. Customizable engineering options provide further flexibility in meeting specific production requirements.
Benefits
- Ensures integrity of fragile materials through gentle mixing, preserving product quality.
- Achieves high precision in blending with up to 1:10,000 mixing accuracy.
- Reduces cleaning time with complete product discharge and optional CIP systems.
- Offers versatile application in diverse industries, from food to pharmaceuticals.
- Supports customization, enhancing integration into specific production needs.
- Applications
- Vitamins,Snacks,Antibiotics,Crystals,Minerals,Pigments,Ibuprofen,Catalysts,Sweeteners,Polymers,Muesli,Caffeine,Spices,Omeprazole,Breakfast cereals,Tea,Peptides,Resin,Amino acids,Phosphates,Gelatin,Metallic powders,Plastics,Baby food,Ready mix,Pharmaceutical excipients,Pharmaceuticals,Colorants,Food additives,Cellulose,Veterinary,Diet food,Apis,Masterbatch,Premix,Soluble coffee,Food preparations,Cephalosporin
- End products
- Infant formula,Anhydrous caffeine,Protein shakes,Potato chips,Generic medications,Curry powder,Muesli clusters,Active pharmaceutical ingredients,Granola bars,Turmeric powder,Epoxy resin,Animal feed supplements,Multivitamin tablets,Polyurethane,Herbal tea blends,Instant coffee,Instant pancake mix,Ibuprofen tablets,Baking premixes,Titanium dioxide,Cornflakes,Amoxicillin,Instant mashed potatoes,Ruthenium catalysts,Calcium carbonate,Cefadroxil,Polyethylene,Peptide supplements,Gummy bears,Omeprazole capsules,Soluble crystals,Polyethylene masterbatches,Sodium tripolyphosphate,L-glutamine,Iron powder,Aspartame,Microcrystalline cellulose
- Steps before
- Purification,Grinding,Drying,Weighing,Solids loading,Dosing
- Steps after
- Formulation installations,Packing,Sterilization,Tablet Pressing
- Input ingredients
- solids,powders,additives,baby food,breakfast cereals,colorants,dextrin,diet food,gelatin,improvers,muesli,ready mix,salads,snacks,soluble coffee,soup,spices,sweeteners,tea,infusions,vitamin complements,catalysts,cellulose,masterbatch,metallic powders,minerals,pellets,phosphates,pigments,plastics,polymers,premix,resin,amino acids,antibiotics,API’s,caffeine,cephalosporin,cosmetics,crystals,feed additives,food additives,ibuprofen,omeprazole,peptides,pharmaceutical excipients,preservatives,saccharine,tables (blend),veterinary,vitamins
- Output ingredients
- mixed additives,blended powders,mixed baby food,combined breakfast cereals,integrated colorants,homogenized dextrin,blended diet food,unified muesli,integrated snacks,uniform soluble coffee,harmonized spices,blended pharmaceutical excipients
- Market info
- Bachiller specializes in industrial engineered-to-order equipment, known for high-quality process equipment in the chemical, petrochemical, pharmaceutical, and food industries. They are recognized for their expertise in designing and manufacturing pressure vessels, reactors, and mixing equipment.
- Capacity
- 200–5,000 L
- Mixing accuracy
- 1
- Operation
- Batch-wise
- Internal polishing
- Ra ≤ 0.6 µm
- External finishing
- Matte or mirror polished
- Liquid addition
- By spraying
- Design
- Pressure/vacuum options
- Automation
- Automatic positioning
- Heating/cooling jacket
- Available
- Choppers
- For mixing intensification
- Product loading
- Through vacuum conveying
- Discharge
- Complete product discharge
- Compliance
- CE marking
- Optional sanitary design
- cGMP,FDA validated
- ATEX execution
- Internal zone 20/0
- Weighting systems
- Available
- Formulation installations
- Available
- Product packing system
- Available
- Mixing mechanism
- Rotary drum
- Operation type
- Batch-wise
- Cleaning method
- Very easy to clean
- Mixing speed
- Slow rotation
- Mixing accuracy
- 1
- Automation level
- Optional automatic positioning
- Density/particle size
- 0.5–2.5 g/cm³ / 50–1000 µm
- Morphology preservation
- Yes
- Product fragility
- High
- Particle size
- Similar
- Cleaning requirement
- High
- Agglomeration risk
- Low
- CE marking
- Yes
- Safety for Machinery Directive 2006/42/CE
- Yes
- CGMP
- Optional
- FDA validated
- Optional
- ATEX execution
- Optional
- Drum Shape
- V Shape
- Capacity
- 200L to 5,000L
- Discharge Method
- Complete product discharge
- Internal Finish
- Mirror polished Ra ≤ 0.6 µm
- External Finish
- Matte or mirror polished
- Internal finish
- Mirror polished Ra ≤ 0.6 µm
- External finish
- Matte or mirror polished
- Liquid injection
- By spraying
- Heating/Cooling
- Jacketed design available
- Design conditions
- Pressure and/or vacuum
- Mixing intensification
- Choppers for lump breaking
- Loading system
- Vacuum conveying system
- Machine positioning
- Automatic
- Sanitary design
- Optional cGMP,FDA validated
