Universal mill for grinding nuts and seeds

Optimize your nut paste production with a high-speed, versatile milling solution that ensures smooth, fine pastes while reducing energy consumption.

Grinds and Mills Nuts into Smooth Pastes

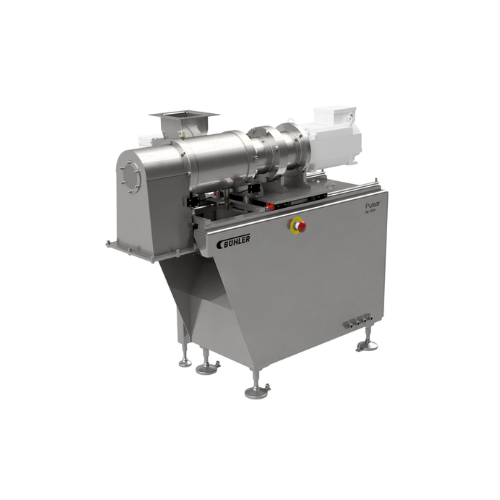

The Pulsar™ Nut and Seed Universal Mill from Bühler Group is engineered for seamless integration into food processing lines, offering exceptional efficiency in producing smooth, high-quality nut pastes and seed butters. This innovative equipment utilizes a high-speed rotating pin system with a corrugated stator, facilitating energy-efficient grinding that preserves flavor and texture. It processes a wide range of applications, such as peanut butter, almond paste, chocolate-nut spreads, and seed butters, making it ideal for food processors, confectionery producers, and food ingredient suppliers.

With a processing capacity capable of achieving fineness between 25 and 40 micrometers, the Pulsar™ equips your operation for high-throughput demands. Its stainless-steel construction ensures both durability and compliance with strict food safety standards. The water-cooled stator maintains product quality by allowing processing at the lowest possible outlet temperature.

Designed for ease of use, the Pulsar™ supports quick product changeovers with minimal waste and low maintenance requirements. The entire grinding process is contained, with optional metal detection for enhanced safety, and features like a linear guide assembly for straightforward cleaning and maintenance. For operations seeking reduced energy consumption, the Pulsar™ offers a significant reduction in carbon footprint by utilizing only 10 to 20 kWh/ton of production, supporting sustainable production goals while delivering superior product output.

Benefits

  • Maximizes production efficiency with fast changeovers and minimal product waste.
  • Reduces energy costs due to highly efficient grinding, consuming only 10 to 20 kWh/ton.
  • Ensures top-tier food safety with fully stainless-steel construction and optional metal detection.
  • Maintains flavor and texture quality with controlled low-temperature processing.
  • Simplifies cleaning and maintenance, minimizing downtime and operational disruptions.

General


Applications
Snacks,Pet food,Confectionery,Nuts,Food ingredients,Spices,Seeds,Nut pastes
End products
Flavored nut pastes,Nut-based confectionery fillings,Sesame seed paste,Chocolate-nut spreads,Cashew butter,Pet food treat pastes,Tahini,Peanut butter,Ground spice blends,Almond paste,Seed butters,Nut-based energy bars,Pistachio cream,Hazelnut spread
Steps before
Dehulling,Sorting,Cleaning,Conditioning
Steps after
Packing,Filling,Decorating,Sterilization,Sensing
Input ingredients
peanuts,hazelnuts,almonds,sesame seeds,cashews,pistachios,nuts,seeds
Output ingredients
smooth paste,tasty paste,nut paste,seed paste,fine paste
Market info
Buhler is renowned for manufacturing advanced process solutions for food, feed, and advanced materials. They are highly regarded for their innovation in milling technology and equipment quality.

Technical Specifications


Grinding speed
High-speed rotating pins
Product changeover time
Minutes without waste
Energy consumption
10 to 20 kWh/ton
Fineness of paste
25–40 micrometers
Grinding chamber material
Stainless steel
Cooling method
Water-cooled stator
Cleaning method
Oil or water

Operating Characteristics


Working mechanism
Corrugated stator and high-speed rotating pins
Changeover time
Fast changeover within minutes
Cleaning method
Oil or water cleaning
Batch vs. continuous operation
Inline Continuous
Energy efficiency
10 to 20 kWh/ton

Material Compatibility


Cleanability
Stainless steel components
Corrosive resistance (e.g. acids)
Stainless steel


Food Safety Standards
Stainless steel contact parts

Physical Characteristics


Machine footprint
Compact design
Material
Stainless steel
Grinding chamber
Stainless steel
Cooling system
Water-cooled stator
Discharge method
Continuous product stream

Custom Options


Integration possibilities
PLC / HMI
Customizable grinding chamber
Stainless steel construction
Cleaning method
Oil or water cleaning
Product changeover capability
Fast changeover
Stator and rotor configuration
Adaptation available
