Tube filling station for plastic, laminate, and aluminum tubes
Efficiently seal and fill various tube materials, ensuring precise volumetric control and consistency for personal care, pharmaceutical, and food products at high speeds.
Fills and Seals Plastic, Laminate, and Aluminum Tubes

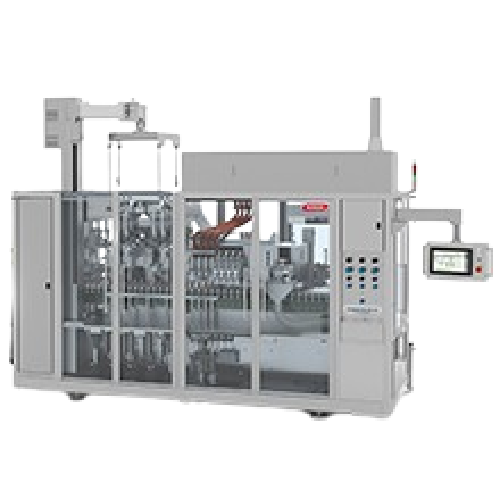

The NF 300 from Norden is a high-capacity tube filling machine designed for efficiently handling plastic, laminate, and aluminum tubes in various sectors, including food, dairy, personal care, chemicals, pharma, and healthcare. With an impressive throughput of 300 tubes per minute, it operates on an intermittent basis, ensuring precise filling and sealing operations. This machine accommodates tube diameters ranging from 16 mm to 40 mm, with a specific capability for oval tubes up to 44 mm in diameter. Its robust design features free stations, allowing integration with additional equipment such as vision systems and laser coding for enhanced operational efficiency.
The NF 300 is particularly suited for filling a wide range of products, from mayonnaise and margarine to toothpaste and medicinal gels, addressing diverse industrial needs. It includes PLC control for seamless integration into existing production lines and offers compliance with strict regulatory standards, including CFR Title 21 and GMP, making it ideal for pharmaceutical and food applications. Designed with energy efficiency in mind, the NF 300 minimizes operational costs while delivering consistent packaging quality. Maintenance is simplified with easy access to machine components and compatibility with centralized CIP systems. Additionally, its customization options ensure that the machine can be tailored to specific production requirements, backed by Norden’s engineering expertise.
Benefits
- Increases production speed with a capacity of 300 tubes per minute.
- Enhances packaging versatility with support for multiple tube materials and sizes.
- Ensures operational precision and consistency through PLC-controlled processes.
- Complies with CFR Title 21 and GMP standards for food and pharmaceutical safety.
- Facilitates seamless integration of auxiliary equipment for customized solutions.
- Applications
- Sauces,Sun care,Men's shaving,Fats,Oils,Cheese,Cosmetics,Dairy,Food,Chemicals,Toothpaste,Condiments,Pharma,Skin,Personal care,Spreads,Hair care,Healthcare,Otc
- End products
- Lip balm,Flavored yogurt tubes,Toothpaste tubes,Liquid detergent,Chili sauce,Anti-aging cream,Mustard,Sunscreen lotion,Men's aftershave gel,Medicinal gels,Antiseptic cream,Hair styling gel,Mayonnaise,Cheese spread,Margarine,Nasal sprays,Moisturizing cream,Topical ointments
- Steps before
- Mixing,Homogenization,Heating
- Steps after
- Quality Control,Vision Inspection,Laser Coding,Packing,Capping,Labeling
- Input ingredients
- plastic tubes,laminate tubes,aluminum tubes,oval tubes,cylindrical tubes
- Output ingredients
- packaged oils,fats,packaged sauces,condiments,packaged spreads,packaged cheese,packaged cosmetics,packaged men's shaving products,packaged toothpaste,packaged skin,sun care products,packaged OTC products,packaged hair care products,packaged personal care items,packaged food,dairy products,packaged chemicals,packaged pharma,healthcare products
- Market info
- Norden Machinery, part of the Coesia Group, is renowned for its expertise in designing and manufacturing advanced tube filling machines, particularly for the pharmaceutical, cosmetics, and food industries, emphasizing precision and high-speed performance.
- Speed
- 300 ppm
- Filling Volume
- 1 ml – 200 ml
- Machine Depth
- 4050 mm
- Machine Height
- 2500 mm
- Machine Length
- 6350 mm
- Machine Weight
- 9500 kg
- Tube Diameter Range
- 16 mm – 40 mm
- Operating Mode
- Intermittent
- Max Pack Diameter
- 40 mm
- Min Pack Diameter
- 16 mm
- Max Pack Length
- 230 mm
- Min Pack Length
- 80 mm
- Automation level
- PLC
- Batch vs. continuous operation
- Intermittent
- Changeover time
- Not specified
- CIP/SIP
- Manual cleaning
- CIP optional
- Cleaning method
- Manual / Optional upgrades available
- Energy efficiency
- Not specified
- Density/particle size
- 0.5–2.5 g/cm³ / 50–1000 µm
- Tube material compatibility
- Plastic / Laminated / Aluminum
- Tube diameter
- Ø16 mm to Ø40 mm
- Tube filling volume
- 1 ml – 200 ml
- Packaging shape
- Cylindrical / Oval
- Product type compatibility
- Food,Dairy,Personal Care,Chemicals,Pharma,Healthcare
- Environment Regulations
- 640/2009/E
- Food Regulations
- CFR Title 21,1935/2004/EC,2023/2006/E
- Safety Regulations
- EN ISO 10218-2,EN ISO 11161,EN ISO 13732-1,EN ISO 13849-1,EN ISO 13849-2,EN ISO 13850,EN ISO 13855,EN ISO 13857,EN ISO 14119,EN ISO 14122 -1 -2 -3 -4,EN ISO 4414,EN ISO 7010,EN 1005-1 -2 -3 -4,EN 12100,EN 349,EN 415-4,EN 547-1 -2 -3,EN 614-1 -2,EN 619,EN 953,IEC 60204-1,IEC 60529,IEC 60825-1,IEC/TS 62046,ISO/TR 14121-2,2006/42/EC,2014/30/UE,2014/35/UE
- Machine footprint
- 6350 mm length x 4050 mm depth x 2500 mm height
- Control panel type
- Not specified
- Integration possibilities
- Vision Systems,Laser coding
