Tablet and capsule diverter
Streamline your tablet and capsule production with precise container filling and flexible configuration for varying output requirements, ensuring seamless integration into existing processes for optimized output.

Diverts and Organizes Tablets and Capsules Continuously

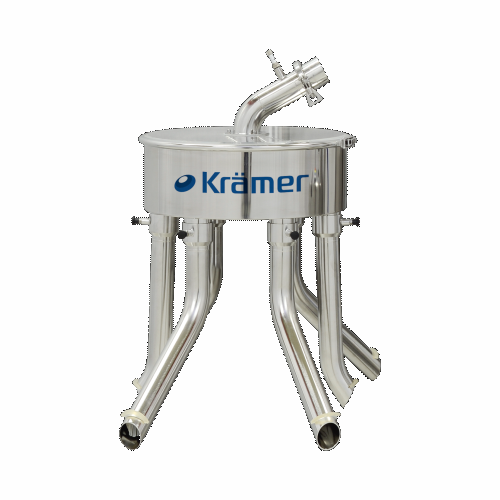

The V4000 Drum Diverter from Krämer AG is an electronically controlled solution tailored for pharmaceutical and nutraceutical manufacturers, ensuring efficient and precise tablet and capsule handling. This diverter allows continuous operation by efficiently diverting tablets and capsules into up to 12 different containers, minimizing downtime and enhancing production flow. Compatible with the KD7015 and KD7035 deduster models, it seamlessly integrates into existing production lines, supporting continuous monitoring and process control either directly by the deduster or linked with tablet presses and capsule filling machines.
The V4000’s design handles a range of products from aspirin tablets to herbal supplement capsules, accommodating varying shapes and sizes with ease. It offers substantial throughput, capable of operating at speeds up to 10,300,000 micro-tablets per hour, and ensures GMP and CE compliance, reinforcing its suitability for pharmaceutical and nutraceutical applications. Built with robust materials like AISI 316L, it withstands corrosive environments, ensuring longevity and reliability. Optional features such as jam sensors and sample collection add further customization, backed by Krämer AG’s engineering expertise and support, to adapt to specific production requirements.
Benefits
- Enhances production efficiency by continuously diverting tablets and capsules into multiple containers with minimal manual intervention.
- Increases accuracy and product integrity with precise, electronically controlled distribution mechanisms.
- Maximizes throughput with the capability to manage up to 10,300,000 micro-tablets per hour.
- Ensures regulatory compliance with GMP and CE standards, promoting safe pharmaceutical production environments.
- Offers robust and reliable operation in corrosive settings with durable construction from AISI 316L materials.
- Applications
- Nutraceuticals,Supplements,Capsules,Pharmaceutical tablets
- End products
- Herbal supplement capsules,Vitamin d capsules,Calcium supplement tablets,Probiotic capsules,Multivitamin tablets,Aspirin tablets,Fish oil supplement capsules,Effervescent vitamin c tablets
- Steps before
- Tablet Pressing,Capsule Filling
- Steps after
- Packing,Sample Collection
- Input ingredients
- tablets,mini/micro-tablets,effervescent tablets,capsules
- Output ingredients
- multiple containers,sample collector
- Market info
- Kraemer is known for designing and manufacturing customized engineered-to-order equipment for industrial applications, leveraging advanced engineering expertise to deliver high-quality, reliable solutions tailored to meet specific client needs in various sectors.
- Discharge sequence
- Electronically controlled
- Number of positions
- Max. 12
- Number of outlets
- 2-4-6-8-10-12
- Power Supply
- 24 VDC
- Peak current
- 1.7 A
- Drive unit technology
- Gear motor
- Weight
- 10-15 kg
- Product inlet
- 2.5" tri-clamp
- Product outlet
- Ø 60 mm
- Protection rating drive unit
- IP65
- Protection rating housing/controller
- IP65
- Processing of tablets
- Ø3-35 mm
- Processing of mini/micro-tablets
- Ø1.5-3 mm
- Processing of effervescent tablets
- Ø25-35 mm
- Processing of capsules
- Nr. 4-00
- Conveying speed mini/micro-tablets <Ø2.5 mm
- 10'300'000 tabs/h
- Conveying speed tablet Ø5 mm
- 6'300'000 tabs/h
- Conveying speed tablet Ø13 mm
- 574'000 tabs/h
- Conveying speed tablet Ø20 mm
- 240'000 tabs/h
- Conveying speed tablet Ø25 mm
- 95'000 tabs/h
- Conveying speed tablet Oblong 16.3 x 7.6 x 5.7 mm
- 770'000 tabs/h
- Conveying speed capsule size Nr. 4
- 300'000 caps/h
- Conveying speed capsule size Nr. 3
- 300'000 caps/h
- Conveying speed capsule size Nr. 2
- 300'000 caps/h
- Conveying speed capsule size Nr. 1
- 300'000 caps/h
- Conveying speed capsule size Nr. 0
- 300'000 caps/h
- Conveying speed capsule size Nr. 00
- 250'000 caps/h
- Automation level
- Automatic
- Batch vs. continuous operation
- Continuous
- Cleaning method
- Manual
- Process control integration
- Controlled by deduster or filling machine
- Jam monitoring
- Sensor at inlet
- Filling level monitoring
- Optional
- Sample collection option
- Yes
- Density/particle size
- 0.5–2.5 g/cm³ / 50–1000 µm
- Compatible equipment
- Deduster models,tablet press,capsule filling machine
- ATEX certification
- ATEX 94/9/EG
- CE compliance
- Yes
- GMP compliance
- Yes
- Number of positions
- Up to 12
- Product inlet size
- 2.5" tri-clamp
- Product outlet size
- Ø 60 mm
- Weight
- 10-15 kg
- Number of outlets
- 2-4-6-8-10-12
