Sugar grinding and recrystallization system
Optimize your sugar production with a system that integrates grinding and recrystallization, ensuring high-quality, shelf-stable products without additives.
Processes and Recrystallizes Sugar for Optimal Quality

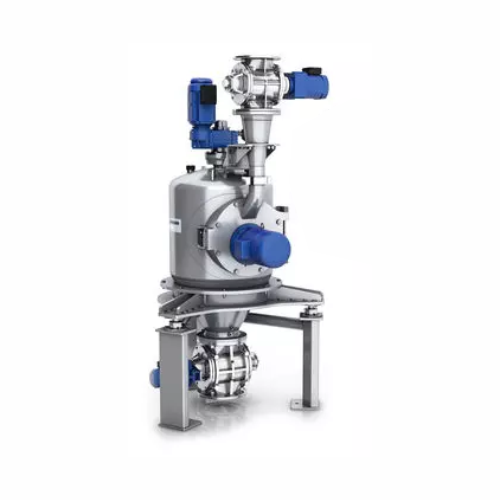

The Sugarplex SX Flow from Hosokawa Alpine is a space-efficient sugar processing system tailored for confectionery and sugar industries. This system combines grinding and recrystallization, utilizing a pressure-shock resistant design for continuous operation without additional filters or fans. Ideal for producing high-quality icing sugar, it achieves fineness values of 99% < 450 µm at throughputs of up to 3 tons per hour. The integrated pin disc design enables precise particle size control and easy cleaning, ensuring minimal downtime and maintenance costs. Applications include food production, pharmaceuticals, and cosmetics, processing materials like sugar, spices, and herbal teas into finely milled powders. Designed with ATEX zone 22 compliance, it features a three-phase motor with speeds up to 145 m/sec, offering efficient energy use through frequency converter adjustments. Constructed from durable stainless steel, it provides robust operation in various industrial environments. Customizable features and engineering support are available to meet specific production requirements.
Benefits
- Enhances product quality with precise particle size control and consistent recrystallization.
- Minimizes operational costs through reduced energy consumption and maintenance needs.
- Streamlines production with compact design eliminating the need for additional filters or cooling equipment.
- Ensures safe operation with ATEX zone 22 compliant construction.
- Facilitates easy integration and customization for diverse processing requirements.
- Applications
- Sugar and sweeteners,Recycling materials,Cosmetics,Lithium-ion batteries,Crop protection agents,Lactose and dairy products,Minerals,Powder coating,Chemicals,Tea and roots,Fertiliser,Luxury foods,Medicinal herbs,Spices,Additive manufacturing metal,Animal feed,Special flours,Recovered carbon black,Industrial wax,Titanium dioxide,Flue gas cleaning,Additive manufacturing polymer,Cocoa processing,Pharmaceuticals,Metal powders,Lignin,Thickening agents,Tablets
- End products
- Polyamide powder,Wax beads,Battery electrodes,Poultry feed,Polymer composites,Xanthan gum,Herbal teas,Gluten-free all-purpose flour,Lime based flue gas cleaning products,Cocoa liquor,Epoxy powder coatings,White chocolate truffles,Ammonium nitrate fertilizer,Icing sugar,Lignin composite material,Effervescent tablets,Recycled plastic pellets,Talcum powder,Stainless steel 3d printing,Inhalable drug powder,Lactose-free milk powder,Carbon black filler,Iron powder,Foundation makeup,Titanium dioxide pigment,Herbicides
- Steps before
- Drying,Grinding,Purification
- Steps after
- Packing,Recrystallisation,Storage
- Input ingredients
- granulated sugar,coarse sugar
- Output ingredients
- icing sugar,shelf-stable icing sugar,recrystallised sugar
- Market info
- Hosokawa Alpine is known for its expertise in manufacturing advanced process equipment and systems for powder and particle processing technology. It has a strong reputation for innovation, quality engineering, and customer-focused solutions in various industries.
- Mill size
- SX 315
- Motor power
- 18.5 kW
- Suitable for ATEX zone
- Zone 22
- Motor speed
- Up to 145 m/sec
- Throughput
- 3 t/h at 99%,lt
- 450 µm / 1.5 t/h at 99%,lt
- 150 µm
- Container diameter
- 800 mm
- Fineness value adjustment
- Stepless adjustment via frequency converter
- Recrystallisation process
- Controlled atmosphere inside the mill
- Pressure-shock resistant
- Yes
- Integration with existing systems
- Yes
- Cleaning access
- Wide opening mill door
- Process type
- Continuous operation
- Working mechanism
- Pin discs integrated into mill door
- Compact system
- No additional filters or fans needed
- Maintenance and cleaning access
- Wide opening mill door
- Recrystallisation process
- Precise atmosphere control
- Heating control
- Heating sleeves for startup
- Automation level
- Stepless motor speed adjustment
- Process integration
- Can be integrated into existing systems
- Abrasion resistance
- Yes
- Cleanability
- Easy-to-clean design
- Corrosive resistance (e.g. acids)
- Stainless steel construction
- Density/particle size
- 0.5–2.5 g/cm³ / 50–1000 µm
- Biological compatibility
- Food-grade materials
- Granulation type
- Sugar
- Space requirement
- Compact
- Recrystallisation capability
- Yes
- Product type
- Storage-stable sugar
- ATEX certification
- Zone 22
- Compact footprint
- Yes
- Machine Footprint
- Compact,space-saving
- Discharge Method
- Conical product discharge
- Mill Door Opening
- Wide opening
- Cylindrical Design
- Diameter of 800 mm
- Compact footprint
- Cylindrical design
