Solid flow meter for granular and powdered bulk materials
Ensure accurate mass flow measurement and seamless integration in your production line with a solid flow meter designed for continuous operation, ideal for handling granular and powdered bulk materials efficiently.
Measures and Monitors Solid Material Flow

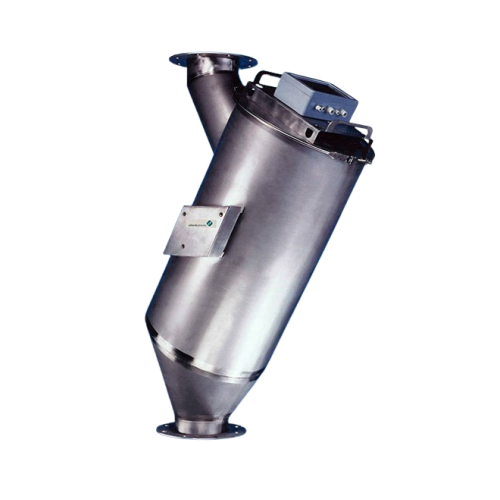

The MULTISTREAM B Solid Flow Meter from Schenck Process is your solution for precise mass flow management in diverse industries such as chemicals, energy, and infrastructure. This inline measuring system employs a baffle plate measuring principle to continuously record the flow and rates of solid materials, ensuring accurate throughput and consumption tracking. With the capacity to handle up to 100 tons per hour of powders and granules, this system supports operations with materials as varied as lithium-ion battery cathode material, ammonium nitrate fertilizer, and polyethylene films.
Designed for seamless integration with no need to offset inlet and outlet points, the MULTISTREAM B is cost-effective and easy to install in existing production lines. Its stainless steel, dustproof housing ensures durability and cleanliness in processing environments. Additionally, the integrated DISOCONT evaluation electronics can be installed directly within the device, streamlining operations and reducing setup complexity.
For facilities seeking energy efficiency, the solid flow meter’s compact design mitigates unnecessary height loss, optimizing space utilization within your plant. Schenck Process offers configuration options tailored to your specific process requirements, including adaptation for use with a controllable metering hopper, enabling the flow meter to function as part of a comprehensive feeding system. This equipment is built to meet the challenges of dynamic industrial environments, providing robust performance and comprehensive support for your material handling needs.
Benefits
- Enhances process accuracy with precise mass flow measurement.
- Minimizes installation costs with easy integration into existing systems.
- Reduces maintenance frequency thanks to robust, dustproof stainless steel construction.
- Optimizes plant space usage with compact, chute-free design.
- Ensures flexible operation with customizable configurations to meet specific process needs.
- Applications
- Sealants,Polyolefins,Catalysts,Cement,Chemicals,Coke,Transport,Agrichemicals,Coal,Yard logistics,Biomass,Batteries,Steelmaking,Film,Personal care,Bioplastics,Compounds,Additives,Paints,Fertilizers,Recycling,Home care,Colorants,Coatings,Adhesives,Masterbatch
- End products
- Thermoplastic masterbatch,Steel billets,Acrylic paints,Laundry detergent powders,Epoxy coatings,Biomass pellets,Coal-derived coke,Portland cement,Shampoo formulations,Lithium-ion battery cathode material,3d printing filaments,Ammonium nitrate fertilizer,Film packaging materials,Recycled plastic granules,Pigment dispersions,Silicone adhesives,Agronomic micronutrients,Herbicides,Bioplastic pellets,Polyethylene films
- Steps before
- Conveying,Milling,Grinding,Bulk Material Handling,Feeding
- Steps after
- Balancing,Loading,Packaging,Distribution
- Input ingredients
- powdered bulk materials,granular bulk materials,individual grain size up to 30mm
- Output ingredients
- mass flow measurement,throughput measurement,consumption balance,load measurement
- Market info
- Schenck Process is known for its expertise in material handling, weighing, feeding, and automation solutions. The company has a strong reputation for delivering high-quality engineered-to-order equipment for diverse industries, backed by innovative technology and customer-centric service.
- Material Size Compatibility
- Up to 30mm grain size
- Throughput Rate
- Up to 100 t/hr
- Volume Rate
- Max. 80 m³/hr
- Integration
- Low-cost integration (inlet/outlet not offset)
- Housing Material
- Stainless steel
- Measuring Principle
- Baffle plate
- Electronics Evaluation
- DISOCONT evaluation electronics
- Dustproof
- Yes
- Modular Integration
- Complete module for on-site operation
- Feeding System Compatibility
- Yes,when combined with metering hopper
- Working mechanism
- Baffle plate measuring principle
- Flow measurement
- Continuously recording mass flow
- Integration flexibility
- Low-cost,simple integration
- Operation type
- Inline continuous
- Integration with existing systems
- Straightforward as inlet and outlet do not need to be offset
- Modular design
- Complete module for on-site operation
- Dustproof feature
- Stainless steel housing
- Electronics integration
- Evaluation electronics can be installed directly
- Usage versatility
- Throughput and consumption measurement for bulk materials
- Automation compatibility
- Optional integration with DISOCONT evaluation electronics
- Size adaptability
- No height lost through extra chutes
- Secondary function
- Can be used as a feeding system with a controllable metering hopper
- Corrosive resistance (e.g. acids)
- Stainless steel
- Density/particle size
- 0 up to 30mm
- ATEX certification
- Yes
- CE marking
- Yes
- Compact design
- Without height lost through chutes
- Housing material
- Stainless steel
- Dustproof capability
- Yes
- Installation method
- Inline,no offset required
- Control panel integration
- DISOCONT evaluation electronics
- Inlet/outlet configuration
- Non-offset design
- Modular integration
- Controllable metering hopper
- Housing material
- Stainless steel
- Integrated electronics housing
- Optional
