Small-scale freeze dryer for pharmaceutical applications

Optimize small-batch and pilot-scale lyophilization with advanced freeze-drying technologies designed to ensure product quality, uniformity, and process reliability, achieving efficient moisture removal for biopharmaceutical applications.

Freeze Dries Small-Batch Biopharmaceuticals

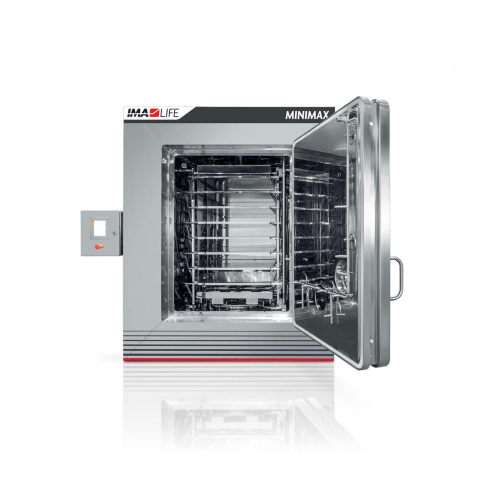

The MINIMAX Small-Scale Freeze Dryer from IMA Life is a GMP-compliant solution designed to tackle the challenges of handling small production batches in the pharmaceutical and biotech industries. Built on the successful LYOMAX industrial freeze dryer concept, it offers unparalleled precision in moisture removal for sensitive biopharmaceuticals, such as vaccines, monoclonal antibodies, and gene therapy products.

This versatile lyophilizer features a compact and modular design, ideal for pilot-scale and small-scale production. It operates using process analytical technologies (PAT) for optimal monitoring and control, ensuring consistent drying outcomes and high product quality. With shelf areas ranging from 1.0 to 3.9 m² and an ice condenser capacity from 29 to 78 kg, the MINIMAX efficiently scales processes up to full commercial production.

Integration options include automation with vial-loading systems, PLC control, and compatibility with isolation technology for high-potent product handling. The unit is pre-arranged for more complex applications, such as processing non-aqueous solvents. Made with IMA Life’s proprietary FUSION™-FUSION PLUS™ technology, its shelves enhance heat transfer and offer robust resistance.

The Freeze Dryer supports extensive data collection, aiding in quick drug commercialization and allowing seamless adaptation to GMP standards. A built-in CIP-SIP system ensures effective cleaning and maintenance, minimizing downtime. Furthermore, options for monitoring tools like Veriseq™, a Quantum mass spectrometer, and WiSe wireless sensors enable precise control over every batch process, maximizing uptime and operational efficiency.

Benefits

  • Ensures high-quality lyophilization with precise PAT monitoring, reducing the risk of product variability.
  • Enhances scalability from pilot to commercial production, allowing seamless process transitions.
  • Minimizes operational costs with preventive maintenance software, reducing unexpected downtimes.
  • Accommodates high-potent product handling with integration-ready isolation technology.
  • Facilitates regulatory compliance with GMP design and advanced cleaning systems.

General


Applications
High potent products,Biopharmaceuticals,Liquid formulations,Parenteral products
End products
Biologics,Lyophilized protein drugs,Vaccines,Injectable cancer drugs,Gene therapy products,Monoclonal antibodies,Insulin formulations,Liposomal formulations
Steps before
Formulation,Pilot-scale freeze drying,Scalable lyophilization technologies
Steps after
Packing,Sterilization,Commercial Production,Integration with isolation technology,Vial-loading
Input ingredients
small production batches,non-aqueous solvents,high potent products
Output ingredients
lyophilized pharmaceuticals,parenteral products,dried vials
Market info
IMA is known for its expertise in manufacturing automated packaging machines and solutions, particularly for the pharmaceutical, cosmetics, food, tea, and coffee industries, offering innovative, high-quality equipment and comprehensive customer service.

Technical Specifications


Shelf Area Range
1.0 to 3.9 m²
Condenser Capacity
29 to 78 kg
Minimum Condenser Temperature
-75°C
RABS/Isolator Integration
Slot door suitable
Configuration
Compact and modular
Automation
Integrated with isolation technology and automatic vial-loading systems
PAT Tools
Veriseq™ controlled nucleation,Quantum mass spectrometer,WiSe wireless temperature sensors
Number of Shelves
3 to 7,with options
Shelf Size
643 x 615 mm,643 x 930 mm
Max Vials Loading Capacity
2R vial

Operating Characteristics


Batch vs. continuous operation
Batch
CIP/SIP
Included
Energy efficiency
High-level redundancy
Automation level
Integrated with Isolation technology and automatic vial-loading systems
Cleaning method
CIP / SIP
Changeover time
Reduced downtime

Product type Characteristics


Container size and shape
Suitable for vials,ampoules,and other parenteral containers

Physical Characteristics


Machine footprint
Compact and modular
Shelf Area Range
1.0 to 3.9 m²
Shelf Spacing
106 or 136 mm
Shelf Size
643 x 615 mm or 643 x 930 mm
Number of Shelves
3 to 7 (with alternatives)
Slot door integration
RABS/isolator integration
Condenser Capacity
29 to 78 kg
Minimum Condenser Temperature
-75°C

Custom Options


Compact footprint
Yes
Control panel type
Touchscreen HMI
Integration capability
RABS/Isolator integration
Modular configuration
Yes
Shelf design
FUSION™ technology
Customizable shelf area
1.0 to 3.9 m²
Automation level
Pre-arranged for PAT tools integration
Redundancy options
High level
