Single-stage plastic container production system
Eliminate multiple steps and minimize production costs with an integrated system that transforms raw resin into high-quality finished containers in a seamless process.
Produces and Shapes Plastic Containers

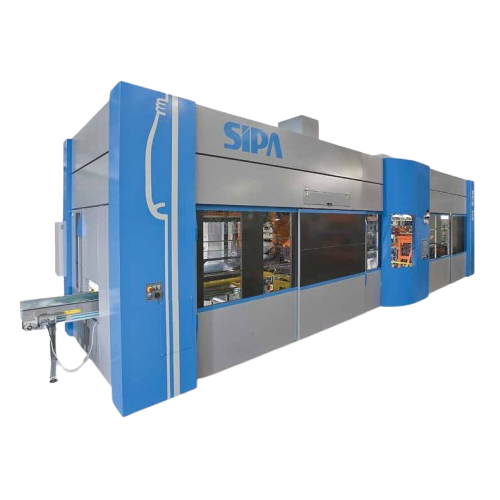

The ECS FX ISBM systems from SIPA offer a seamless, single-stage process for plastic container production directly from resin to finished bottles. Specializing in high-volume outputs, these systems eliminate the costs of two-step processes by integrating plasticization, preform injection, and stretch-blow molding into a continuous operation. With applications spanning beverages, food, and personal care sectors, the ECS FX models are adept at producing diverse container types, from PET water bottles to cosmetic jars.
Notably, the ECS FX systems feature tailored injection profiles and advanced thermal conditioning, ensuring high-quality preforms and containers with optimal material distribution. Capable of processing up to 36,000 bottles per hour, they support a range of materials, including PET, RPET, and PLA, while minimizing energy consumption via efficient electric motors and reduced compressed air needs.
SIPA’s ECS FX systems are designed with robust automation, including precise injection control and innovative preform handling that reduces the risk of damage or contamination. The systems allow for the simultaneous production of varied container shapes and sizes, enhancing operational flexibility. With a focus on ease of maintenance, components like self-lubricating bushings ensure long-term reliability, while customizable mold options and engineering support offer adaptability to specific production requirements.
Benefits
- Streamlines production by combining multiple processes in a single stage, minimizing operational costs.
- Enhances flexibility with the ability to produce various container types and sizes simultaneously.
- Reduces energy usage through efficient motor design and optimized air consumption.
- Minimizes waste and downtime with consistent, high-quality output and reliable handling systems.
- Accommodates sustainable practices with capabilities to process recycled and biodegradable materials.
- Applications
- Carbonated beverages,Mineral water,Personal care products,Detergents,Isotonic drinks,Milk,Non-food products,Alcoholic beverages,Ready-to-drink (rtd) tea,Food products,Food cosmetics,Juice,Juices,Soft drinks,Tea,Dairy products,Edible oil
- End products
- Energy drink bottles,Extra virgin olive oil bottles,Honey jars,Spirits bottles,Iced tea bottles,Face cream jars,Cooking oil bottles,Body lotion bottles,Herbal tea bottles,Still water bottles,Flavored milk bottles,Yogurt drink bottles,Beer bottles,Apple juice bottles,Liquid soap bottles,Sports drink bottles,Conditioner bottles,Shampoo bottles,Pasta sauce jars,Makeup remover bottles,Sparkling water bottles,Wine bottles,Fruit soda bottles,Lemon-lime soda bottles,Orange juice bottles,Fresh milk bottles
- Steps before
- Dehumidification,Purification,Pelletizing
- Steps after
- Filling,Packing,Labeling,Storage,Distribution
- Input ingredients
- PET resin,recycled PET,dehumidified PET granules,RPET,PLA,OPP
- Output ingredients
- finished containers,lightweight bottles,hot fill bottles,aseptic bottles,pasteurizable containers,wide mouth jars,round or square-shaped bottles,oval containers,asymmetrical containers,tailor-made containers,high-quality preforms,warm filled bottles,standard and customized containers
- Market info
- High Production Outputs
- Up to 36,000 b/h for standard bottles
- High Production Outputs
- Up to 30,000 b/h for hot fill bottles
- High Production Outputs
- Up to 13,500 b/h for wide mouth jars
- Lower Production Costs
- No preforms handling/storage and single heating cycle
- Material Compatibility
- PET,RPET,PLA,OPP,etc.
- Capacity
- Up to 3 liters
- Extruder Screw Diameter
- 120 mm and 140 mm
- Neck Diameter
- Up to 73 mm
- Injection Cavities
- 80 max cavities
- Blowing Cavities
- 40 max cavities
- Maximum Bottle Size
- 3 liters
- Compressed Air Usage
- Low consumption due to integrated injection
- Automation
- Total automated control of all phases of production
- Air Pressure Blowing
- 10 bars low pressure,25 to 40 bars high pressure
- Process Type
- Single-stage,integrated
- Automation level
- Total automated control
- Production Modes
- Simultaneous production of different shapes
- Production Output
- Up to 36,000 b/h
- Material Processing Flexibility
- PET,RPET,PLA,OPP
- Versatility
- Wide range of container types
- Energy Efficiency
- No preforms handling/storage and single heating cycle
- Air Consumption
- Reduced due to lower dead volumes
- Density/particle size
- 0.5–2.5 g/cm³ / 50–1000 µm
- Container Shape and Size
- Round,Square,Oval
- Up to 3 liters
- Machine Footprint
- Not Specified
- Discharge Method
- Gravity and Air Pressure Conveyors
- Preform Handling System
- Brushless Motor Driven
- Screw Size
- 120 mm and 140 mm
- Injection Cavities
- 32 to 80
- Control panel type
- Automated with integrated system controls
- Adaptability
- Versatile for various container shapes and sizes
- Integration possibilities
- Full-line integration interface for downstream processes
- Production capability
- Simultaneous production of different container types
- Material flexibility
- Compatible with PET,RPET,PLA,OPP,etc.
- Thermal conditioning options
- Personalized conditioning for various container types
- Preform handling
- Non-contact system to maintain thermal profile
