Sifter for pet food, fish feed, and animal feed

Achieve precise particle separation and enhance feed quality with this vibratory sifter, designed for continuous operation and low maintenance. Efficiently removes dust and unwanted particles while ensuring gentle handling of sensitive feed materials.

Screens and Separates Particles Efficiently

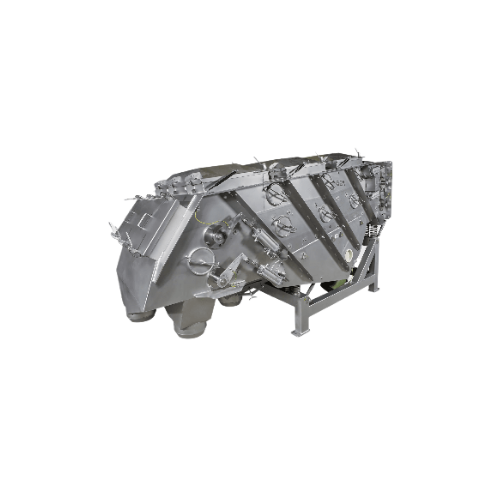

The GEA Scan-Vibro Sifters are precision-engineered vibrating sifters designed for continuous duty in diverse industrial applications. What makes these sifters stand out is their ability to gently handle a wide array of products, from pet food to pharmaceuticals, ensuring minimal product damage while effectively separating unwanted particles. Equipped with a multi-stage oscillation system, they offer robust sifting and screening to deliver uniform particle sizes essential for end-products such as dog kibble, fish meal pellets, and milk powder. Capable of operating in a range from 0.5 to 8.0 m² screening areas, they are suitable for high-capacity operations, ensuring efficient throughput. Integration into production lines is seamless with PLC controls, allowing for automation and remote adjustments. Featuring low energy consumption and lubrication-free motors, they are ideal for extended production cycles with reduced operating costs. Constructed with CIP compatibility, the sifters ensure rapid and contamination-free cleaning with tool-free screen replacements, supporting effective maintenance. Compliant with USDA 3-A, EHEDG, and ATEX standards, and available in various finish grades, they can be tailored to meet specific operational and regulatory requirements.

Benefits

  • Minimizes product loss with gentle handling to ensure high-quality output.
  • Enhances operational efficiency with quick, tool-free screen changes.
  • Lowers energy costs through efficient, low-maintenance motor technology.
  • Complies with industry standards for versatile application across sectors.
  • Facilitates thorough, contamination-free cleaning with CIP compatibility.

General


Applications
Food,Beverages,Animal feed,Chemicals,Cement,Recycling,Pet food,Wood pellets,Minerals,Household waste,Industrial applications,Fertilizer,Fish feed,Seeds,Powders,Dairy,Pharmaceuticals
End products
Liquid fertilizers,Coffee grounds,Dog kibble,Fish meal pellets,Yeast extract,Cement mix,Milk powder,Recyclable plastics,Poultry feed,Protein supplements,Cat treats,Soy protein isolate,Compost,Veterinary tablets,Paper pulp
Steps before
Pellet Production,Coating
Steps after
Dust Removal,Packing
Input ingredients
pet food pellets,fish feed pellets,animal feed,coated pellets,uncoated pellets
Output ingredients
dust-free pellets,uniform pellets,consistent end product,lump-free pellets,unwanted particles removed
Market info
GEA is known for its expertise in engineering innovative and sustainable equipment and solutions, focusing on sectors such as food, beverages, pharmaceuticals, and energy, with a reputation for quality, efficiency, and advanced technological applications in industrial processing.

Technical Specifications


Operation Temperature
-20 to +55 °C
Screening Area
0.5–8.0 m²
Energy Consumption
Low energy usage
Motor Type
Lubrication-free motors
Cleaning Method
Tool-free screen removal,CIP-compatible
Product Handling
Gentle oscillation,frequency,and stroke length
Screen Fastening
Quick,tool-free removal
Screen Changeover
Rapid screen changeovers
Screen Decks
One,two or more screen decks
Compliance
USDA 3-A,EHEDG,ATEX

Operating Characteristics


Working mechanism
Vibratory
Automation level
Manual / PLC Compatible
CIP/SIP
CIP compatible
Cleaning method
Tool-free screen replacement
Batch vs. continuous operation
Continuous
Changeover time
Rapid screen changeover
Energy efficiency
Low energy consumption
Operating conditions
–20 to +55 °C
Product handling
Gentle oscillation
Maintenance level
Low maintenance

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Product variety adaptability
Coated/uncoated pellets

Physical Characteristics


Machine footprint
Compact / Customizable
Screening area
0.5–8.0 m²
Number of screen decks
One,two or more
Material
Stainless steel
Top covers
Large with gas struts
Screen mesh
Metal detectable (EN 1.4016/AISI 430)
Screen tensioning system
Manual or pneumatic

Custom Options


Screen deck number
One,two or more
Screen mesh sizes
Various sizes available
Tool-free screen replacement
Yes
Screen tensioning system
Manual or pneumatic
Top covers with gas struts
Available
Support frame
Mounted on wheels
Metal detectable screen mesh
EN 1.4016/AISI 430
