Rotary lobe pump for viscous media
Ensure precise handling and gentle transfer of viscous liquids with advanced rotary lobe technology, optimizing flow and maintaining the integrity of sensitive products across your production process.
Pumps and Doses Viscous Media Efficiently

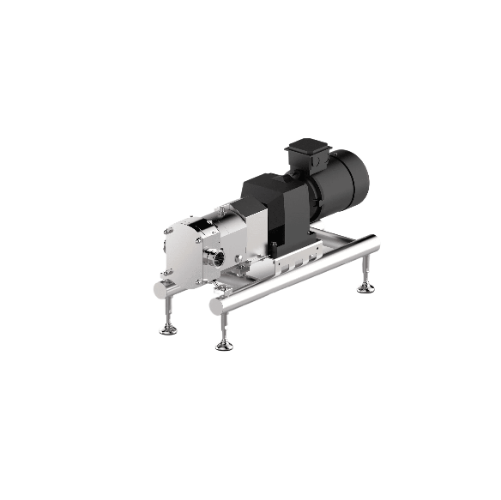

The GEA Hilge NOVALOBE rotary lobe pump, part of the Varipump line, stands out with its robust construction and precision engineering designed specifically for handling viscous media. It features a compact design and optimized shaft geometry, reducing vibrations and noise, making it suitable for a variety of applications including dairy, beverage, confectionary, and pharmaceutical processes. Capable of achieving differential pressures up to 16 bar, it efficiently pumps and doses thick liquids like yogurt, chocolate syrup, and enzymatic solutions while maintaining EHEDG certification for hygienic operations.
Offering flexible rotor profiles, the NOVALOBE can adapt to specific operational needs, ensuring optimal performance. It supports single, double, and O-ring mechanical seals with FDA-compliant materials, suited for clean-in-place (CIP) and steam-in-place (SIP) processes. Standard connections include DIN threads and flanges, with options for custom configurations to integrate seamlessly into existing systems. Enhanced features such as integrated pressure relief valves and thermal jackets provide operational safety and versatility, especially for sensitive products requiring temperature control.
With a capacity for handling viscosities up to 1,000,000 mPas and a range of variants accommodating various installations and space requirements, the GEA Hilge NOVALOBE is an ideal choice for continuous and manual operations, ensuring gentle handling of high-value media across multiple industries.
Benefits
- Minimizes maintenance and downtimes with robust construction and reduced vibration.
- Ensures product integrity through gentle handling of viscous media.
- Adapts to various applications with customizable rotor profiles.
- Enhances safety and control with integrated pressure relief and thermal jacket options.
- Complies with strict hygienic standards, supporting CIP and SIP processes.
- Applications
- Food,Brewery,Personal care,Biotechnology,Confectionary and sugar,Textile,Beverage,Enzyme production,Soft drink applications,Cosmetics,Meat industry,Blood products,Chemical,Vaccine,Fermentation processes,Paper,Dairy,Pharmaceutical
- End products
- Blood plasma derivatives,Chocolate syrup,Beer wort,Lotion,Gelatin desserts,Industrial enzymes,Fabric softener,Chemical solvents,Cream cheese,Biodegradable packaging paper,Shampoo,Yogurt,Soft drinks,Vaccine solutions,Sausage filling
- Steps before
- Mixing,Blending,Fermentation,Concentration
- Steps after
- Sterilization,Packaging,Cooling,Filling
- Input ingredients
- viscous media,food ingredients,dairy products,soft drinks,confectionery products,meat products,beer,fermentation broths,vaccines,blood products,enzymes,cosmetics,personal care materials,industrial chemicals,paper slurry,textile dye
- Output ingredients
- processed viscous media,pumped food products,dairy mixtures,soft drink solutions,confectionery mixtures,meat industry fluids,brewed beer,fermented products,vaccine solutions,processed blood products,enzyme solutions,finished cosmetics,personal care emulsions,chemical solutions,processed paper materials,textile treatments
- Market info
- GEA is known for its expertise in engineering innovative and sustainable equipment and solutions, focusing on sectors such as food, beverages, pharmaceuticals, and energy, with a reputation for quality, efficiency, and advanced technological applications in industrial processing.
- Differential pressure
- Up to 16 bar
- Max. speed
- 1,500 rpm
- Max. liquid temperature
- Up to 95 °C,150 °C (SIP)
- Rotor design
- Uni-wing,Bi-wing,Multilobe
- Displacement
- 0.06 to 2.1 l/rev
- Surface roughness Ra
- ≤ 0.8 / ≤ 0.41 μm
- Connection size
- 25–100 mm
- Max. particle size (non-abrasive)
- 12–41 mm
- Max. viscosity
- 1,000,000 mPas
- Batch vs. continuous operation
- Batch / Inline Continuous
- CIP/SIP
- CIP 121°C / SIP 135°C
- Cleaning method
- CIP / Manual
- Automation level
- Manual / PLC / SCADA
- Energy efficiency
- 0.5–2 kWh/kg moisture
- Abrasion resistance
- Minimized galling
- Biological compatibility
- EHEDG certified
- Cleanability
- CIP / SIP processes
- Corrosive resistance (e.g. acids)
- Carbon/silicon carbide materials
- Density/particle size
- Standard elastomers (FDA-compliant)
- Shaft overhang
- Minimized
- Rotor profiles
- Various options
- Seals
- Single,Double,O-ring
- Surface roughness Ra(μm)
- ≤ 0.8 / ≤ 0.41
- Rotor design
- Uni-wing,Bi-wing,Multilobe
- Max particle size (mm)
- 12–41 (non-abrasive)
- Max viscosity (mPas)
- 1,000,000
- Connection size (mm)
- 25–100
- Thermal jacket
- Available
- Aseptic front cover
- Available
- Rectangular inlet
- Improved inlet conditions
- Rotor profile customization
- uni-wing,bi-wing,multilobe
- Shaft sealing types
- Single mechanical,Single-flush mechanical,Double mechanical,O-ring seal
- Connection type
- Threads to DIN 11851,Flanges to DIN EN 1092-1,Sterile threads to DIN 11864-1
- Thermal jacket option
- Heating and cooling
- Pressure relief valve
- Integrated
- Pump mounting
- With bare shafts,With geared motor,Stainless steel motor shroud,Mounted on trolley
