Pure steam generator for industrial applications

Ensure the highest levels of steam purity and precise pressure control for critical applications, supporting seamless integration into your production line for consistent and reliable product quality.

Generates High-Purity Steam for Industrial Applications

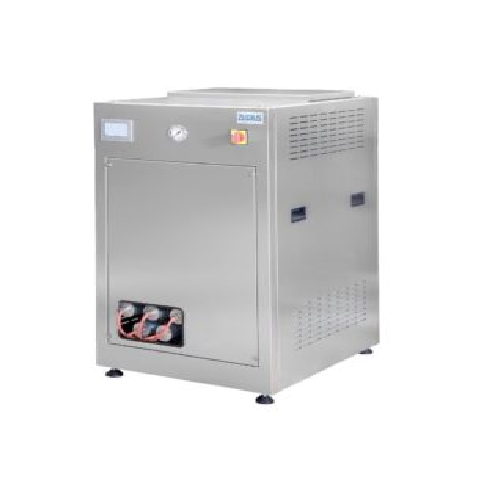

ZIRBUS Technology GmbH’s Steamboy Series offers a range of electric pure steam generators designed to deliver high-purity steam tailored for stringent industrial applications. These units feature a robust stainless steel construction (1.4571/AiSi316Ti) and deliver steam at pressures up to 5.5 bar, with optional increase up to 20 bar for higher demands. The series, available in models ranging from Steamboy 9 to Steamboy 80, integrates a fully automatic microprocessor-controlled system for seamless operation and precise steam output control via a touch panel. Ideal for industries like pharmaceuticals and biotech, the Steamboy is essential for producing vaccines, monoclonal antibodies, and energy drinks. With its compact design, it ensures minimal spatial requirements and energy efficiency, featuring a heat recovery system and highly effective insulation. Compliance with the European Pressure Equipment Directive DGRL 2014/68/EU guarantees safety and regulatory adherence. The steam generators are engineered with advanced features such as automatic desalination, conductivity measurement, and a CIP capability for easy maintenance, making them an indispensable part of modern production lines.

Benefits

  • Enhances production efficiency with fully automated steam generation and precise pressure control.
  • Preserves material integrity with corrosion-resistant stainless steel construction.
  • Ensures safety and compliance with European Pressure Equipment Directive adherence.
  • Decreases energy costs through highly efficient insulation and heat recovery features.
  • Minimizes installation space requirements with its compact design and integrated systems.

General


Applications
Supplements,Vitamins,Liquid formulations,Fine chemicals,Pharmaceutical tablets,Detergents,Nutraceuticals,Food industry,Biopharmaceuticals,Enzymes,Pharmaceutical powders
End products
Sterile liquid injectables,Digestive enzymes,Liquid hand soaps,Vaccines,Vitamin c tablets,Monoclonal antibodies,Protein shakes,Laundry detergents,Coenzyme q10,Energy drinks,Omega-3 capsules,Aspirin tablets,Protein therapeutics,Paracetamol tablets,Dietary supplements
Steps before
Water treatment,Feed water tank filling
Steps after
Sterilization,Purification
Input ingredients
electricity,feed water
Output ingredients
pure steam
Market info
Zirbus is known for manufacturing high-quality autoclaves, freeze dryers, and customized sterilization equipment, with a strong reputation for reliability and precision in industrial and laboratory applications.

Technical Specifications


Operating temperature
145-155°C
Operating pressure
3.5-5.5 bar
Pressure increase capability
Up to 20 bar
Steam output
12-102 kg/h
Pressure vessel material
Stainless steel 1.4571/ASi316Ti
Steam pressure adjustability
Infinitely variable
Control type
Microprocessor controlled
Touch panel operation
Yes
Pressure measurement
Infinitely variable via sensor
Desalination option
Automatic with conductivity measurement
Connection capability
Building control system
Water treatment option
Available

Operating Characteristics


Working mechanism
Electric heating
Operation type
Fully automatic
Pressure control
Infinitely variable
Automation level
Microprocessor control
Integrated steps
Pressure adjustment,fill level measurement
Batch vs. continuous operation
Batch
Energy efficiency
Efficient insulation

Material Compatibility


Corrosive resistance (e.g. acids)
Stainless steel 1.4571,1.4301,1.4404,1.4435

Product type Characteristics


High-pressure capability
Up to 20 bar
Temperature range
Up to 155°C
Desalination support
Automatic with conductivity measurement


European Pressure Equipment Directive
DGRL 2014/68/EU
Stainless Steel Grade
1.4571,AiSi316Ti
Stainless Steel Grade
1.4404,AiSi316L
Stainless Steel Grade
1.4301/ AiSi 304

Physical Characteristics


Machine footprint
Compact
Tank shape
Cylindrical
Material of pressure vessel
Stainless steel 1.4571,ASi316Ti
Housing material
Brushed stainless steel 1.4301,AiSi 304
Construction type
Modular/Compact
Feed/discharge method
Automatic
Control panel type
Touch screen
Pressure adjustment
Infinitely variable

Custom Options


Operating Pressure Range
5.5 bar to 20 bar
Size Options
9kW to 78kW
Steam Pressure Adjustment
2000mbar to 4500mbar
Control System
Fully automatic microprocessor control
Pressure Adjustment Interface
Touch screen
Remote Control Capability
Network connection or potential free contact
Desalination Option
Automatic with conductivity measurement
Water Treatment Connection
Available
