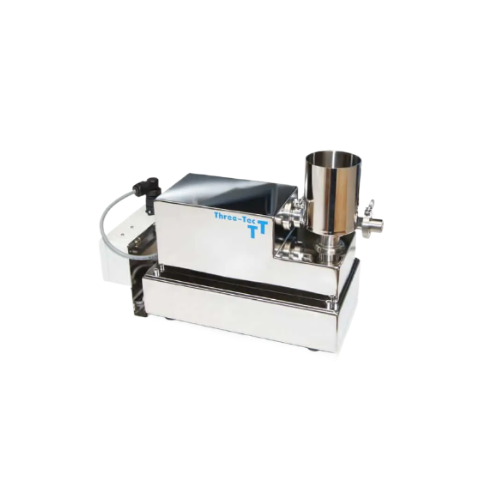

Precise volumetric or gravimetric powder feeder

For precise feeding of challenging powders prone to clumping and bridging, this twin screw feeder ensures seamless integration into your production line, maintaining consistent flow and accuracy.

Feeds and Dispenses Powders Accurately

The ZD 9 FB from Three-Tec GmbH is a twin screw feeder designed for precise volumetric and gravimetric feeding of difficult powders, such as those prone to clumping and bridging. Its unique flat-tray design, with a bottom scraper mechanism, ensures gentle discharge without residue, perfect for industries like pharmaceuticals, chemicals, and food processing. Capable of handling a feeding rate from 0.02 to 29.53 dm³/h, this system operates efficiently with a stepper motor, ensuring accurate dispensing at speeds from 1 to 500 min⁻¹. The compact unit integrates seamlessly into existing production lines, aiding high-speed, continuous operations. With a standard hopper volume of 0.5 liters, its modular design supports easy assembly and disassembly for maintenance, while compliance with industry standards ensures reliable performance across diverse applications.

Benefits

  • Ensures precise powder feeding, minimizing material waste and optimizing production efficiency.
  • Enhances process reliability with clog-resistant feeding for challenging materials.
  • Reduces operational costs through minimal maintenance and quick-clean design.
  • Seamlessly integrates with existing production systems, supporting continuous operation.
  • Complies with industry standards, ensuring safe use in pharmaceutical and chemical environments.

General


Applications
Vitamins,Supplements,Metal powders,Fine chemicals,Detergents,Nutraceuticals,Pharmaceutical powder,Spices,Minerals,Sweeteners
End products
Vitamin b tablets,Pharmaceutical tablets,Laundry detergent powder,Active pharmaceutical ingredients (apis),Magnesium powder,Iron powder,Calcium supplements,Protein powder,Ground cinnamon,Sucralose,Calcium carbonate powder,Aspartame,Curry powder
Steps before
Material Handling,Pre-mixing,Particle Size Reduction
Steps after
Quality Control,Packing,Storage
Input ingredients
poorly flowing powder,free-flowing powder,powder that clumps,powder that cakes,powder that forms bridges
Output ingredients
precise volumetric feeding,precise gravimetric feeding,gently discharged bulk material
Market info
Three-Tec is known for its expertise in manufacturing precision dosing and feeding systems for industrial applications, with a strong reputation for customizable engineered-to-order equipment and innovative solutions tailored to specific customer needs.

Technical Specifications


Feed rate
0.02 to 29.53 dm³/h
Metering tools diameter
9 mm
Voltage
110-240 V
Frequency
50-60 Hz
Motor type
Stepper motor
Weight
≈ 7 kg with potentiometer,≈ 9 kg with logo! or S7-1500
Speed
1-500 min⁻¹
Hopper volume
0.5 L (standard)

Operating Characteristics


Feeding mechanism
Twin screw
Feed method
Volumetric / Gravimetric
Flow type
Continuous
Discharge method
Bottom scraper

Material Compatibility


Density/particle size
Poorly flowing / Free-flowing
Agglomeration risk
Material with a strong tendency to form bridges

Product type Characteristics


Flowability
Poorly flowing / Free-flowing
Tendency to clump
Yes
Bridge formation
Yes
Material state
Powder

Physical Characteristics


Hopper Volume
0.5 l (standard)
Weight
≈ 7 kg with potentiometer,≈ 9 kg with logo! or S7-1500
Discharge Method
Bottom Scraper

Custom Options


Control panel type
Potentiometer / Logo! or S7-1500
Voltage,Frequency Options
110-240 V | 50-60 Hz
Motor Type
Stepper motor
