Pre-breaker for initial material size reduction

Efficiently prepare your bulk materials for further processing by swiftly breaking down large clumps and agglomerates, ensuring a consistent particle size distribution essential for optimal downstream milling operations.

Breaks and Size-Reduces Agglomerated Materials

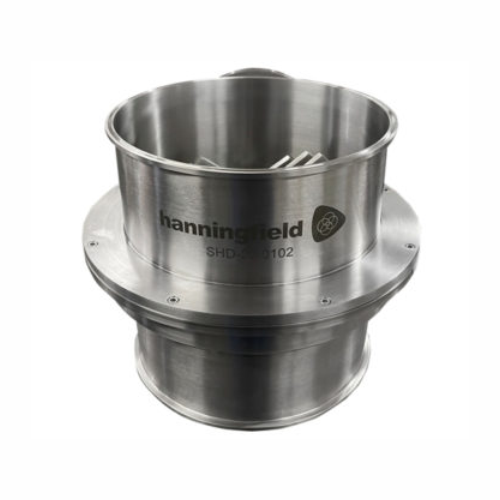

The Hanningfield Pre-Breakers, available in models ND150, ND200, and ND300, are engineered to effectively break down and size-reduce agglomerated materials across industries such as pharmaceutical, food and beverage, and chemical. Utilizing a high-speed attrition mechanism, this equipment ensures quick processing with reduced manual intervention and facilitates seamless integration with existing processing lines through Tri-Clover connections. Capable of handling a wide range of materials including pharmaceutical powders, protein supplements, and herbal tea blends, these Pre-Breakers operate at rotational speeds up to 1800 RPM, providing flexible throughput configurations.

Constructed from 316L stainless steel with FDA-compliant parts, they offer excellent corrosion resistance and are designed to meet GMP and ATEX standards, ensuring safety and regulatory compliance. The easy-clean design allows for complete disassembly without tools, contributing to efficient maintenance and hygienic operations. Customizable options, including various inlet/outlet sizes and material upgrades, are available to align precisely with your application needs, supported by full validation documentation for smooth implementation and compliance assurance.

Benefits

  • Enhances production efficiency by rapidly processing agglomerated materials, reducing bottlenecks in pre-processing.
  • Allows for flexible integration in existing systems, minimizing installation time with Tri-Clover connections.
  • Ensures product safety with full compliance to FDA and GMP standards.
  • Minimizes maintenance downtime with tool-free disassembly and cleaning.
  • Adapts to specific operational needs with customizable configurations and material options.

General


Applications
Agglomerated powders,Nutraceuticals,Pharmaceutical powder,Granules,Dried plant-based products,Chemical,Food and beverage,Cannabis
End products
Cannabis oil,Herbal tea blends,Pharmaceutical tablets,Chemical reagents,Instant soup powders,Protein supplements,Detergent granules,Instant coffee granules
Steps before
Material Handling,Mixing,Blending
Steps after
Milling,Sizing,Granulation
Input ingredients
materials,agglomerated powders,granules,dried plant based products
Output ingredients
initial sizing materials,macro size-reduced materials,pre-milled products
Market info
Hanningfield Process Systems is known for manufacturing high-quality, customized process handling, and containment equipment for industries such as pharmaceutical, food, and chemical, specializing in milling, sieving, and powder handling solutions.

Technical Specifications


Material
316L stainless steel
Seal Material
FDA compliant (silicone,PTFE)
Rotational Speed
Up to 1800 RPM
Connection Type
Tri-Clover
Size Options
ND150,ND200,ND300
Cleaning Method
Easy-Clean/GMP Design
Dismantle for Cleaning
Without tools
Compliance
ATEX/ex-proof available
Frame Material
304 stainless steel
Surface Finish
180 grit (contact),150 grit (non-contact)

Operating Characteristics


Operating speed
Up to 1800 RPM
Size reduction capability
Macro size-reduction
Mode of operation
Continuous / Stand-alone
Cleaning method
Fully dismantled without tools
Installation type
In-line installation

Material Compatibility


Stainless Steel Compatibility
316L
FDA Material Compliance
Yes
Cleanability
Easy-Clean GMP Design
Corrosive resistance (e.g. acids)
Yes,with 316L stainless steel
Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Compact design
For in-line installation

Physical Characteristics


Machine footprint
Compact design
Material contact parts
316L stainless steel
Non-contact parts
304 stainless steel
Feed method
Tri-Clovers connection
Discharge method
Tri-Clovers connection
Inlet/outlet size
Round,full bore
Rotational speed
Up to 1800 RPM
Size options
ND150,ND200,ND300

Custom Options


Stainless Steel Grade
316L / 304
Rotational Speed
Up to 1800 RPM
Size Options
ND150,ND200,ND300
Disassembly
Tool-free
Connection Type
Tri-Clover
Material Finishes
180 grit contact parts,150 grit non-contact parts
Ex-proof Options
ATEX available
