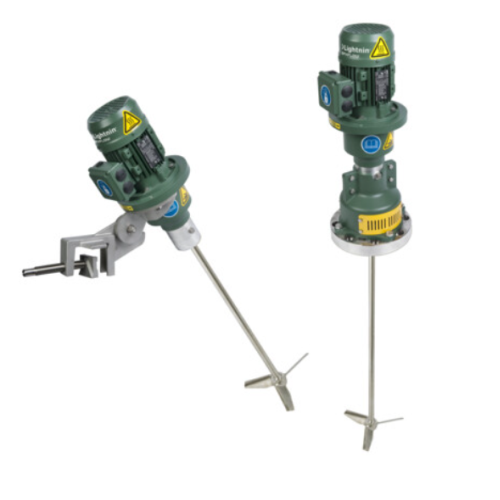

Portable and fixed mount mixing system

Optimize your mixing operations with a versatile system that adapts seamlessly between portable and fixed mount configurations, providing fast adjustments and reliable performance to enhance blending, pumping, and shearing tasks across complex production environments.

Mixes, Blends, Pumps, and Shears Industrial Materials

The Nettco i-Series mixer from SPX FLOW features a unique modular design that adapts to a wide range of mixing needs across chemical, beverage, paints, and plastic industries. This system is particularly notable for its customizable configurations, allowing for portable or fixed mounting and a selection of impeller styles to suit various applications, including solvent-based paints and dairy-based beverages.

At the core of the Nettco i-Series is a robust planetary gearing system, ensuring reliable performance in shearing, blending, and pumping tasks. The mixer accommodates tank sizes ranging from 0.1 to 20 m³ (25 to 5,000 gallons), offering shaft lengths up to 84 inches (2100 mm) for flexible application. Its washdown and inverter-ready motors deliver versatile energy efficiency, with optional air motor choices available for specific operational contexts.

Crafted with corrosion-resistant materials and food-grade lubricants upon request, the equipment satisfies rigorous industrial demands while maintaining ease of conversion between mounting types in under two minutes. Compliance with specific environmental conditions is assured, handling ambient temperatures between 32°F and 104°F, and in-tank temperatures up to 300°F for specialized models.

Additionally, the Nettco i-Series supports integration into OEM systems with comprehensive engineering support for customization, making it a valuable choice for industries focusing on operational cost-effectiveness and adaptability.

Benefits

  • Enhances mixing efficiency with adaptable mounting and impeller configurations.
  • Minimizes conversion time between setups, boosting production flexibility.
  • Reduces energy usage through inverter-ready motor design.
  • Provides robust performance in corrosive environments with stainless steel options.
  • Optimizes space with compact, modular design suitable for diverse industrial needs.

General


Applications
Beverages,Industrial applications,Chemical,Plastics,Paints
End products
Dairy-based beverages,Silicone sealants,Solvent-based paints,Adhesives,Polyethylene blends,Emulsions,Pvc compounds,Soft drinks
Steps before
Homogenization,Heat Transfer,Filtration,Separation
Steps after
Sterilization,Packing
Input ingredients
Output ingredients
Market info
SPX Flow is renowned for its expertise in manufacturing industrial ETO equipment, specializing in fluid handling and processing solutions. They are recognized for innovation, reliability, and providing efficient solutions across diverse industries, including food, beverage, and industrial markets.

Technical Specifications


Motor Power
1/2 - 3 HP (0.37 - 2.2 kW)
Shaft Speed (RPM)
1450,290,240 (50Hz) or 1750,350,280 (60Hz)
Shaft Length
Up to 84" (2100 mm)
Ambient Temperature Limits
32°F (0°C) to 104°F (40°C)
In-tank Temperature Limits Model P,Q
Max 200°F (93°C)
In-tank Temperature Limits Model L
Max 300°F (150°C)
In-tank Temperature Limits Model S
Max 250°F (121°C)
Tank Size Capacity
0.1 - 20 m³ (25 - 5,000 gal.)
Allowable Tank Pressure
Single dry-running mechanical seal good for 50 PSI (340 kPa)
Food Grade Lip Seal Pressure
Good for 25 PSI (170 kPa)

Operating Characteristics


Working Mechanism
Modular assembly design
Mounting Configuration
Clamp-on,open tank,sealed
Changeover Time
Less than two minutes
Batch vs. Continuous Operation
Batch
Shaft Speed Options
1450,290,240 RPM (50Hz)
1750,350,280 RPM (60Hz)
Temperature Limits
Ambient
Adjustable Mounting
0º to 20º vertical,0º to 90º horizontal adjustment
Head Modification Capability
Modular attachments

Material Compatibility


Corrosive resistance (e.g. acids)
Stainless Steel Construction
Cleanability
Washdown (IP55),food grade lubricant optional
Temperature resistance
Model P,Q Max 200 F (93 C),Model L Max 300 F (150 C),Model S Max 250 F (121 C)

Product type Characteristics


Container type
Open and closed tanks

Physical Characteristics


Shaft length
up to 84" (2100 mm)
Construction material
Aluminum,Stainless Steel
Weight
Light weight
Mounting configuration
Clamp-on,Open tank,Sealed tank
Shaft attachment
Reverse-taper

Custom Options


Mounting Type
Clamp,Fixed-Mount Open Tank,Fixed-Mount Closed Tank
Motor Options
1/2 - 3 HP (0.37 - 2.2 kW),Washdown (IP55),Inverter ready,Optional air motor
Impeller Styles
Hydrofoil,PBT,FP 100 (Marine Props)
Shaft Length
Up to 84" (2100 mm)
Temperature Limits
Ambient Min 32°F (0°C),Max 104°F (40°C)
In-tank Model P,Q Max 200°F (93°C),Model L Max 300°F (150°C),Model S Max 250°F (121°C)
Sealing Options
ANSI or DIN Flange,Single dry-running mechanical seal,Lip Seal
Material Construction
Stainless Steel construction to prevent corrosion
Food Grade Lubricant
Optional
Shaft Speed
1450,290,240 RPM (50Hz)
1750,350,280 RPM (60Hz)
Additional Seal Assembly
Sanitary Flange Mechanical Seal,Sanitary Flange Lip Seal
Bung Adaptor
Allows mixing in drums
Mounting Adjustment
0º to 20º vertical,0º to 90º horizontal
