Packaging solution for small bottles and jars

Effortlessly seal and fill non-stackable containers, ensuring precision for diverse product types—from liquid shampoos to powdered baby foods. Ideal for enhancing production efficiency in complex packaging setups.

Fills and Seals Non-Stackable Containers

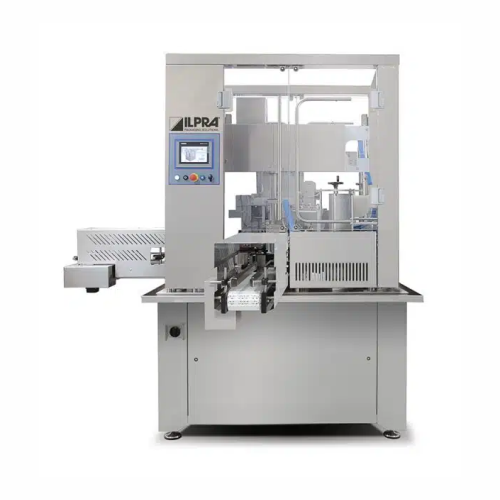

The Seal Box 300 and 400 from ILPRA Benelux are semi-automatic filling and sealing machines designed for packaging non-stackable containers such as small bottles, jars, and cups in the cosmetics and food industries. These machines stand out with their high-speed rotary operation, ensuring efficient sealing of diverse products ranging from face creams to yogurt tubs and pet food cans.

The Seal Box models integrate seamlessly into production lines with optional external dosing systems for precise filling. They accommodate various container diameters, with the Seal Box 300 handling up to 300 mm and the 400 up to 400 mm. Both models share a compact footprint of 191 x 162 x 232 cm and are capable of operating with a broad range of container types, enhancing flexibility in production.

Built with a focus on hygiene, each machine features a touch screen panel and optional ultra-cleaning systems, utilizing technologies like UVC lamps and hydrogen peroxide for enhanced sanitation. With electric power consumption of 6 kW for the 300 and 7 kW for the 400, these machines ensure reliable performance with energy efficiency. Support for customization and engineering adjustments ensures these machines meet specific production needs efficiently.

Benefits

  • Enhances production efficiency with high-speed rotary operation.
  • Maintains hygiene standards with optional ultra-cleaning systems.
  • Reduces labor input through semi-automatic operation.
  • Provides flexibility for diverse packaging needs with customizable dosing.
  • Ensures energy efficiency with optimized power usage.

General


Applications
Sauces,Ready meals,Powder-based products,Snacks,Pet food,Jars,Small bottles,Cosmetics,Dressings,Foods,Baby food,Dairy products
End products
Pre-packed salads,Mustard jars,Cat food pouches,Instant baby formula,Peanut butter jars,Yogurt tubs,Mayonnaise packets,Yogurt cups,Custard powder mixes,Face cream,Powdered protein supplements,Ready-to-eat pasta trays,Shampoo bottles,Pet food cans,Tomato ketchup
Steps before
Container Filling,Product Preparation
Steps after
Sealing,Labeling,Packing
Input ingredients
non-stackable packaging,small bottles,cosmetic containers,food containers,pre-filled containers
Output ingredients
sealed bottles,sealed jars,packaged cosmetics,packaged food items,sealed containers
Market info
ILPRA is known for manufacturing innovative packaging machines, specializing in tray sealers, thermoformers, and filling machines. They have a strong reputation for reliable and advanced technology catering to the food, medical, and industrial sectors.

Technical Specifications


Dimensions
191 x 162 x h 232 cm
Weight
circa 1000 Kg
Electric Power Film
6 kW - 7 kW
Ø Max Cups Film
300 mm - 400 mm
Max Height Cup
220 mm
Cycle Configuration
In accordance with format and product

Operating Characteristics


Automation level
Touch Screen Panel
Cleaning method
Fully washable
Batch vs. continuous operation
Batch / Inline Continuous
CIP/SIP
Optional Ultra Cleaning System

Physical Characteristics


Machine footprint
191 x 162 x h 232 cm
Weight
circa 1000 Kg
Max height Cup
220 mm
Ø Max Cups Film
300 mm / 400 mm
Control panel type
Touch Screen Panel
Rotary table
Yes
Fully washable
Yes

Custom Options


Touch Screen Panel
Yes
Rotary table
Yes
Fully washable
Yes
Optional
external doser
Inkjet Printer
Available
Ultra Cleaning System
UVC lamps,Pulsed Light,Hydrogen Peroxide
