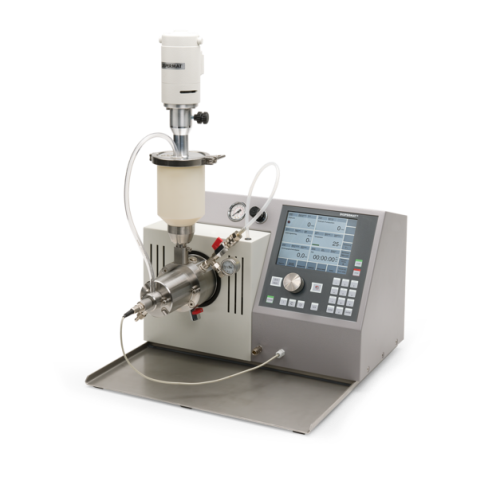

Nano bead mill for laboratory wet grinding
Achieve ultra-fine particle dispersion and consistent milling results with this high-performance nano bead mill, ensuring precise control for your laboratory’s wet grinding processes.
Mixes and Disperses Industrial Materials Efficiently
The DISPERMAT® SC4 series from VMA-GETZMANN offers precise mixing and dispersion solutions for industrial applications. What sets this equipment apart is its ability to achieve uniform particle distribution and control viscosity, essential for high-quality end products like crop protection sprays and lithium-ion battery anodes. Utilizing high-shear mixing and dispersion, it integrates seamlessly into existing production lines with PLC control and remote monitoring. With throughput capacities ranging from 30 to 2000 liters, these dissolvers efficiently handle batch and continuous operations. Available in both stainless steel and explosion-proof ATEX models, they ensure material compatibility and safety compliance. The compact design allows for easy cleaning and maintenance, while engineering support is on hand for customization needs such as rotor speed and chamber size adjustments.
Benefits
- Achieves consistent product quality with precision mixing and dispersion control.
- Minimizes operational costs through energy-efficient design and variable-speed motor optimization.
- Enhances production flexibility, handling a wide range of viscosities and material types.
- Ensures safety and compliance with ATEX-certified models for explosive environments.
- Simplifies maintenance and cleaning with a user-friendly compact design.
- Applications
- Sealants,Cosmetics,Ship paints,Road marking paints,Printing inks,Nanomaterials,Carbon materials,Conductive coatings,Food supplements,Artist colors,Agrochemicals,Technical ceramics,Polishing agents,Pharmaceuticals,Battery materials,Building coatings,Food additives,Anti-friction coatings,Adhesives,Automotive coatings,Special paints for wind turbines
- End products
- Exterior house paints,Reflective road markings,Digital inkjet inks,Marine antifouling paints,Diamond polishing slurry,Acrylic paints,Silver conductive ink,Vitamin d supplements,Quantum dots,Ibuprofen tablets,Recovered carbon black,Lip gloss,Lithium-ion battery anodes and cathodes,Anti-corrosion coatings for turbines,Crop protection sprays,Silicone sealants,Zirconia dental crowns,Teflon spray coating,Car clear coats,Epoxy adhesives
- Steps before
- Pre-mixing,Material feeding,Emulsification,Pre-grinding
- Steps after
- Quality assurance,Filling and packaging,Coating application,Final homogenization
- Input ingredients
- raw materials,anode materials,cathode materials,slurries,conductive additives,pigments,binders,spices,color pigments,fats and oils,food additives,nanoparticles
- Output ingredients
- homogeneous dispersions,anode and cathode materials,slurries,coatings,inks,paints,polished surfaces,food pastes,cosmetics,nano-scale products,emulsions
- Market info
- VMA-Getzmann is renowned for manufacturing high-quality dispersing, mixing, and milling equipment, particularly for the chemical, coatings, and inks industries, specializing in engineered-to-order solutions that emphasize innovation, reliability, and technical excellence.
- Power
- 0.3 - 55 kW
- Speed
- Up to 6000 rpm
- Product Capacity
- 0.05 - 2000 litres
- Control
- CN / C / SC / PLC
- Milling chamber volume
- 0.05 - 0.5 litres
- ATEX Certification
- Available (e.g.,-EX models)
- Automation
- PLC-controlled
- Batch size
- 30 - 2000 litres
- Vacuum capability
- Available
- Grinding system material
- ZrO2 / SiSiC / hard metal
- Compatibility
- Multiple materials
- Process control
- C Technology
- Working Mechanism
- Dissolver,Bead Mill,Basket Mill
- Integrated Steps
- Mixing,Dispersion,Grinding
- Control Options
- PLC,C Technology,Manual
- Automation Level
- Automatic,Semi-Automatic,Manual
- Batch vs. Continuous Operation
- Batch or Inline Continuous
- Changeover Time
- Quick-Change Systems Available
- CIP/SIP
- Easy-to-Clean,Manual Recommended
- Air Incorporation Control
- Vacuum Dissolvers Available
- Energy Efficiency
- Optimization for Low Power Consumption
- Abrasion resistance
- ZrO2 zirconium oxide
- Corrosive resistance (e.g. acids)
- SiSiC silicon carbide
- Density/particle size
- 0.05 - 2 litres
- Agglomeration risk
- High for powders
- Heat sensitivity
- Managed with vacuum systems
- Tank Size
- 30–2500 litres
- Discharge Method
- Pneumatic press out
- Control Panel Type
- C,PLC
- Control panel type
- CN / C / SC / PLC
- Integration possibilities
- USB,Wi-Fi (LAN expected in 2022)
- Modular design
- Quick-change systems,adaptable for larger beads
- Software interface
- WINDISP© 7
- Safety Standard
- ATEX
