Mixproof valve for cleaning-in-place control

Streamline your cleaning processes and ensure product safety with a versatile valve that prevents cross-contamination while managing complex cleaning-in-place (CIP) tasks.

Routes and Controls CIP Media Efficiently

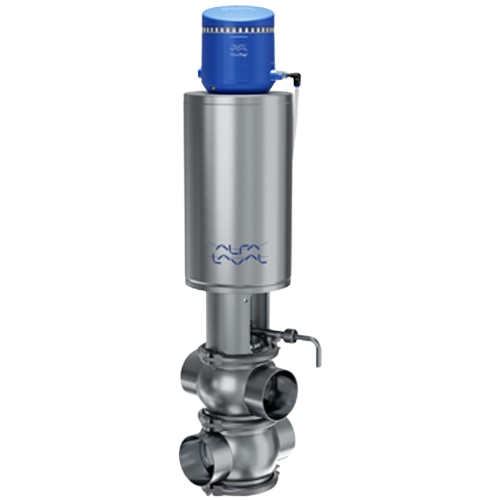

The Unique Mixproof CIP Valve from Alfa Laval is engineered to optimize hygienic processes by safely routing Cleaning-in-Place (CIP) media without risk of cross-contamination. This double-block-and-bleed valve is crucial for industries ranging from dairy to pharmaceuticals, providing robust separation of process fluids. It features a modular, self-cleaning design with a three-seal setup, ensuring reliability and minimal spillage during operations. The valve is pneumatic and can be remotely controlled, maintaining continuous, automated function. Available in various sizes to suit specific production needs, it enhances process flexibility and reduces water and CIP media consumption by up to 90% when integrated with Alfa Laval ThinkTop. Constructed from high-grade materials, it ensures durability and meets stringent industry compliance standards, making it a cost-effective solution for demanding hygiene-sensitive applications.

Benefits

  • Enhances product safety by preventing cross-contamination with a reliable double-block-and-bleed design.
  • Minimizes water and CIP media usage, reducing environmental impact and operational costs.
  • Increases process flexibility and efficiency through modular adaptability and integration capabilities.
  • Reduces maintenance requirements with a self-cleaning function and extended service intervals.
  • Supports compliance with hygiene standards, ensuring suitability for sensitive production environments.

General


Applications
Hygiene-sensitive products,Fine chemicals,Nutraceuticals,Processed foods,Biopharmaceuticals,Food and beverage,Soft drinks,Dairy,Pharmaceuticals
End products
Carbonated beverages,Vaccines,Milk,Active pharmaceutical ingredients (apis),Yogurt drinks,Herbal extracts,Liquid formulas,Ready-to-eat meals,Yogurt,Fruit juices,Dietary supplements
Steps before
Mixing,Homogenization,Product Loading
Steps after
Cleaning,Product Inspection,Packaging
Input ingredients
CIP media,cleaning fluids,compressed air,process fluid
Output ingredients
cleaned surfaces,drained leakage,sanitized surfaces,waste fluid
Market info
Alfa Laval is renowned for its expertise in heat transfer, separation, and fluid handling technologies, providing innovative, energy-efficient engineered-to-order solutions for various industries including food, marine, and energy.

Technical Specifications


Valve Type
Mixproof,Double seat
Automation
Pneumatically controlled
Operating Pressure
Up to required holding pressures with support air
Self-Cleaning
Yes
Orientation
Can be mounted upside down
Spillage Control
Minimized by three-seal design
Modular Design
Yes
Leakage Detection
Leakage chamber with outlet
Environmental Impact
Reduced water and media usage
Flow Control
Complete control of CIP media

Operating Characteristics


Working mechanism
Double-block-and-bleed valve
Automation level
Remote control with compressed air
CIP/SIP
CIP media routing
Cleaning method
Self-cleaning function
Batch vs. continuous operation
Inline operation
Leakage control
Three-seal design and leakage chamber
Mounting options
Can be mounted upside down
Spillage control
Minimizes spillage with three-seal design
Application flexibility
Modular design

Physical Characteristics


Machine footprint
Compact and adaptable to various applications
Modular design
Yes
Valve size availability
Various sizes
Mounting options
Standard and upside down
Material construction
Stainless steel (hygienic design)

Custom Options


Mounting options
Various sizes,upside down
Adaptability
Various applications,capacity requirements
