Mini bioreactor for cell culture and microbial process development

Achieve precise control and reproducibility in small-scale bioprocess development, optimizing resource use in bench-top environments with advanced measurement and control capabilities for cell culture and microbial applications.

Facilitates Parallel Bioprocess Development and Optimization

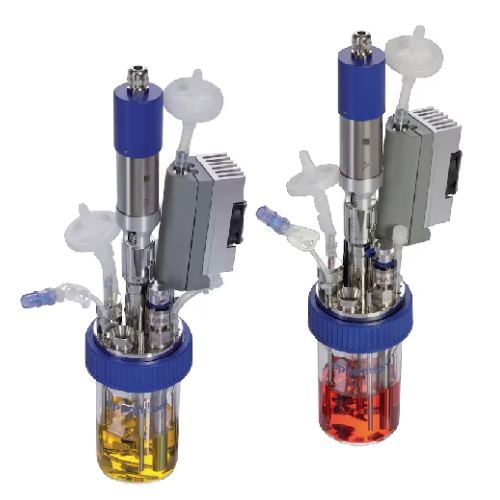

The DASbox® Mini Bioreactor from Eppendorf is designed for meticulous process development and optimization in biopharmaceutical and fine chemical manufacturing. Its industry-standard autoclavable glass vessel is equipped with a stainless steel head plate, enabling precise control with advanced sensors for temperature, pH, and dissolved oxygen. This bioreactor supports applications ranging from monoclonal antibody production to biofuel research, with a working volume of 60–250 mL, optimizing resource use and maintaining scalability. The direct overhead drive features either a marine or Rushton-type impeller, tailored for cell culture or microbial processes, respectively. Ideal for R&D and academic institutions, it allows parallel processing, reducing development time. Its liquid-free exhaust condenser facilitates easy operation with slide-in activation, ensuring simplicity in maintenance. No matter the application, the DASbox® Mini Bioreactor integrates seamlessly into a lab’s workflow, offering configurable options to meet specific project requirements.

Benefits

  • Optimizes resource utilization with minimal working volumes, saving valuable materials in process development.
  • Enhances process scalability and reproducibility, vital for transitioning from R&D to pilot-scale operations.
  • Reduces development time via parallel processing capabilities, enabling simultaneous experiments.
  • Ensures precise process control with integrated sensors, crucial for maintaining quality in bioproduction.
  • Simplifies maintenance and operation with a liquid-free exhaust condenser and easy-to-use design.

General


Applications
Cell culture,Biofuels,Fine chemicals,Microbial applications,Nutraceuticals,Biopharmaceuticals,Enzymes,Pharmaceuticals
End products
Amino acids,Vitamins,Ethanol,Vaccines,Biopolymers,Insulin,Monoclonal antibodies,Biodiesel,Recombinant proteins,Probiotics
Steps before
Media preparation,Cell line development,Strain selection,Culture inoculation
Steps after
Data analysis,Scale-up,Harvesting,Product purification
Input ingredients
cell culture media,microbial media,cell lines,microbial strains
Output ingredients
processed cell cultures,microbial cultures,optimized media,characterized strains
Market info
Eppendorf is known for manufacturing high-quality laboratory equipment, including pipettes, centrifuges, and bioprocessing tools. Renowned for their precision and reliability, Eppendorf's products are widely used in scientific research and clinical laboratories worldwide.

Technical Specifications


Working Volume
60–250 mL
Drive Type
Direct overhead drive
Impeller Type
Marine-type / Rushton-type
Material
Autoclavable glass vessel
Head Plate Material
Stainless steel
Control System
Fully instrumented with standard sensors
Sensor Compatibility
Temperature,pH,DO,and level
System Type
Parallel processing
Exhaust Condenser
Liquid-free
Activation Method
Automatic slide-in,slide-out

Operating Characteristics


Automation level
Fully automated with industry-standard advanced control
Batch vs. continuous operation
Batch
CIP/SIP
Autoclavable
Cleaning method
Manual / Autoclave
Process development in cell culture and microbiology
Yes
Parallel processing capability
Enabled with Eppendorf DASbox

Material Compatibility


Biological compatibility
Yes
Cleanability
Autoclavable
Corrosive resistance (e.g. acids)
Stainless steel

Product type Characteristics


Process Development
Cell Culture,Microbiology
Media Optimization
Yes

Physical Characteristics


Tank shape and size
60–250 mL working volumes,autoclavable glass vessel
Impeller type
Marine-type impeller / Rushton-type impellers
Head plate material
Stainless steel
Exhaust condenser type
Liquid-free with automatic slide-in/slide-out

Custom Options


Control panel type
Fully instrumented with standard sensors
Integration possibilities
Ready for use with Eppendorf DASbox
Impeller Type
Marine-type or Rushton-type
Drive Type
Direct overhead drive
