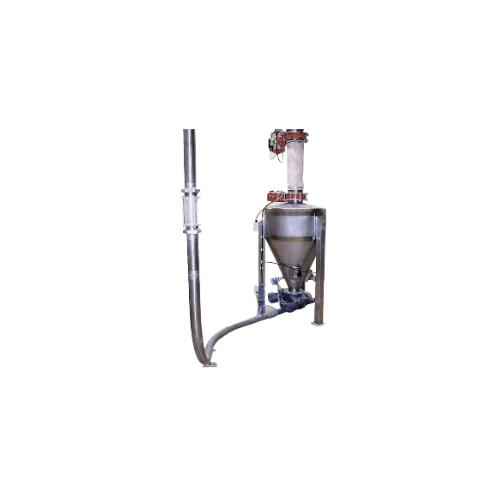

Lean phase vacuum conveying system for powder handling

Efficiently transport and separate powders and granules with precision using lean phase vacuum conveying, optimizing your production line by maintaining product integrity over medium distances while ensuring constant flow and minimal material degradation.

Conveys and Separates Powders and Granules

The Lean Phase Vacuum Conveying System from GEA Powder Handling is designed to efficiently transport powders and granules across medium distances. Employing positive displacement exhausters, this system operates under low to moderate vacuum pressures, ideal for conveying materials like pharmaceutical powders, powdered milk, and cosmetic powders. It operates continuously with a capacity of less than 10 tonnes per hour, ensuring smooth integration into existing production lines.

The system’s versatility makes it suitable for diverse industries, including pharmaceutical, food, and chemical sectors, conveying materials from multiple sources to a single destination. The lean phase design allows for cost-effective pipeline installation, thanks to lower operating pressures. Constructed with durable materials, it provides options like stainless steel for environments requiring chemical resistance.

GEA’s lean phase system supports seamless integration with remote monitoring and control capabilities, enhancing operational efficiency. It complies with industry standards, ensuring safe and effective handling of sensitive materials. The system is also engineered for easy cleaning, with features like a rotary valve feeder that simplifies maintenance and reduces downtime.

Benefits

  • Enhances operational efficiency with continuous, low capacity conveying.
  • Reduces installation and operating costs with lower pressure pipeline requirements.
  • Adapts to diverse material types, meeting the needs of multiple industries.
  • Simplifies maintenance and cleaning, minimizing production interruptions.
  • Offers reliable material handling with precise vacuum control.

General


Applications
Food,Chemicals,Personal care,Gas and energy,Pharmaceutical powder,Beverage,Oil,Pharma,Environment,Healthcare,Home,New food,Dairy
End products
Healthcare supplement powders,Powdered milk,Detergent powders,Protein powders,Cosmetic powders,Oil refining catalysts,Pharmaceutical tablets,Plant-based protein powders,Baking powder,Instant coffee granules,Fertilizer granules
Steps before
Grinding,Feeding,Metering
Steps after
Filtering,Separation,Discharging
Input ingredients
materials,product,particle,multiple points,silica,silos
Output ingredients
filtered air,separated product,single destination,receiving vessel,collection point
Market info
GEA is known for its expertise in engineering innovative and sustainable equipment and solutions, focusing on sectors such as food, beverages, pharmaceuticals, and energy, with a reputation for quality, efficiency, and advanced technological applications in industrial processing.

Technical Specifications


Operating Pressure
<50% vacuum
Convey Rates
< 10 tonnes/h
Convey Distances
up to 100 m
Air mover
positive displacement (Roots Type) exhauster or fan

Operating Characteristics


Conveying Mechanism
Lean phase vacuum
Vacuum Generation
Positive displacement exhauster
Flexibility
Low to moderate capacity
Conveying Distance
Up to 100 m
Material Separation
Filtered at receiving vessel
Flow Type
Continuous or intermittent
Adaptability
Suitable for multiple points to a single destination
Operation Pressure
Up to 50% vacuum
Pneumatic System
Fan-based or exhauster-based

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Conveying method
Lean phase vacuum

Physical Characteristics


Feed method
Direct entry / Rotary valve / Screw feeder
Discharge method
Rotary airlock / Intermittent valves

Custom Options


Air mover type
Positive displacement exhauster / Fan
Material feeding device
Rotary valve / Screw feeder
