Laboratory vibratory feeder for uniform material feed

Achieve precise, uniform feeding of fine powders and granules in laboratory settings, ensuring consistent sample quality and reliable downstream analysis without manual intervention.

Feeds and Conveys Materials Uniformly

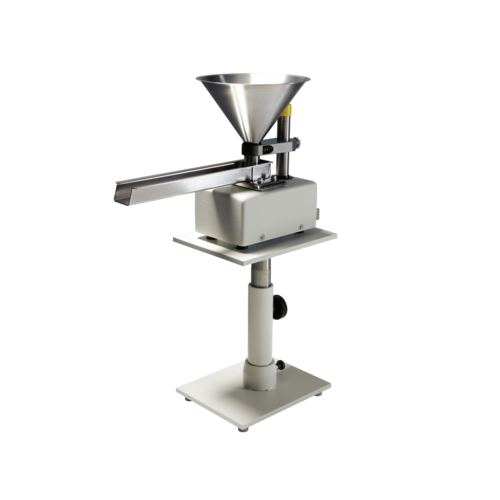

The LABORETTE 24 Vibratory Feeder from FRITSCH GmbH is designed for precise and automatic delivery of free-flowing materials into laboratory equipment like mills, mixers, and sample dividers. It features a microprocessor-controlled vibratory system, delivering uniform feed rates from 5 g/min to 2,500 g/min via a U-shaped stainless steel channel. This feeder is ideal for processing a wide range of laboratory samples, including green tea powder and pharmaceutical powders, ensuring accurate particle sizing and uniform mixing. Its compact design includes easily removable components for stress-free cleaning and maintenance, while its low energy consumption of just 0.1 kW makes it energy-efficient. The system is customizable with optional PTFE coatings and is adaptable to various laboratory setups with its adjustable and rotatable stand. Perfect for applications in the food, chemical, pharmaceutical, and material science sectors, the LABORETTE 24 is integrated seamlessly into continuous, automatic laboratory operations, supported by FRITSCH’s comprehensive engineering and customization options.

Benefits

  • Enhances sample accuracy with uniform feeding, crucial for precise analysis and research.
  • Saves energy costs with low power consumption of only 0.1 kW.
  • Simplifies maintenance with easy-to-clean, removable components.
  • Adapts to various materials and lab setups with customizable channel options and adjustable stand.
  • Increases productivity by automating feeding processes, reducing manual intervention.

General


Applications
Laboratory mixers,Particle sizing,Sample preparation,Laboratory sample dividers,Grinding,Laboratory instruments,Laboratory mills,Sieving,Dividing,Green tea leaves,Fine and coarse material handling,Feeding,Milling
End products
Fine chemical powders,Ground cereal grains,Particle size distribution samples,Uniform powder mixtures,Powdered pharmaceuticals,Green tea powder,Laboratory-grade powders,Powdered pigments,Mineral samples
Steps before
Grinding,Sample collection
Steps after
Dividing,Mixing,Particle sizing
Input ingredients
free-flowing materials,sample material,coarse and fine materials
Output ingredients
uniform stream,wide material feed,representative sample
Market info
Fritsch is renowned for manufacturing high-quality, engineered-to-order laboratory instruments for sample preparation and particle sizing in research and industrial laboratories, with a strong reputation for precision, innovation, and reliability.

Technical Specifications


Feed rate
5–2,500 g/min
Automation
Microprocessor-controlled
Material Channel
Stainless steel
Energy Consumption
0.1 kW
Drive Type
Electromagnetic
Flow Rate Control
Adjustable

Operating Characteristics


Working mechanism
Vibratory feeder with U-shaped channel
Feed adjustment
Individually adjustable flow rate
Automation level
Microprocessor-controlled
Flow control
Vibration amplitude adjustment
Maintenance
Maintenance-free
Cleaning method
Simple to clean

Material Compatibility


Abrasion resistance
Stainless steel construction
Cleanability
Polished stainless steel,easy to clean
Corrosive resistance (e.g. acids)
Suitable for non-corrosive materials
Density/particle size
Free-flowing materials

Physical Characteristics


Footprint
Compact
Channel Shape
U-shaped
Material
Stainless Steel
Mounting Type
Slip-resistant stand
Channel Type
Interchangeable with V-shaped
Control Panel Type
Separate control unit
Material Bed Height
Variable

Custom Options


Control Unit Type
Microprocessor-controlled
Vibration Amplitude Control
Adjustable
Channel Type
U-shaped / V-shaped
Drive Type
Electromagnetic
Material Flow Rate
5 g/min - 2500 g/min
Channel Material
Stainless Steel
PTFE Coating
On request
Stand Type
Infinitely height-adjustable
