Laboratory stirrer for high-viscosity materials

Streamline your laboratory mixing processes with a powerful stirrer designed for rapid homogenization of high-viscosity materials, ensuring consistent and reliable results for various formulations.

Mixes and Homogenizes High Viscosity Liquids

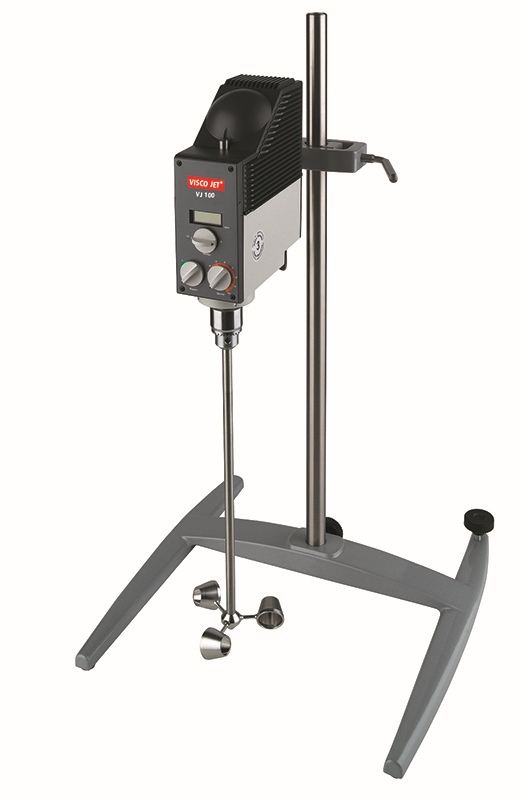

The VISCO JET VJ100 from VISCO JET Rührsysteme GmbH is a robust laboratory stirrer designed for precise mixing of liquids across a wide range of viscosities. Equipped with a torque-strong drive and seamless speed adjustment up to 2,000 RPM, it excels in applications such as ceramics, cosmetics, pharmaceuticals, and petrochemical processing. Ideal for container volumes up to 20 liters, the VJ100 enhances workflow efficiency with features like a digital control interface and quick-change coupling for fast transitions between tasks. Its energy-efficient motor minimizes power consumption, and materials are engineered for durability and chemical resistance. Integration into current laboratory settings is simplified with USB and RS232 connectivity, while built-in safety features ensure operational confidence. Optional accessories and various stirring tools provide customization flexibility, making the VJ100 an adaptable choice for diverse laboratory needs.

Benefits

  • Enhances production efficiency with rapid mixing and reduced setup times.
  • Saves energy costs with an optimized motor and variable speed control.
  • Ensures consistent product quality with precise homogenization across liquid viscosities.
  • Streamlines data management and process documentation via USB and RS232 interfaces.
  • Offers operational safety and reliability with built-in limits on speed and torque.

General


Applications
Food,Beverages,Ceramics,Chemicals,Dairy products,Coatings,Cosmetics,Sweets,Petrochemicals,Soaps,Mining,Paints,Paper manufacturing,Pharmaceuticals
End products
Mineral slurries,Ceramic glazes,White printing paper,Lubricant oils,Cough syrup,Industrial adhesives,Mozzarella cheese,Wall paint,Bar soaps,Yogurt,Skincare creams,Chocolate candies,Industrial coatings,Fruit juices
Steps before
Mixing,Dissolving,Premixing
Steps after
Filling,Sampling,Quality Control
Input ingredients
niedrigviskose Medien,mittelviskose Medien,hochviskose Medien,Keramik,Kosmetik,Seifen,Süßigkeiten,Lebensmittel,Getränke,Papierherstellung,Milchprodukte,Farben,Lacke,Chemie,Pharma,Bergbau,Petrochemie
Output ingredients
niedrig- bis hochviskose gemischte Medien,reproduzierbare Prozesse,dokumentierbare Mischungen,gleichbleibende Produktqualität
Market info
Visco Jet Ruhrsysteme is known for manufacturing advanced mixing and stirring equipment, particularly industrial agitators, which are engineered-to-order for various industries. Their expertise lies in efficient and tailored mixing solutions with a strong reputation for innovation and quality.

Technical Specifications


Drive power (input/output)
120/80 W
Adjustable speed
Up to 2,000 U/min
Torque
200 Ncm
Viscosity range
Up to 100,000 mPas
Container diameter
Up to 250 mm
Container volume
Up to 20 Liters
Display size
3.2″ digital
Interface
USB and RS232
Dimensions (Drive W/D/H)
86 x 247 x 340 mm
Dimensions (Stand D/L)
25 x 700 mm
Dimensions (Shaft D/L)
10 x 500 mm
Voltage supply
230 V

Operating Characteristics


Rührantrieb
Drehmomentstarker Antrieb mit stufenloser Drehzahlverstellung
Drehzahlbereich
Bis zu 2.000 U/min
Datenexport Schnittstellen
RS232 und USB
Rührorgan Flexibilität
Kombinierbar mit allen VISCO JET® Rührorganlösungen
Sicherheitsfunktionen
Drehzahl- und Drehmomentbegrenzung
Antriebskraft
200 Ncm für Viskositäten bis 100.000 mPas
Display und Bedienung
Digitales 3,2" Display mit Favoritenspeicher und Intervallbetrieb
Rüstzeit
Schnellwechselkupplung

Material Compatibility


Abrasion resistance
Suitable
Biological compatibility
Compatible with various lab materials
Corrosive resistance (e.g. acids)
Resistant
Density/particle size
Compatible with 0.5–2.5 g/cm³ / 50–1000 µm
Cleanability
Easy to clean

Product type Characteristics


Viscosity range
Low to high viscous media
Container size
Up to 20 Liters
Container diameter
Up to 250 mm
Mixing media type
Various viscosity levels
Heat sensitivity
With temperature monitoring

Physical Characteristics


Machine Footprint
86 x 247 x 340 mm
Stativ Dimensions
25 x 700 mm
Welle (shaft) Dimensions
10 x 500 mm
Container Size Compatibility
up to 250 mm diameter

Custom Options


Control panel type
Digital 3.2″ display
Stirring speed adjustment
Stepless up to 2000 RPM
Height adjustment
Adjustable H-Form stand
