Laboratory cone mill for even grinding
Achieve consistent particle size for laboratory powders with precision calibration and grinding, optimizing your production process for uniformity in pharmaceutical and supplement manufacturing.
Calibrates and Grinds Powders and Granules

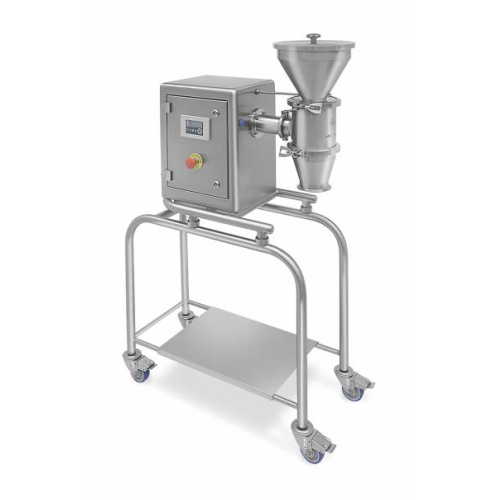

The Laboratory Cone Mill from Cos.Mec is a precision-engineered equipment designed for efficient calibration and milling of both dry and wet powders and granules. Its unique conical screen and rotating blade mechanism ensure uniform grinding, making it ideal for pharmaceutical, chemical, and food industry applications, such as paracetamol tablets and herbal supplements. This bench-top solution supports flexibility with an inverter for rotation speed adjustment and complies with EC and cGMP regulations, guaranteeing safety and quality. Made with mirror-polished AISI 316L parts, it offers exceptional corrosion resistance and easy cleaning, including autoclavable components for maintaining hygienic conditions. The compact design enables seamless integration into restricted spaces, with optional configurations available for explosion-proof environments or additional support structures.
Benefits
- Enhances product consistency by ensuring uniform particle size distribution.
- Minimizes cleaning time with easy-to-clean and autoclavable components.
- Reduces space requirements with a compact, tabletop design.
- Increases operational flexibility with adjustable rotation speed.
- Complies with stringent EC and cGMP standards for industry assurance.
- Applications
- Chemicals,Food,Supplements,Laboratory powders,Nutraceuticals,Granulates,Pharmaceuticals
- End products
- Instant soup mix,Vitamin c granules,Effervescent tablets,Herbal supplements,Protein powder,Encapsulated fish oil,Paracetamol tablets
- Steps before
- Purification,Drying,Emulsification,Pre-Grinding
- Steps after
- Calibration,Sterilization,Packing,Quality Control
- Input ingredients
- dry products,wet products,various granule sizes
- Output ingredients
- calibrated products,even grind
- Market info
- Cos.Mec is known for manufacturing industrial engineered-to-order (ETO) equipment, specializing in turnkey solutions for powder handling, processing, and finishing. They have a strong reputation for quality, innovation, and dedicated customer service in the pharmaceutical and chemical industries.
- Material in contact
- AISI 316L
- External material
- AISI 304
- Mechanical seals
- St. st./PTFE
- Screen type
- Conical with variable hole size
- Speed adjustment
- Inverter-controlled
- Design standards
- EC and cGMP regulations
- Ex-proof version
- ATEX directive compliance
- Temperature resistance
- Autoclavable parts
- Size
- Compact tabletop design
- Cleaning method
- Easy to clean
- Screen replacement
- Fast replacement
- Working mechanism
- Rotating blade crushes product onto screen
- Batch vs. continuous operation
- Batch
- Screen replacement time
- Fast
- Cleaning method
- Easy to clean
- Automation level
- Inverter for rotation speed adjustment
- Cleanability
- Easy to clean
- Corrosive resistance (e.g. acids)
- AISI 316L
- Density/particle size
- 0.5–2.5 g/cm³ / 50–1000 µm
- Product range
- Wide range
- Machine footprint
- Compact design
- Screen shape
- Conical
- Discharge method
- Total discharge facilitated by conical shape
- Installation type
- Tabletop machine
- Material of construction
- AISI 316L for parts in contact with product,AISI 304 for external parts
- Screen replacement ease
- Fast screen replacement
- Support type
- Trolley or fixed support
