Jet mill for toner and pigment industries

Optimize particle size and distribution for high-demand applications with this high-precision jet milling solution, designed for rapid product changes and easy maintenance.

Processes Ultrasonic Particle Size Reduction

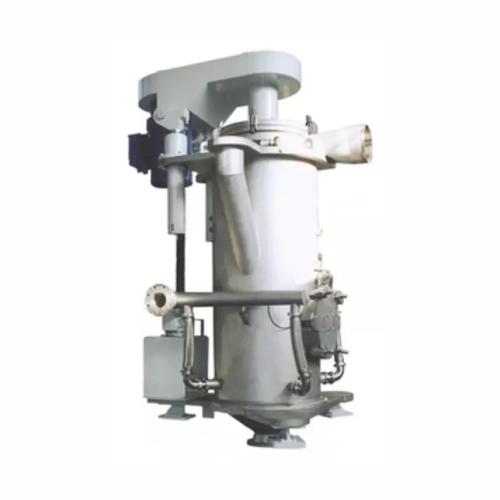

The TFG Fluidized Bed Opposed Jet Mill from Hosokawa Alpine is engineered for precise milling in the toner, powder coating, and pigment industries. Utilizing a unique high-velocity gas flow mechanism, it achieves exceptional fineness by leveraging interparticle collisions. Ideal for processing a range of applications—including lithium-ion battery cathode materials, protein-enriched flours, and pharmaceutical powders—this mill ensures consistent particle size distribution. Capable of handling continuous operations at high speeds, the TFG integrates seamlessly with existing production lines through PLC automation and dynamic air classifying systems. It boasts Megajet nozzles for energy-efficient grinding, reducing gas consumption while maximizing particle impact rates. Available in stainless steel with a polished finish, the system meets stringent industry standards and offers easy access for cleaning and maintenance. Customizable with various classifying wheel options, the TFG is supported by Hosokawa’s expert engineering team for tailored solutions and integration.

Benefits

  • Achieves superior particle fineness through innovative jet milling, enhancing product quality consistency.
  • Reduces operational costs with energy-efficient Megajet nozzle technology.
  • Ensures rapid product changeovers with easy-clean design, minimizing production downtime.
  • Offers flexibility with customizable configurations for diverse industrial applications.
  • Complies with strict industry standards, ensuring safe handling of chemical and pharmaceutical products.

General


Applications
Sugar and sweeteners,Dishwashing powder,Dry flue gas cleaning,Post consumer recycling,Cosmetics,Lithium-ion batteries,Toner,Crop protection agents,Lactose and dairy products,Recycling composite materials,Pigments,Technical ceramic,Powder coating,Talc,Recycling extruded materials,Tea and roots,Fertiliser,Medicinal herbs,Luxury foods,Additive manufacturing metal,Spices,Recycling plastic mouldings,Animal feed,Additive manufacturing polymer,Titanium dioxide,Industrial wax,Recovered carbon black,Special flours,Cell culture media,Cocoa processing,Grinding of rubber,Calcium carbonate,Api - inhaler,Lignin,Thickening agents,Protein shifting,Hard minerals,Tablets
End products
Facial powder,Gourmet chocolate,Fiber-reinforced composites,Rubber crumb for playgrounds,Laser printer toner,Powdered sugar,Carnauba wax,Animal feed pellets,Acrylic paints,Lignin for biofuels,Ground calcium carbonate,Cocoa butter,Compressed tablets,Guar gum,Molded plastic parts,Milled talc,Enzymatic dishwashing detergent,Glyphosate,Camomile extract,Green tea powder,Ammonium nitrate,Protein-enriched pea flour,Sodium bicarbonate for flue gas treatment,Recycled rubber mulch,Powdered turmeric,Gluten-free flour,Extruded plastic profiles,Nutrient media for cell culture,Metal 3d printer powders,Polymer filaments,Cathode and anode materials,Recycled polyester,Epoxy powder coating,Lactose powder,Titanium dioxide for paint,Carbon black for tires,Asthma inhaler medication,Alumina ceramics
Steps before
Grinding,Pre-crushing,Pneumatic conveying
Steps after
Classifying,Packaging,Lab analysis
Input ingredients
toner,powder coating,pigments,compressed gas,air
Output ingredients
fine powders,classified particles,toner particles,coating powder,pigment particles
Market info
Hosokawa Alpine is known for its expertise in manufacturing advanced process equipment and systems for powder and particle processing technology. It has a strong reputation for innovation, quality engineering, and customer-focused solutions in various industries.

Technical Specifications


Exit Velocity
Above the speed of sound
Nozzle Exit Speeds
Around 500 m/s
Pressure-shock-proof
10 bar overpressure
Operating Pressure
6 bar overpressure
Gas Temperature
20°C
Material
Stainless steel,polished finish

Operating Characteristics


Working mechanism
Jet milling with dynamic classifier
Batch vs. continuous operation
Batch
Cleaning method
CIP / Manual
Automation level
Manual / PLC
Changeover time
Quick change for cleaning
Energy efficiency
High due to Megajet nozzles

Material Compatibility


Cleanability
High accessibility for cleaning
Density/particle size
50–1000 µm

Product type Characteristics


Agglomeration risk
Yes/No


Pressure-shock-proof certification
10 bar overpressure

Physical Characteristics


Grinding chamber shape
Flat bottom
Discharge method
Via nozzles

Custom Options


Control panel type
HMI/PLC
Integration possibilities
Modular connectivity
Hydraulic mechanism
Classifier head lifting
Material finish
Stainless steel,polished
Wear protection
Classifying wheel
