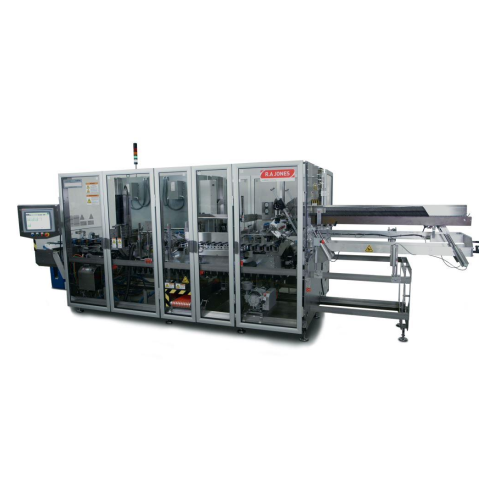

Intermittent end load cartoner for baked goods and snacks

Optimize your packaging line with an efficient, space-saving cartoner that ensures precise loading and closing of diverse products, simplifying your production process while maintaining high throughput.

Packs and Loads Cartons Efficiently

R.A. Jones introduces the Criterion CMI-160, an intermittent motion end load cartoner designed to enhance your packaging line efficiency. By integrating the product collator directly into the main machine frame, this model eliminates the need for an additional bucket conveyor, streamlining the packaging process for a wide range of food and pet food applications.

It handles solid and powder products, packaging them into cartons with precision. The CMI-160 operates by intermittently opening, loading, and closing two or more cartons per cycle, making it ideal for products like infant formula, granola bars, and dry dog kibble. With a processing capability of up to 160 cartons per minute, this cartoner supports continuous or intermittent production modes to match your line’s needs.

Automated through advanced PLC control, it ensures seamless integration into existing operations, while the use of glue sealing provides secure packaging. Its compact footprint allows for easy placement on the production floor, and with maintenance-friendly access, it’s designed for durability and minimal downtime. The Criterion CMI-160 meets industry standards, making it a robust choice for manufacturers in the food and pet care industries seeking to optimize their packaging processes.

Benefits

  • Enhances operational efficiency by processing up to 160 cartons per minute.
  • Streamlines packaging with direct load integration, reducing equipment footprint.
  • Increases flexibility with support for continuous and intermittent operations.
  • Ensures product safety with reliable glue sealing in diverse applications.
  • Minimizes maintenance downtime with easy access design.

General


Applications
Baked goods,Biscuits,Sugar,Snacks,Pet food,Bars,Crackers,Spices,Chocolate,Baby food,Salt
End products
Granola bars,Protein snack bars,Infant formula,Tortilla chips,Brown sugar packs,Ground cinnamon,Shortbread cookies,Cheese crackers,Dry dog kibble,Milk chocolate bars,Sea salt packets
Steps before
Mixing,Blending,Product Collating
Steps after
Packing,Wrapping,Labeling
Input ingredients
baby food,baked goods,biscuits,crackers,chocolate,salt,sugar,spices,bars,snacks,pet food
Output ingredients
prefolded cartons,carton boxes
Market info
R.A Jones (Coesia Group) is known for its expertise in designing and manufacturing packaging equipment and automation solutions, specializing in cartoning, pouching, and high-speed filling, with a strong reputation for innovation and reliability in the industry.

Technical Specifications


Machine depth
4500 mm
Machine height
2120 mm
Machine length
6530 mm
Machine weight
4500 kg
Pack height
130–254 mm
Pack length
50–254 mm
Pack width
32–114 mm
Packaging closing
Glue
Packaging material
Paperboard
Packaging orientation
Horizontal
Packaging type
Prefolded Carton,Carton box
Performance
Up to 160 cpm
Insertion mode
End Load/Side Load
Operating mode
Continuous
Machine Centers
4",6",12"

Operating Characteristics


Working mechanism
Intermittent end load
Product collator integration
Integrated into main machine frame
Automation level
Automatic
Cycle operation
Two or more cartons per cycle

Material Compatibility


Packaging material
Paperboard

Product type Characteristics


Industry
Food,Pet Care
Product Segment
Baby Food,Baked Goods,Biscuits,Crackers,Chocolate,Salt,Sugar,Spices,Bars,Snacks,Pet Food

Physical Characteristics


Machine depth
4500 mm
Machine height
2120 mm
Machine length
6530 mm
Machine weight
4500 kg

Custom Options


Discharge method
End Load/Side Load
