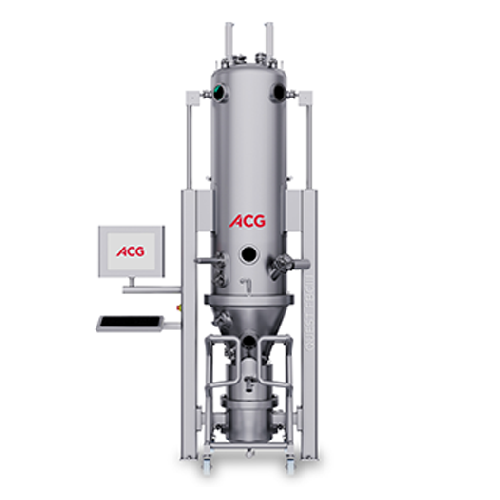

Intermediate-scale fluid bed system for drying and granulation

Achieve precise drying and granulation with this versatile fluid bed system, perfect for pilot and intermediate-scale operations where accurate process parameter control is essential.

Processes Powders and Granules through Drying and Granulation

The QUEST FB III X•ONE from ACG is an intermediate-scale fluid bed combo system that excels in drying, granulation, and coating processes for powder and granule production. It utilizes a flexible fluidization method to optimize particle interaction, making it ideal for producing oral tablets, film-coated tablets, and various capsules. Capable of handling volumes from 12 to 55 liters, it supports pilot and batch operations with a seamless scale-up from R&D to commercial production. The system is PLC-controlled for precision and integrates easily into existing lines. Its energy-efficient design reduces consumption significantly, while 12-bar-rated inflatable seals ensure durability and operational safety. Constructed with corrosion-resistant materials, the equipment meets ATEX and FSAN certifications, ensuring compliance with global safety standards. The system’s integrated CIP features facilitate efficient and sterile cleaning, minimizing downtime. Additionally, ACG offers customization to tailor the equipment precisely to specific production needs, supported by their comprehensive engineering expertise.

Benefits

  • Enhances yield and efficiency with state-of-the-art filter systems that prevent clogging.
  • Lowers operational costs through energy-efficient design and reduced compressed air consumption.
  • Ensures maximum safety with 12-bar pressure resistance and non-vented containment.
  • Streamlines maintenance with easy access to integrated components, reducing downtime.
  • Facilitates precise process control and compliance with ATEX and GAMP 5 standards.

General


Applications
Supplements,Vitamins,Fine chemicals,Nutraceuticals,Coating materials,Pharmaceuticals
End products
Protein powders,Softgel capsules,Vitamin c tablets,Probiotic capsules,Film-coated tablets,Fish oil capsules,Herbal supplements,Allergy medication,Oral tablets,Pain relief tablets
Steps before
Material Preparation,Mixing,Wet Granulation
Steps after
Drying,Wurster Coating,Tablet Compression,Packing
Input ingredients
Output ingredients
Market info
ACG World is known for manufacturing capsules and capsule filling machines, providing integrated pharmaceutical solutions with a strong reputation for innovation, quality, and comprehensive service offerings in the pharmaceutical manufacturing industry.

Technical Specifications


Working volume for Top-spray granulation
12 l - 55 l
Working volume for Wurster coating
5 l - 25 l
Pressure resistance
12 bar
Inflatable seal pressure rating
12 bar
Minimum operating pressure for seals
4.5 bar
Compressed Air Usage
Lower compressed air consumption

Operating Characteristics


Automation level
Manual / PLC / SCADA
Batch vs. continuous operation
Batch
CIP/SIP
CIP 121°C
Cleaning method
CIP / Manual
Energy efficiency
0.5–2 kWh/kg moisture

Material Compatibility


Abrasion resistance
High
Biological compatibility
Yes
Cleanability
Easy to clean
Corrosive resistance (e.g. acids)
Good
Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Drying
Yes
Wet Granulation
Wurster,Top-spray,Tangential-spray

Custom Options


Control panel type
Adjustable
Integration possibilities
X•ONE command process control system
Inflatable seals
C-flanged X•ONE inflatable seals
Pressure resistance
12-bar pressure shock resistant
