Intermediate bulk container (ibc) blending for pharmaceutical manufacturing

Streamline your pharmaceutical blending process with robust IBC technology, ensuring uniform powder mixing and enhanced process control while maintaining product integrity and reducing contamination risks.

Blends and Homogenizes Pharmaceutical Powders and Granules

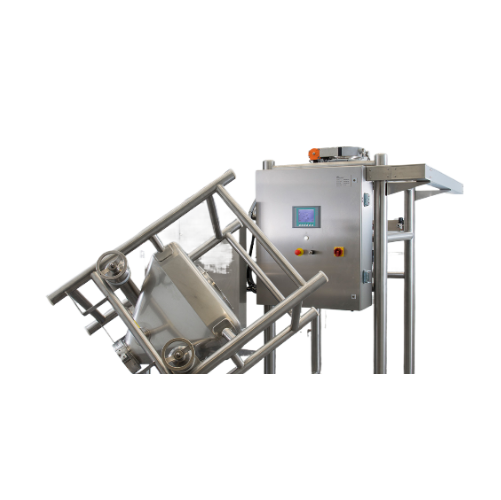

GEA’s IBC Blenders offer robust solutions for pharmaceutical powder processing, featuring designs like the Pedestal Blender and SP30 Laboratory Blender. These units ensure homogeneous blending using GEA’s unique Prism technology, optimizing batch quality and efficiency. Suitable for producing paracetamol tablets, vitamin supplements, and biopharmaceutical products, they serve both production and R&D facilities. The Pedestal Blenders handle volumes up to 3000 L, using air-driven screw jacks for secure, continuous operation without utility interruptions. They incorporate comprehensive control systems, such as Siemens S7 PLCs, ensuring precision and reduced downtime. The equipment is designed for GMP compliance, with options for stainless steel construction to support cleanroom environments. For process analytics, PAT technologies, including NIR systems, enhance real-time process monitoring and control. Integrating seamlessly into existing production lines, these blenders support both pilot and full-scale manufacturing processes, providing energy-efficient, low-maintenance solutions customizable to specific production needs.

Benefits

  • Enhances product consistency and quality with precise, homogeneous blending.
  • Minimizes contamination risks through secure, fail-safe clamping and isolation design.
  • Reduces operational costs with energy-efficient motor control and minimal maintenance requirements.
  • Facilitates scale-up from lab to full production with adaptable volume capacities.
  • Ensures regulatory compliance with GMP and FDA standards.

General


Applications
Supplements,Fine chemicals,Pharmaceutical tablets,Nutraceuticals,Pharmaceutical powder,Biopharmaceuticals
End products
Fish oil supplements,Vitamin c tablets,Antioxidant supplements,Ibuprofen powder,Api (active pharmaceutical ingredient) granules,Protein supplements,Biopharmaceutical monoclonal antibodies,Omega-3 capsules,Paracetamol tablets,Ascorbic acid powder
Steps before
Product Handling,Granulation,Pre-Blending
Steps after
Discharge,Milling,Roller Compaction,Packaging
Input ingredients
granules,powders,dry powders,granular material,pharmaceutical materials
Output ingredients
homogenous product blend,blended granules,blended powders,dry blend,direct compression formulations
Market info
GEA is known for its expertise in engineering innovative and sustainable equipment and solutions, focusing on sectors such as food, beverages, pharmaceuticals, and energy, with a reputation for quality, efficiency, and advanced technological applications in industrial processing.

Technical Specifications


Automation
PLC-controlled,21 CFR Part 11-compliant
IBC Volume
Up to 3000 L
Max. Working Load
900kg-2500kg depending on model
Drive Motor Power
4.0 kW - 15 kW
Clamping System
Pneumatically operated screw jacks
Control Systems
Siemens S7 Series PLC,Allen Bradley FlexLogix PLC
Airtight Wall Plate
Supplied
Blending Prism Technology
Low shear mixing
Swinging Arms Feature
Enables range of IBC volumes
Process Analytical Technology
Light Induced Florescence (LIF) or Near-Infrared (NIR)
Pedestal Design
Single and Double Pedestal

Operating Characteristics


Working Mechanism
Rotating IBC with blending Prism
Automation Level
User-friendly PLC-controlled system
Batch vs. Continuous Operation
Batch
CIP/SIP
Cleaning in Place,GEA Wash Station
Blending Speed Control
Variable Speed Drive
Integrated Steps
Blending,PAT analysis
Safety Features
Air-driven screw jacks,positive IBC detection
Energy Efficiency
0.5-2 kWh/kg of process
Changeover Time
Efficient due to fast loading/unloading
Product Containment
Improved containment and batch integrity
Blending Method
Homogenous blending with Prism

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Machine Footprint
Varies depending on model (e.g.,SP1000,DP3000)
IBC Size
700L to 3000L
IBC Footprint
1125mm x 1325mm to 1350mm x 1590mm
Control Panel Type
Siemens or Allen Bradley
Container Type
IBC
Drive Motor
4.0 Kw to 15 Kw
Discharge Method
IBC-to-IBC,Gravity Discharge
Compact Footprint
Through-the-Wall Design
Pedestal Type
Single or Double Pedestal
Max Working Load
900kg to 2500kg

Custom Options


Control panel type
Siemens S7 Series PLC,Allen Bradley FlexLogix PLC
Variable speed drive
Danfoss VLT Series
Process Analytical Technologies
Light Induced Fluorescence (LIF),Near-Infrared (NIR) systems
Blending Prism
Low shear mixing for homogenous blending
Swinging Arms
Handles various IBC volumes
