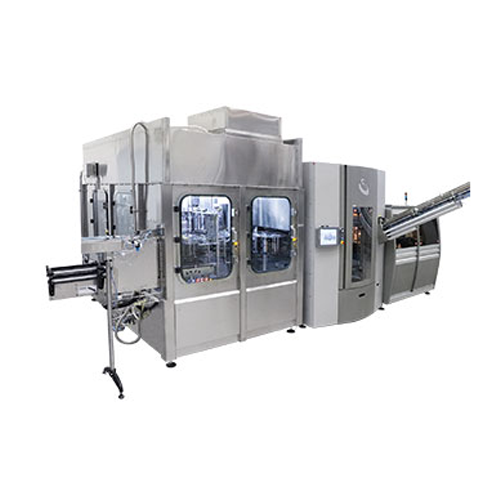

Integrated stretch-blow moulding, filling, and capping system for still liquids

Streamline your bottling process with an all-in-one system that integrates stretch-blow moulding, filling, and capping functions, minimizing contamination risks while maximizing line efficiency and hygiene. Perfect for high-volume production of diverse liquid products in compact spaces.

Integrates Moulding, Filling, and Capping Processes

The ECOBLOC® HEVF Series from SMI Group integrates stretch-blow moulding, filling, and capping into a single system, making it an exceptional choice for beverage and detergent production. This equipment minimizes contamination risks by eliminating the need for separate rinsers and conveyors, enhancing hygiene levels. Suitable for still and carbonated beverages, juices, dairy products, wines, vinegars, syrups, sauces, detergents, and sanitizers, it offers versatile applications. Featuring a modular, compact design, the system supports high-speed, continuous, and automated operations, with customizable configurations to fit diverse production needs. The process begins with preform feeding and heating, where precision infrared lamps ensure optimal heat distribution. The rotary stretch-blow moulding phase uses high-pressure air to shape containers, which are then filled using electronically controlled magnetic flow meters for maximum precision. Capping is performed with options for plastic screw or pressure caps, and filled bottles are seamlessly transferred via neck-handling star wheels to the outfeed conveyor. Additionally, the ECOBLOC® HEVF offers significant energy savings with motorized stretch rods controlled electronically, reducing blowing times by 15% and ensuring precise filling and capping operations.

Benefits

  • Minimizes contamination risks and boosts hygiene by integrating moulding, filling, and capping without intermediaries.
  • Increases production efficiency with continuous, high-speed operation.
  • Achieves precise filling with electronically controlled flow meters, minimizing product waste.
  • Saves energy through motorized stretch rods with optimized control, reducing operational costs.
  • Offers versatile applications across multiple product types using customizable configurations.

General


Applications
Sauces,Still and carbonated beverages,Detergents,Syrups,Iced tea,Sanitizers,Wine and vinegar,Dairy,Juices
End products
Chocolate syrup bottles,Hand sanitizer bottles,Maple syrup bottles,Sparkling water bottles,Pineapple juice bottles,Balsamic vinegar bottles,Lemon iced tea bottles,Laundry detergent bottles,Pear juice bottles,Soy sauce bottles,Fresh milk bottles,Still water bottles,Ketchup bottles,Apple cider vinegar bottles,White wine bottles,Red wine bottles
Steps before
Preforms manufacturing,Preforms feeding,Preforms heating
Steps after
Packing,Palletizing
Input ingredients
PET preforms,rPET preforms,PP containers,still liquids,carbonated liquids,iced tea,clear juice,fresh milk,wine,balsamic vinegar,apple vinegar,thick juice,syrups,soy sauce,detergents,sanitizers
Output ingredients
filled PET bottles,filled rPET bottles,filled PP containers,capped bottles,filled and capped still liquid bottles,filled and capped carbonated liquid bottles,filled and capped iced tea bottles,filled and capped clear juice bottles,filled and capped fresh milk bottles,filled and capped wine bottles,filled and capped balsamic vinegar bottles,filled and capped apple vinegar bottles,filled and capped thick juice bottles,filled and capped syrup bottles,filled and capped soy sauce bottles,filled and capped detergent bottles,filled and capped sanitizer bottles
Market info
SMI Group is known for designing and manufacturing innovative packaging machinery and bottling plants. They provide cutting-edge solutions for ETO equipment, emphasizing flexibility, reliability, and efficiency in serving industries like food, beverage, and consumer goods.

Technical Specifications


Automation
Fully electronic control
Blow molding valve performance
High-performance valves
Cooling system
Liquid-fed and air-fed cooling systems
Energy efficiency
15% reduction in useful blowing time
Filling method
Electronic volumetric filling with flow meters
Filling precision
High precision
Machine integration
Blowing,filling and capping integrated in one machine
Preform heating
Infrared lamps with symmetrical heat distribution
Product range
Still and carbonated water,iced tea,juice,milk,wine,vinegar,syrups,soy sauce,detergents,sanitizers
Speed
Higher speeds due to reduced blowing time
Transfer method
Neck-handling direct transfer by adjoining star wheels
Valves
Optimized circuits for low dead volume
Bottle size range
Various sizes and shapes
Capping method
Screw and pressure caps
Customization
Large possibility of customization

Operating Characteristics


Working Mechanism
Integrated stretch-blow moulding,filling,and capping
Integrated Steps
Stretch-blow moulding,filling,capping
Batch vs Continuous Operation
Inline Continuous
Contamination Control
Minimized due to integration
Automation Level
Fully electronic control
Temperature Control
Preform heating with cooling systems
Energy Efficiency
Significant energy saving features
Changeover Time
Easy and quick format changeover
Filling Precision
Electronic volumetric filling
Compact Frame
Reduces space and costs

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Container size and shape
Variable (PET,rPET,PP containers)
Foaming potential
Depends on liquid
Viscosity
Thin liquids to thick juice
Heat sensitivity
Applicable for heat-sensitive products
Product type
Still liquids,oil,carbonated liquids

Physical Characteristics


Machine Footprint
Compact solution
Frame
Modular,compact frame
Customization Options
Large possibility of customization
Feed/Discharge Method
Direct bottle transfer by neck-handling style with pitch circle diameter
Environment Separation
Perfect separation between “dry” and “wet” environments
Transfer Mechanism
Adjoining star wheels

Custom Options


Control panel type
Fully electronic control
Frame
Modular,compact frame
Separation
Perfect separation between "dry" and "wet" environments
Customization capability
Large possibility of customization
Integration type
Integration of blowing,filling,and capping into a single machine
