Integrated metal detector and checkweigher for small/medium formats

Ensure precise quality control and contaminant-free products while optimizing space and operator efficiency in your high-speed production line with this integrated solution.

Detects Metal Contaminants and Weighs Products

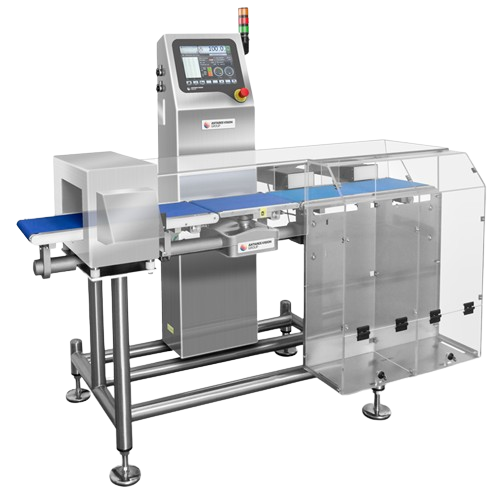

The Compact Combi Metal Detector + Checkweigher from Antares Vision Group is a dual-function inspection system designed for seamless integration into various production lines. This system uniquely combines metal detection and precise checkweighing in a single monoblock unit, optimizing both space and operator interaction. Equipped with a 12” color touchscreen for intuitive control, the system supports multi-frequency and Multi-Spectrum technology, enhancing detection in products with varying properties, including those with light metallized wrappers.

Primarily used in food, beverage, pharmaceuticals, and cosmetics, this equipment ensures the detection of metal contaminants while simultaneously verifying product weight. Handling a wide range of end-products such as processed cheese, canned beverages, and blister-packed tablets, it achieves speeds up to 90 m/min and manages products weighing up to 3200 g with display divisions starting at 0.1 g.

This system meets high standards of automation and integration, complete with data collection software that supports communication with external systems, fulfilling Industry 4.0 criteria. Its robust stainless steel AISI 304 construction provides durability and easy integration into demanding industrial settings, while remote assistance capability reduces downtime and maintenance costs. Compliant with CE, MID, BRC, IFS, and HACCP standards, it guarantees product safety and regulatory compliance across industries.

Benefits

  • Enhances production efficiency by combining metal detection and checkweighing in a single unit, reducing the need for additional equipment.
  • Supports high-speed operations, handling up to 450 pieces per minute, optimizing throughput.
  • Improves product safety and compliance with rigorous standards like CE, MID, BRC, IFS, and HACCP.
  • Reduces maintenance costs and enhances uptime with remote assistance and robust construction.
  • Ensures flexibility and adaptability across different product types with multi-frequency and Multi-Spectrum technology.

General


Applications
Food,Beverages,Rigid containers,Snacks,Pet food,Cosmetics,Sweets,Pharmaceuticals
End products
Dry dog food,Blister-packed tablets,Potato chips bags,Lip balm tubes,Chocolate bars,Canned soda,Processed cheese slices,Glass jars of sauces
Steps before
Production,Material Feeding,Sorting,Initial Quality Check
Steps after
Packaging,Labeling,Final Quality Control,Distribution
Input ingredients
small/medium format products,products with uneven physical characteristics,light metallised wrappers
Output ingredients
products free from metal contaminants,accurately weighed products,inspected products meeting quality standards
Market info
Antares Vision is renowned for providing inspection, track and trace, and quality control systems primarily to the pharmaceutical, food, and beverage industries, ensuring product integrity and supply chain transparency.

Technical Specifications


Control Panel
Colour touchscreen 12”
Data Processing Electronics
RISC Embedded FPGA
Self-learning System and Calibration
Included
Data Collection Software
Included through Ethernet and USB
Kit for Remote Assistance
Included
Linear Speed
up to 90 m/min
Production
up to 450 ppm
Weight Range
up to 3200 g
Display Division
starting from 0.1 g
Protection Degree
IP65
Detector Technology
Multi-frequency and Multi-Spectrum
Compliance Industry 4.0
with Bidirectional Protocol

Operating Characteristics


Automation level
Single operator interface with touch-screen panel
Batch vs. continuous operation
Integrated Batch and Inline Continuous
Energy efficiency
High functioning stability
Cleaning method
Innovative design for easy cleanability
Changeover time
Reduced due to single unit integration
Remote Assistance
Kit for Remote Assistance included
Product Flexibility
Multi-Spectrum technology adapts to various product types

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Container size and shape
Small/Medium Formats


CE marking
Yes
MID metrological approval
Yes
BRC compliance
Yes
IFS compliance
Yes
HACCP compliance
Yes
GMP compliance
Yes

Physical Characteristics


Compact footprint
Integrated monoblock for small/medium formats
Discharge method
Independent eject modules,spliced
Material
Stainless steel AISI 304
Control panel type
12” colour touchscreen
Frame Material
Treated aluminate,hard nickel,anodized
Conveyor Widths
140 mm,140-240 mm,240-320 mm

Custom Options


Control panel type
Touchscreen 12" colour
Integration possibilities
Industry 4.0 compliance,Ethernet and USB connectivity
Remote assistance
Enabled for remote management
