Integrated linear blowing and filling system for Pet containers

Streamline your PET container production with integrated systems that ensure high-speed, hygienic operations while reducing energy and maintenance costs. Perfect for producers aiming to optimize efficiency and flexibility in handling both cold and hot-filled beverages.

Blows, Fills, and Caps PET Containers

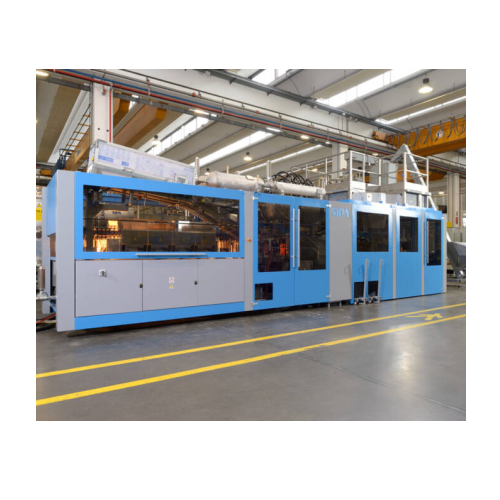

The Sincro Bloc L from SIPA offers an integrated solution for high-speed and hygienic production of PET containers. This compact system seamlessly combines linear blowing, filling, and capping in one streamlined process. Engineered for a wide range of applications, it supports products from mineral water to non-food liquids like detergent. With capabilities reaching up to 12,000 bottles per hour, the Sincro Bloc L is designed for continuous, automated operations with minimal operator intervention. Notable for its hygienic design, the equipment features a short connection between blowing and filling and an over-pressured environment, eliminating the need for air conveyors and rinsers. This results in significant reductions in energy and water consumption. The system’s flexibility allows for bottle sizes up to 20 liters and neck finishes up to 48 mm. Its modular transfer process ensures seamless integration within existing production lines, offering a reduction in downtime and maintenance costs. The fully electric design and integrated CIP/SIP capabilities further enhance its operational efficiency and hygiene, making it an optimal choice for manufacturers seeking both quality and cost-effectiveness in their packaging solutions.

Benefits

  • Enhances production efficiency with integrated blowing, filling, and capping in one system.
  • Reduces operational costs by eliminating air conveyors and rinsers.
  • Maintains high hygienic standards with over-pressured environments and CIP/SIP-ready design.
  • Offers flexibility with quick change-over for diverse bottle sizes and shapes.
  • Minimizes footprint with a compact design that requires only one operator.

General


Applications
Carbonated beverages,Mineral water,Isotonic drinks,Milk,Non-food products,Cold-filled beverages,Alcoholic beverages,Food products,Juice,Tea,Hot-filled sensitive products,Dairy products,Edible oil
End products
Bottled mineral water,Sports drinks,Spirits,Cheese whey drinks,Flavored milk,Beer,Whole milk,Hot-filled fruit beverages,Wine,Sparkling water,Tomato sauce,Fruit juices,Detergent bottles,Olive oil,Iced coffee,Salad dressings,Shampoo bottles,Carbonated soft drinks,Sunflower oil,Iced tea
Steps before
Preform production,Preform treatment,Preform drying
Steps after
Filling,Capping,Labeling,Secondary packaging
Input ingredients
PET preforms,caps,air,water
Output ingredients
filled PET bottles,capped PET bottles,still mineral water bottles,carbonated beverage bottles,juice bottles,tea bottles,isotonic drink bottles,milk bottles,dairy product bottles,edible oil bottles,alcoholic beverage bottles,food product bottles,non-food product bottles
Market info

Technical Specifications


Automation
Fully electric
Capacity
Up to 12,000 bottles/hour
Bottle Size
200 ml to 20L
Neck Finish
26mm to 48mm
Filling Method
Volumetric / Gravity
Output per Cavity
1,800 bottles/hour
Energy Consumption
Reduced energy consumption due to absence of air conveyors
Hygiene Level
High,due to preform treatment and over-pressured environment
Transfer Module
Brushless motor controlled linear transfer unit
Flexibility
Handles bottles of various shapes without body guides
Cap Handling Solutions
Capstream gravitational system
CIP/SIP Operations
Pre-set for CIP/COP/SIP
Blower Output
SFL 4/4 to SFL 6/6 XXL
Operating Flexibility
Can produce standard and hot fill containers
Body Change-over Time
Minimal due to elimination of body guides
Thermal Inertia
Low,for higher heating process consistency

Operating Characteristics


Automation level
PLC-controlled
Batch vs. continuous operation
Inline Continuous
Changeover time
Quick-change-over system
CIP/SIP
Pre-set for CIP/COP/SIP operations
Cleaning method
CIP
Energy efficiency
Reduced energy consumption
Working mechanism
Integrated Blowing/Filling/Capping
Integrated steps
Linear Blowing/Filling/Capping
Operating flexibility
Extreme
Bottle up to 20L
Space saving
Compact footprint
Hygiene
High hygiene level with over-pressured environment

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Suitable for
Still mineral water
Sensitive product handling
Yes

Physical Characteristics


Compact footprint
Reduced footprint
Container size capability
200 ml to 12 liters
Neck finish range
26 mm to 48 mm
Maximum bottle size
20 liters
Operator control
One operator control
Integrated system components
Blowing,filling,capping

Custom Options


Control panel type
HMI with touch screen
Integration possibilities
Blowing/Filling/Capping Integration
Modular design
Expandable with additional units
Custom bottle size capability
200 ml to 20L
Custom neck finish capability
26mm to 48 mm
Operator interface
Single operator control
Cap handling options
Gravitational/Pick and Place
