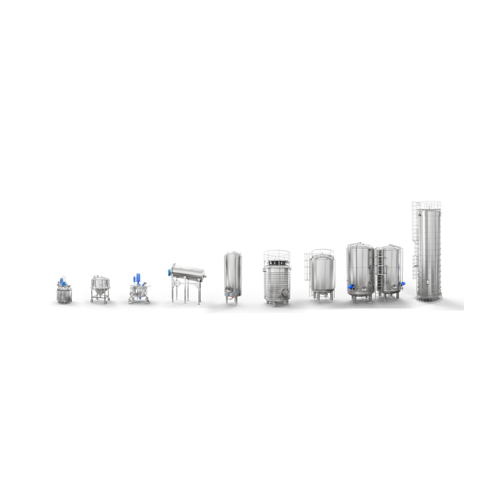

Industrial tanks for diverse applications

Efficiently manage your liquid production processes with customizable storage, mixing, and temperature control capabilities, ensuring optimal conditions and quality for a wide range of liquid end products.

Stores, Mixes, Heats, and Cools Liquid Products

The engineered-to-order tanks from Bucher Unipektin offer customized solutions for optimal storage and mixing across various industries. These tanks excel in managing liquid products such as juice concentrates, craft beer, or pharmaceutical syrups, featuring robust agitators for effective ingredient blending. Designed for flexibility, they support operational success in continuous, manual, or customizable modes. With a capacity of up to 250,000 liters, they accommodate diverse processing needs, seamlessly integrating with existing systems through advanced insulation and heating/cooling jackets. Built from corrosion-resistant materials like 316L stainless steel or Hastelloy, these tanks ensure durability and compliance with industry standards such as PED 2014/68/EU and ASME. Plus, they’re designed for easy cleaning and maintenance, offering features like CIP systems for contamination-free operations. Optional engineering support is available for tailored configurations, enhancing your production line’s efficiency and reliability.

Benefits

  • Enhances production flexibility with customizable configurations to meet specific industry requirements.
  • Increases processing efficiency through precise temperature control and effective mixing capabilities.
  • Ensures long-term durability and compliance with corrosion-resistant materials and certified construction standards.
  • Simplifies maintenance with easy-to-clean designs and integrated CIP systems.
  • Supports energy efficiency to reduce operational costs with optimized heating and cooling systems.

General


Applications
Fruit and vegetable,Beverage,Confectionery,Chemical products,Cosmetics,Brewing and alcohol,Pharmaceutical products,Dairy
End products
Fermented vegetable beverages,Craft beer,Chocolate syrup,Liquid foundation,Detergents,Whiskey,Hair conditioners,Cough syrup,Juice concentrates,Milk powder,Face cream,Yogurt
Steps before
Mixing,Heating,Cleaning,Ingredient preparation,Material loading
Steps after
Cooling,Storage,Inspection,Distribution,Packaging
Input ingredients
beverage,fruit,vegetable,brewing ingredients,alcohol,dairy,confectionery,pharmaceutical materials,chemical materials,cosmetic materials
Output ingredients
processed beverage,processed fruit,processed vegetable,brewed products,alcohol products,dairy products,confectionery products,pharmaceutical products,chemical products,cosmetic products
Market info
Bucher Unipektin is known for producing advanced equipment and systems for the food and beverage industry, specializing in juice processing and filtration technologies with a reputation for innovative solutions and reliable, high-quality products.

Technical Specifications


Material
304 (1.4301),304L (1.4307),316Ti (1.4571),316L (1.4404,1.4435),904L (1.4359),Hastelloy,Duplex
Surface Finish
2B/IIIc,2R/IIId,1D/IIa,pickled,grounded,polished,glass-blasted,electropolished
Bottom Type
Ellipsoidal,toroidal,conical (30°,45°,60°),flat
Foundation Type
Support foot,skirt,support ring
Layout
Vertical or horizontal
Heating/Cooling Jacket
Pillow-plate,double-jacket,half-pipe,electric cable,external coil,internal coil
Insulation
Mineral wool,PUR/PIR foam,perlite,rubber
Insulation Sheathing
Stainless steel sheet tightly welded,riveted/screwed stainless steel sheet,riveted/screwed coated trapezoidal sheet,riveted/screwed aluminium sheet
Agitators
Top-mounted,side-mounted,bottom-mounted
Agitator Types
Frame with scrapers,propeller,ribbon,bottom
Access Elements
Technical and access ladders,communication and service platforms,safety barriers
Maximum Diameter (Factory)
4200mm
Capacity (Factory)
Up to 250,000 l
Wall Thickness (Factory)
Up to 15mm
Maximum Height/Length (Factory)
Up to 25,000mm
Maximum Weight
Up to 25t
Unlimited Diameter (On-site)
Coil expanded,construction from sheet
Capacity (On-site)
Up to 5,000,000 l
Wall Thickness (On-site)
Up to 15mm
Height/Length Limit (On-site)
Limit of the crane used in the construction of the tank

Operating Characteristics


Batch vs. continuous operation
Batch / Inline Continuous
CIP/SIP
CIP 121°C / SIP 135°C
Energy efficiency
0.5–2 kWh/kg moisture


PED
2014/68/EU

Physical Characteristics


Tank shape
Ellipsoidal,Toroidal,Conical,Flat
Diameter
Maximum 4200 mm
Height/Length
Up to 25,000 mm
Weight
Up to 25 t
Capacity
Up to 250,000 L
Wall Thickness
Up to 15 mm
Layout
Vertical or Horizontal
Foundation Type
Support foot,skirt,support ring

Custom Options


Design Options
Dedicated,tailored solutions
Material Type
304,304L,316Ti,316L,904L,Hastelloy,Duplex
Surface Finish
2B/IIIc,2R/IIId,1D/IIa,pickled,grounded,polished,glas-blasted,electropolished
Bottom Types
Ellipsoidal,Toroidal,Conical (30°,45°,60°),Flat
Foundation Types
Support Foot,Skirt,Support Ring
Layout
Vertical,Horizontal
Heating/Cooling Jacket
Pillow-plate,Double-jacket,Half-pipe,Electric Cable,External Coil,Internal Coil
Insulation
Mineral Wool,PUR/PIR Foam,Perlite,Rubber
Insulation Sheathing
Stainless Steel Sheet,Riveted/Screwed Coated Trapezoidal Sheet,Aluminium Sheet
Agitators
Top-mounted,Side-mounted,Bottom-mounted
Agitator Types
Frame with Scrapers,Propeller,Ribbon,Bottom
Access Elements
Technical and Access Ladders,Communication and Service Platforms,Safety Barriers
