Industrial stativ mixer with adjustable height
Achieve precise mixing and stirring across diverse batches with a mobile, adjustable-height solution designed for maximum flexibility and efficiency—ideal for processes requiring variable container sizes and seamless operation within your production line.
Facilitates Mobile Mixing Across Diverse Containers

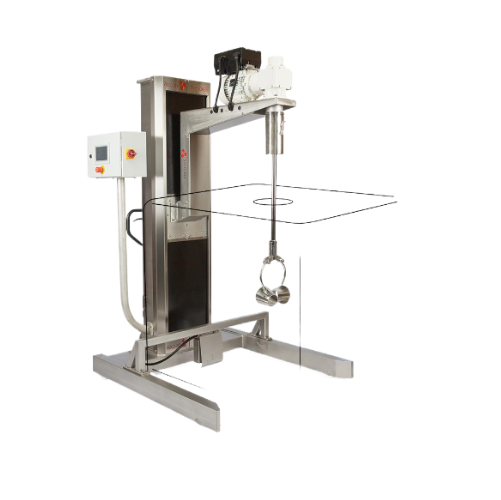

The VISCO JET VJ480 from VISCO JET Rührsysteme GmbH is a versatile mobile stativ-rührwerk designed to meet the diverse mixing needs of industries such as cosmetics, food, pharmaceuticals, and chemicals. Its flexible manual hubhöhenverstellung offers a 1,200 mm lift, allowing seamless adaptation to various container sizes like 1,000 L IBCs and 200 L drums, crucial for efficient batch processing at multiple locations. Offering motor variants from 1.5 to 3 kW, the VJ480 supports variable-frequency drive for precise speed control, optimizing energy usage and enhancing process efficiency. Built from high-grade stainless steel for superior corrosion resistance, it ensures a safe and clean operation with an integrated cable system and easy-to-clean design. Safety is enhanced through features like work position detection and container recognition, while optional ATEX compliance allows for safe use in hazardous zones. Tailored configurations and optional features such as quick-change couplings and ultrasonic sensors offer further adaptability, making it ideal for mixing liquid and slurry products.
Benefits
- Enhances operational flexibility with mobile design for various container sizes.
- Improves safety with integrated detection and validation features before operation.
- Saves energy through efficient motor control and variable-speed settings.
- Minimizes maintenance downtime with easy-to-clean, corrosion-resistant construction.
- Provides customization options for tailored mixing solutions and hazardous zone applications.
- Applications
- Chemicals, Paints and coatings, Food and beverages, Sweets, Petrochemicals, Paper manufacturing, Mining, Cosmetics and soaps, Dairy products, Pharmaceuticals
- End products
- Chocolate fillings, Face creams, Mining slurries, Active pharmaceutical ingredients (apis), Shampoos, Latex paints, Specialty papers, Fertilizers, Adhesives, Emulsions, Lubricants, Creamy sauces, Yogurt, Syrups, Beverage concentrates, Liquid soaps
- Steps before
- Mixing preparation, Container positioning, Transport
- Steps after
- Filling, Quality control, Cleaning, Packaging
- Input ingredients
- Output ingredients
- Market info
- Visco Jet Ruhrsysteme is known for manufacturing advanced mixing and stirring equipment, particularly industrial agitators, which are engineered-to-order for various industries. Their expertise lies in efficient and tailored mixing solutions with a strong reputation for innovation and quality.
- Automation
- Manual Hub Adjustment
- Antriebsleistung (Drive Power)
- 1.5 – 3.0 kW
- Drehzahlregelung (Speed Control)
- Über Frequenzumrichter (via frequency converter)
- Spannungsversorgung (Voltage Supply)
- 400 V / 50 Hz
- Höhe bei vollständiger Hubeinstellung (Height at full lift)
- 2, 700 mm
- Hubhöhe (Lift Height)
- 1, 200 mm
- Hubeinrichtung (Lift Mechanism)
- Manuelle Profilschienenführung
- Gabelstand Innen (Fork Stand Inside)
- 1, 100 mm
- Gabelstand Außen (Fork Stand Outside)
- 1, 260 mm
- Material des Stativs (Stand Material)
- Edelstahl 1.4301
- Material der Rühreinheit (Agitator Material)
- Edelstahl 1.4301/1.4404/1.4571
- Optionale ATEX Ausführung (Optional ATEX Version)
- Zone 0 bzw. 21
- Sicherheitsfunktionen (Safety Features)
- Arbeitspositionsschalter, Behältererkennung
- Innenliegende Kabelführung (Internal Cable Management)
- Yes
- Plug,Play Lösung (Plug,Play Solution)
- Yes
- Automation level
- Manual / PLC
- Batch vs. continuous operation
- Batch
- CIP/SIP
- Manual cleaning / Quick, easy cleaning
- Cleaning method
- Manual
- Energy efficiency
- Low due to drive options
- Changeover time
- Quick hub and stirrer changes
- Flexibility
- Mobile and height adjustable
- Mobility
- Highly mobile with trolley system
- Safety features
- Operational safety switches and tank detection
- Cleanability
- High
- Corrosive resistance (e.g. acids)
- Yes
- Density/particle size
- 1.0–1.5 g/cm³
- Container type
- IBC, Drums, Custom Stainless Steel Tubs
- ATEX certification
- Zone 0/1/21
- Machine footprint
- Varies, max height in mobile state 2, 155 mm
- Discharge method
- N/A
- Control panel type
- Integrable with frequency inverter for speed control
- Compact footprint
- Yes
- Tank/container compatibility
- 1, 000L IBCs, 200L plastic drums, and custom steel containers
- Configuration
- Mobile stative mixer
- Mobility
- Mobile with hydraulic lift trolley
- Maximum lift height
- 1, 200 mm
- Material
- Stainless steel 1.4301
- Frame material
- Lacquered steel
- Wheel material
- Plastic
- Height range
- 1, 773 mm to 2, 700 mm (depending on lift)
- Handle type
- Manual handle with profile rail guide and counterweight
- Hub height adjustment
- Manual, 1, 200 mm
- Antriebsvarianten
- 1.5–3 kW
- Rührorganlösungen
- Kombinierbar mit allen VISCO JET, reg
- Rührorganen
- ATEX Ausführung
- Zone 0 oder 21
- Frequenzumrichter
- Individuelle Drehzahlregelung
- Sicherheitskategorie
- SIL3
- Deckelkonstruktion
- Individuelle oder standardisiert für Spritzschutz
- Behälterklemmung
- Spannbandlösung für leichte/kleine Behälter
- Gabelstand Abmessungen
- Individuell anpassbar
- Steuerungsvarianten
- Verschiedene, mit Sicherheitskategorie SIL3
