Industrial powder milling solution

Achieve precise particle size control and improve material flowability with this advanced milling technology, crucial for optimizing tablet dissolution and enhancing absorption rates in continuous or batch processing environments.

Reduces Particle Size and Compacts Materials

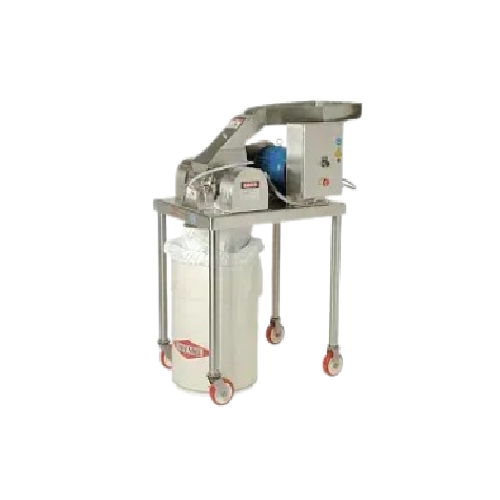

The Fitzpatrick M5A, D6A, DASO6, DKASO12 Hammer Mills, and SDx™ Series Scalable Lab System offer precise control over particle size reduction and material compaction. Utilizing mechanical ‘in-air’ impact forces, these hammer mills ensure consistent particle size distribution, essential for pharmaceuticals, nutraceuticals, food, chemical, and cannabis industries. Capable of both batch and continuous operations, they provide versatility for various production settings, from lab to high-speed industrial environments. The design allows for customization in rotor speeds and screen geometries, ensuring compatibility with different material characteristics and process requirements. Certified to adhere to GMP and FDA standards, these systems integrate seamlessly into existing production lines and feature reversible blades for efficient granulation. Easy to maintain with CIP systems, they support effective and contamination-free cleaning. Available in robust material options to prevent corrosion, Fitzpatrick’s equipment guarantees durability in demanding application conditions.

Benefits

  • Ensures precise particle size control, enhancing product quality and consistency.
  • Reduces operating costs with customizable rotor speeds for energy efficiency.
  • Seamlessly integrates into existing production lines, minimizing downtime.
  • Complies with GMP and FDA standards, supporting regulatory compliance.
  • Adaptable to diverse processing needs, from lab-scale to full-scale production.

General


Applications
Food,Pharma,Chemical,Nutraceutical,Cannabis
End products
Detergent powders,Cosmetic powders,Spice blends,Protein powders,Tablets,Cannabis extracts,Fertilizers,Dietary supplements
Steps before
Dry Granulation,Emulsification,Grinding
Steps after
Packing,Coating,Tablet Pressing
Input ingredients
bulky raw materials,pharmaceutical ingredients,nutraceutical ingredients,food ingredients,chemical substances,cannabis
Output ingredients
uniform particles,smaller particle size distributions (PSDs),enhanced dissolution tablet particles,improved bulk density particles,particles with improved flowability,reactive particles,compactable particles
Market info
The Fitzpatrick Company is known for its expertise in designing and manufacturing particle processing equipment, specializing in dry granulation, roll compaction, and size reduction technologies, earning a strong reputation for quality and innovation in the pharmaceutical and industrial sectors.

Technical Specifications


Rotor Speed
Adjustable
Screen Size,Geometry
Variable
Particle Size Distribution (PSD)
Precise Control
Feed Throat Angle
Vertical/Horizontal
Blade Type
Knife-edged/Blunt-edged
Automation
Control system
Material Reduction
Hammer Milling

Operating Characteristics


Working mechanism
In-air impact forces
Particle size control
Screen size,geometry,rotor speed
Blade types
Knife-edged / Blunt-edged
Feed throat angle
Vertical / Horizontal
Changeover adaptability
Adjustable rotor speed and screen design
Batch vs. continuous operation
Batch
Automation level
Manual / PLC Controlled

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Blade type
Knife-edged / Blunt-edged / Reversible
Discharge method
Screen-controlled
Feed method
Vertical / Horizontal inlet
Screen size,geometry
Varies with application needs
Rotor speed adjustability
Variable

Custom Options


Blade type
Knife-edged / Blunt-edged / Reversible edges
Screen type
Various screen designs
Control panel
Customizable based on integration needs
Feed throat design
Vertical / Horizontal
