Industrial mixer for food and pet food production
Achieve precise and efficient mixing of viscous to highly viscous products, facilitating seamless integration into your production line to enhance product quality and reduce production times.
Mixes and Massages Viscous Products Efficiently

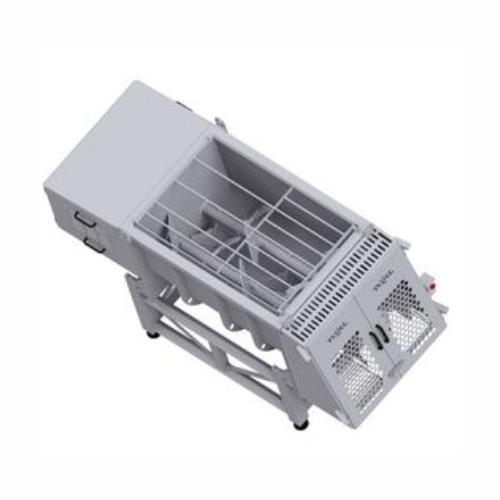

The Handtmann Inotec IM mixer is engineered for food and pet food manufacturers seeking precise mixing capabilities across diverse applications. This equipment uses dual-shaft technology to ensure fast, homogeneous mixing of viscous to highly viscous substances. Ideal for applications ranging from sausage and dairy to confectionery and vegan products, the IM mixer offers volume options from 50 to 6,000 liters, making it suitable for both small-scale and industrial producers. Integrating seamlessly into existing production lines or functioning independently, it features flexible shaft configurations—whether paddle, spiral, or screw—to accommodate different product types. Real-time process control allows for customized mixing intensity, enhancing energy efficiency and ensuring product consistency. With options for heating, cooling, and ingredient addition during operation, the IM mixer supports varied processing needs. Its hygienic design and user-friendly interface simplify cleaning and maintenance, while customizable process parameters ensure optimal product texture and quality.
Benefits
- Ensures product quality and consistency with customizable mixing intensity for various product viscosities.
- Decreases production time with rapid and efficient mixing cycles.
- Flexible integration into existing systems reduces setup costs and enhances process scalability.
- Enhances product safety and hygiene with a closed system design.
- Facilitates versatile processing options with heating, cooling, and ingredient addition capabilities.
- Applications
- Sausage and meat products,Pet food,Confectionery,Non-food,Meat substitute products,Fish and seafood,Vegetable and fruit products,Potato and vegetable products,Dairy products
- End products
- Chocolate truffles,Soap base,Cheese spreads,Apple puree,Mashed potatoes,Sausage links,Soy-based patties,Wet dog food,Fish sticks
- Steps before
- Grinding,Product Preparation,Ingredient Additions
- Steps after
- Filling,Portioning,Product Cooling,Packaging,Dosing
- Input ingredients
- viscous products,highly viscous products,meat products,meat substitute,dairy products,confectionery products,vegan products,vegetarian products,baby food,pet food,minced meat,cheese product,vegetable and fruit products,liquids,dry substances
- Output ingredients
- mixing products,homogeneous mixtures,processed food products,processed pet food
- Market info
- Handtmann is known for its engineering expertise in providing high-quality, tailor-made processing solutions, particularly in the food industry, with a strong reputation for innovation, reliability, and technical support in portioning and filling equipment.
- Usable volume
- 50 to 6,000 litres
- Control type
- 15.6" touch control
- Voltage
- 400 V/50 Hz
- Mixing configuration
- Paddle,spiral,or screw shafts
- Mixing intensity
- Gentle to intensive
- Temperature control
- Heating/Cooling by injection or double jacket
- Process control
- Integrated process control
- Load cells
- Yes
- Mixing directions
- Adjustable
- Emptying method
- Outlet flaps
- Mixing Mechanism
- Paddle,Spiral,Screw Shafts
- Automation Level
- Integrated Process Control
- Heating/Cooling Options
- Direct Injection / Double Jacket
- Batch vs. Continuous Operation
- Batch
- Emptying Method
- Outlet Flaps
- Volume Capacity
- 50 to 6,000 litres
- Mixing Intensity
- Gentle to Intensive
- User Interface
- 15.6“ Touch Control
- Biological compatibility
- Yes
- Cleanability
- High
- Abrasion resistance
- Yes
- Corrosive resistance (e.g. acids)
- Yes
- Density/particle size
- 0.5–2.5 g/cm³ / 50–1000 µm
- Hygienic Design Compliance
- EHEDG
- Usable volume
- 50 to 6,000 litres
- Control panel type
- 15.6“ touch control
- Voltage
- 400 V/50 Hz
- Discharge method
- Outlet flaps
- Configuration
- Paddle,spiral,screw shafts
- Control panel type
- 15.6" touch control
- Integration possibilities
- Stand-alone or inline integration
- Mixing shaft configuration
- Paddle,spiral,or screw shafts
- Mixing process control
- Individually adaptable
- Heating or cooling option
- Injection or double jacket
- Additional connections
- Liquids and dry substances addition
- Mixing volume
- 50 to 6,000 litres
