Industrial container mixing system for high viscosity media

Effortlessly blend high-viscosity liquids and slurries with precision, optimizing your production processes to accommodate diverse batch sizes in dynamic manufacturing environments.

Mixes High-Viscosity Liquids and Slurries

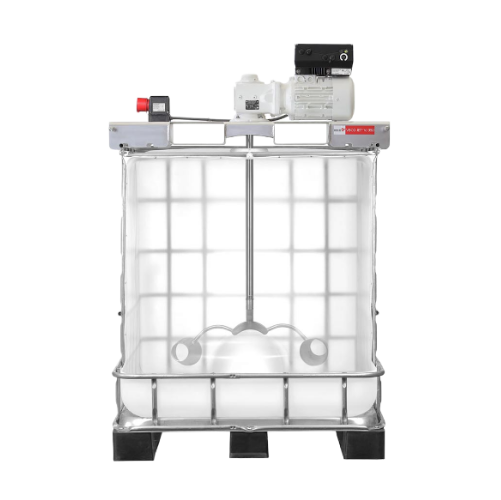

The VISCO JET® VJ350 by VISCO JET® is an industrial-grade IBC mixer designed for the efficient and flexible processing of high-viscosity liquids and slurries. This mixer excels in diverse sectors, addressing the specific demands of industries such as pharmaceuticals, petrochemicals, and cosmetics by simplifying the integration and optimizing the mixing process.

Featuring the unique Tornado Rührorgan, this mixer effectively handles viscosities up to 30,000 mPas, thanks to a robust design allowing usage through all IBC openings from DN 150 mm. The VJ350 adapts to various batch processing requirements with drive options ranging from 0.55 kW to 3.0 kW, ensuring an energy-efficient operation enhanced by user-controlled speed adjustments via an integrated frequency converter.

Constructed from durable materials such as stainless steel or aluminum with portable features, the VJ350 promises a consistent and contamination-free operation especially important in ATEX environments. This flexibility extends to material compatibility with optional polished finishes for seamless cleaning and maintenance.

With options for bespoke engineering adjustments, including pneumatic drive for ATEX zones and diverse stirring components for specific tasks, the VJ350 is an ideal choice for enterprises seeking reliable and adaptable mixing solutions.

Benefits

  • Enhances operational efficiency by accommodating high-viscosity fluids up to 30,000 mPas.
  • Minimizes energy costs with customizable drive power and variable-speed control.
  • Ensures safety and compliance in ATEX zones, reducing operational risks.
  • Facilitates seamless cleaning with hygienic design and material options.
  • Increases production adaptability with modular components and engineering customization.

General


Applications
Chemicals,Paints and coatings,Ceramics,Dairy products,Food and beverages,Sweets,Petrochemicals,Mining,Cosmetics and soaps,Paper manufacturing,Pharmaceuticals
End products
Chocolate truffles,Acrylic paint,Porcelain tiles,Cheese,Solvents,Corrugated cardboard,Lubricants,Carbonated soft drinks,Iron ore slurry,Capsules,Lipstick
Steps before
Mixing,Material Loading,Ingredient Combining
Steps after
Quality Control,Discharge,Cleaning
Input ingredients
Kunststoff-IBC,Medien mit Viskosität bis 30,000 mPas,Intermediate Bulk Container (IBC)
Output ingredients
Gerührte Medien
Market info
Visco Jet Ruhrsysteme is known for manufacturing advanced mixing and stirring equipment, particularly industrial agitators, which are engineered-to-order for various industries. Their expertise lies in efficient and tailored mixing solutions with a strong reputation for innovation and quality.

Technical Specifications


Antriebsleistungen
0,55 – 3,0 kW
Spannungsversorgung
400 V / 50 Hz,230 V Anschluss verfügbar
Rührorgan Durchmesser
500 mm bzw. 650 mm
Viskosität
Bis zu 30.000 mPas
Rührorgan Typ
CLASSIC,SPIRAL,CRACK oder CUE
Frequenzumrichter
Individuelle Drehzahlregelung
Tragkonstruktion
Stahlrahmen mit Edelstahl Traverse
Material
Edelstahl 1.4404/1.4571
Schaltersatz
VJ805 mit NOT-AUS und Ein/Ausschalter
Compliance
ATEX Ausführung verfügbar

Operating Characteristics


Automation level
Intuitive and comfortable
Batch vs. continuous operation
Batch
CIP/SIP
Easy cleaning
Energy efficiency
Low drive power
Cleaning method
Manual
Changeover time
Quick with easy setup
Air incorporation control
Yes

Material Compatibility


Cleanability
High,due to stainless steel construction
Corrosive resistance (e.g. acids)
Stainless steel (1.4404/1.4571)
Density/particle size
Handles up to 30,000 mPas viscosity


Machinery Safety Directive
2006/42/EU
Electromagnetic Compatibility Directive
2014/30/EU
Low Voltage Directive
2014/35/EU
ATEX Certification
RL2014/34/EU

Physical Characteristics


Container size compatibility
600 - 1,000 Liters
Output opening size
DN 150 mm
Rührorgan diameter
500 mm / 650 mm
Material
Stainless Steel / Aluminium

Custom Options


Antriebsleistung
0,55-3,0 kW
Spannungsversorgung
400 V / 50 Hz,230 V
Material
Edelstahl oder Aluminium
Rührorgane
CLASSIC,SPIRAL,CRACK oder CUE
Ausführungen
Standard oder mit individuellen Anpassungen
Frequenzumrichter
Zur individuellen Drehzahlregelung
ATEX Bereich
Zone 0 oder 1
Rührzeiteinstellung
Mit Schaltersatz inkl. Ein-/Ausschalter
Montage
Mit oder ohne Staplertaschen
Rührorgan Ausführung
Klappbares Rührorgan
Kabelaufhängung
Oder automatischer Kabelaufroller
Transportsicherung
Zur Anbringung am Gabelstapler
