Industrial cocoa nib grinder for bean to bar production

Streamline your chocolate production with this versatile grinder, transforming cocoa nibs into fine mass or paste, ideal for creating rich chocolate products and refined nut pastes.

Grinds and Refines Cocoa Nibs and Nuts

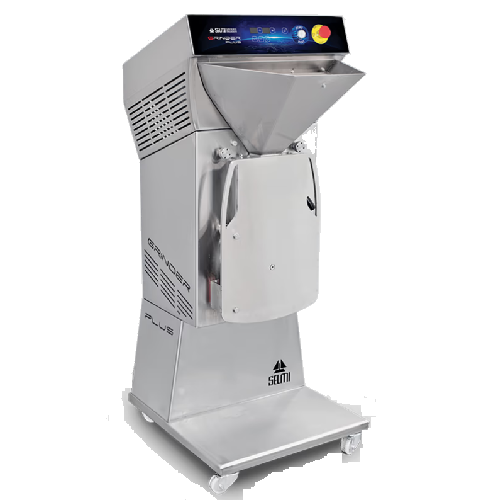

The Grinder Plus from Selmi Group is a versatile grinding machine essential for chocolate production. Utilizing stainless steel pins and roller crushers, it efficiently processes cocoa nibs into a smooth mass and refines dried nuts into pastes. With a compact design, it fits medium to large laboratories, chocolatiers, and patisseries. Its production capability of 35-40 kg per hour ensures high throughput for continuous operations. The machine features a 15 kg hopper, adjustable roller settings, and is constructed from durable stainless steel for corrosion resistance. Its integration into existing production lines increases efficiency, while ease of use and maintenance minimizes downtime.

Benefits

  • Enhances production efficiency by refining up to 40 kg of material per hour.
  • Reduces operational costs with durable stainless steel construction, minimizing maintenance.
  • Compact design optimizes space usage in medium to large scale operations.
  • Versatile processing capabilities allow for seamless integration of cocoa and nut paste production.
  • Simplifies production lines with easy maintenance and user-friendly operation.

General


Applications
Cocoa products,Snacks,Sweets,Spreadable creams,Dried nuts,Chocolate
End products
Ground cocoa nibs,Spreadable chocolate cream,Chocolate paste,Refined dried fruit paste,Nut paste,Cocoa mass
Steps before
Roasting,Crushing,Winnowing
Steps after
Refining,Conching,Tempering,Moulding,Enrobing,Packaging
Input ingredients
cocoa beans nibs,dried fruit,dried nuts
Output ingredients
cocoa paste,pre-refined cocoa mass
Market info
Selmi is renowned for manufacturing high-quality chocolate processing equipment, such as tempering, enrobing, and cooling machines, with a strong reputation for precision, innovation, and reliability in the confectionery and chocolate industry.

Technical Specifications


Capacity
15 kg
Hourly production rate
35/40 kg
Power required
4 Kw - 16 A - 3 poles
Electrical specification
220 V single phase - 50 Hz
Dimensions
620x710x1460 mm
Particle Size
100 to 300 microns
Material
Stainless steel

Operating Characteristics


Working mechanism
Stainless steel pins and rollers crushing
Batch vs. continuous operation
Batch
Automation level
Manual
Cleaning method
Manual

Material Compatibility


Abrasion resistance
High
Biological compatibility
FDA-approved materials
Cleanability
Easy to clean
Corrosive resistance (e.g. acids)
Stainless steel construction
Density/particle size
100–300 microns

Physical Characteristics


Compact footprint
620x710x1460 mm
Discharge method
Stainless steel roller crushers
Hopper size
15 kg
Material
Stainless steel pins
Max. capacity
15 kg

Custom Options


Hopper Capacity
15 kg (dried fruit,beans)
Material of Construction
Stainless Steel
Integration with Bean to Bar Line
Yes
Dimensional Specifications
620x710x1460 mm (LxWxH)
Power Specification
220 V single phase,4 Kw
Operational Capacity Range
35/40 kg hourly production
