Hyper-clean electronic volumetric filler for Pet bottles

Enhance your liquid filling operations with precision and hygiene, utilizing advanced flow meters to ensure accurate volume control across diverse products from beverages to cleaning agents, all while maintaining high-speed efficiency and seamless integration into existing production lines.

Accurately Fills and Caps Liquid Products

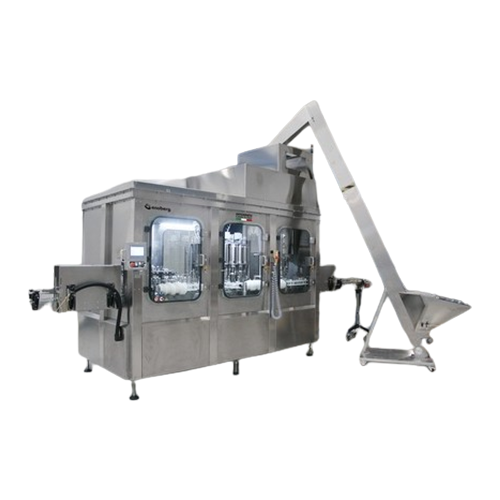

The HEVF Series from Enoberg, part of the SMI Group, is a hyper-clean electronic volumetric filling system designed to precisely fill and cap a wide variety of liquids, from still and carbonated beverages to dairy and cleaning products. This system employs magnetic flow meters for each valve, ensuring maximum filling precision by monitoring product flow and sending closure signals promptly. It integrates smoothly with existing production lines, featuring seamless bottle transfer and capping via electronically synchronized star wheels.

Ideal for food and beverage, dairy, and household chemicals industries, the HEVF Series processes still water, carbonated drinks, juices, wines, and even viscous liquids like syrups and sauces. Designed for high-speed continuous operations, it facilitates quick format changeovers via an intuitive HMI touchscreen.

Engineered with a 304 stainless steel frame and 316 stainless steel filling valves, the HEVF Series ensures durability and resistance to corrosion. The equipment’s hygiene is enhanced by its isolated filling environment and airlock-protected electronic components, allowing for efficient COP cleaning.

Transportable inside a 40′ high cube container due to its compact structure, this equipment not only simplifies logistics but also significantly reduces spatial requirements on the plant floor. Customizable valve terminals enable the filling of a broad range of liquids, tailoring the system to your production needs.

Benefits

  • Ensures precise product volumes, reducing waste and overfill costs.
  • Minimizes contamination risk with fully isolated filling environment.
  • Facilitates seamless integration with existing lines, boosting operational efficiency.
  • Adapts quickly to product changes, minimizing downtime with fast format changeovers.
  • Maintains product quality with high hygiene standards and easy-to-clean design.

General


Applications
Beverages,Liquid condiments,Vinegars,Wines,Cleaning products,Juices,Dairy products
End products
Detergents,Apple vinegar,Pear juice,Pineapple juice,Iced tea,Carbonated water,Still water,Balsamic vinegar,Soy sauce,Sanitizers,Syrups,Fresh milk
Steps before
Bottle manufacturing,Stretch-blow moulding,Empty bottle transfer
Steps after
Capping,Outfeed conveyor,Packing
Input ingredients
still water,carbonated water,iced tea,clear juice,fresh milk,wine,balsamic vinegar,apple vinegar,thick juice,syrups,soy sauce,detergents,sanitizers,empty bottles
Output ingredients
filled bottles,capped bottles
Market info
SMI Group is known for designing and manufacturing innovative packaging machinery and bottling plants. They provide cutting-edge solutions for ETO equipment, emphasizing flexibility, reliability, and efficiency in serving industries like food, beverage, and consumer goods.

Technical Specifications


Filling accuracy
High precision
Filling method
Volumetric electronic
Filling speed
Variable speed control
Automation
PLC-controlled with HMI interaction
Container type
PET/rPET bottles
Cap type
Screw / Press
Filling volume
Adjustable depending on bottle size
Cleaning method
CIP compatible
Frame material
AISI 304 stainless steel
Filling valve material
AISI 316 stainless steel
Cooling option
N/A
Energy usage
Efficient with energy saving features

Operating Characteristics


Automation level
PLC / SCADA
Batch vs. continuous operation
Inline Continuous
CIP/SIP
CIP
Changeover time
Quick format changeover
Cleaning method
CIP
Filling precision
High precision due to flow meter
Cleaning capability
Fully sanitizable with dummy bottles
Flow meter technology
Magnetic flow meters
Filling speed control
Efficient control of two speeds
HMI control
7'' HMI touch screen

Product type Characteristics


Container type
PET / rPET bottles
Filling purpose
Still and carbonated beverages,juices,milk,vinegar,sauces,detergents
Product viscosity
Thin to thick liquids
Foaming
Non-foaming
Heat sensitivity
Room temperature filling
Container size
Broad range adaptability

Physical Characteristics


Machine footprint
Compact
Frame material
AISI 304 stainless steel
Filling valve material
AISI 316 stainless steel
Control panel type
7'' HMI touch screen (15'' available as an option)
Bottle transfer method
Neck-handling direct transfer
Safety guards
Tempered glass safety guards
Manifold material
Ceramic

Custom Options


Control Panel Type
HMI 7'' touch screen
Control Panel Type
HMI 15'' touch screen (optional)
Filling Valve
Fully made of AISI 316
Filling Valve Maintenance
Easy maintenance
Dummy Bottles
Manual or automatic insertion
Format Changeover
Quick format changeover
Bottle Guide Parameters
Directly controlled through HMI
Filling Speeds
Efficient control of two filling speeds
