Hygienic industrial grinder for food and pharma applications

Achieve optimal hygiene and efficiency in your grinding processes with a robust hammer mill designed for seamless integration in demanding production lines, ensuring quick maintenance and adaptability to diverse material specifications.

Grinds and Mills Powders and Granules

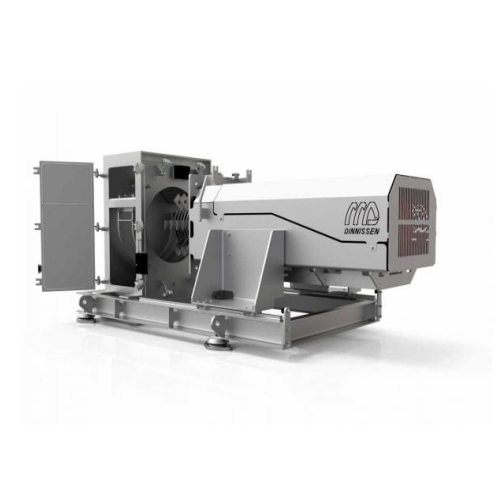

The Dinnox® Hammer Mill from Dinnissen is a stainless-steel grinder designed for hygiene-critical sectors such as food, pharma, and chemicals. It features a one-sided bearing structure, enabling easy rotor removal for efficient cleaning and maintenance. With variable rotor speed, it allows precise control over particle size, achieving fineness from 150 microns to 3 mm. Capable of processing up to 6000 kg per hour, it integrates seamlessly into continuous production lines. The hammer mill operates using high-speed percussion hammers, crushing material against internal plates to produce fine powders and granules. Designed for rigorous cleaning requirements, its materials conform to EHEDG guidelines, making it ideal for processes involving wet cleaning. Customization options and engineering support are available to optimize integration and performance in your production line.

Benefits

  • Enhances operational efficiency by facilitating easy cleaning and maintenance, reducing downtime.
  • Ensures precise product quality with adjustable particle size control.
  • Complies with strict hygiene standards, supporting safe food and pharmaceutical production.
  • Maximizes processing capacity up to 6000 kg per hour for high throughput operations.
  • Accommodates versatile grinding needs with customizable configurations and flexible rotor speed.

General


Applications
Food,Chemicals,Feed,Pet food,Pharma,Minerals,Aquafeed
End products
Dog biscuits,Protein powders,Chicken feed,Nutritional supplements,Silica powder,Cat kibble,Fish meal,Calcium carbonate
Steps before
Intake,Conveying,Feeding,Weighing
Steps after
Sifting,Screening,Mixing,Packaging,Filling
Input ingredients
food ingredients,pharmaceutical powders,pet food ingredients,feed materials,aquafeed components,chemical compounds,minerals
Output ingredients
fine powders,ground food products,processed pharmaceutical powders,pet food ground materials,feed powder,aquafeed powder,processed chemicals,milled minerals
Market info
Dinnissen is renowned for its expertise in process technology, specializing in innovative solutions for powder handling, mixing, and bulk materials processing for various industries, including food, feed, and chemicals, with a reputation for quality and custom engineered solutions.

Technical Specifications


Capacity
30–6000 kg/h
Final Fineness
150 microns - 3 mm
Variable Rotor Speed
Yes
Material
Stainless Steel
Compliance
EHEDG guidelines

Operating Characteristics


Working mechanism
Percussion hammers,centrifugal force
Integrated steps
Cleaning,inspection,component change
Variable rotor speed
Adjustable
Batch vs. continuous operation
Batch Operation
CIP/SIP capability
Manual / Wet cleaning
Cleaning method
One-sided bearing for easy access
Energy efficiency
Improved productive performance
Inspection and maintenance ease
Quick part replacement

Material Compatibility


Cleanability
Stainless steel,easy to clean
Corrosive resistance (e.g. acids)
Yes
Biological compatibility
Suitable for food-grade materials

Physical Characteristics


Material
Stainless Steel
Design
Compact
Rotor Speed
Variable
Bearing
One-sided
Capacity
30-6000 kg/h
Fineness Range
150 microns - 3 mm

Custom Options


Rotor Speed
Variable
Final Fineness Range
150 microns - 3 mm
Capacity Range
30 - 6000 kg per hour
Rotor Accessibility
One-sided bearing for easy access
Sifting Plates
Quick-change capability
Testing Possibility
Available in test facility
Material Construction
Stainless Steel
